Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

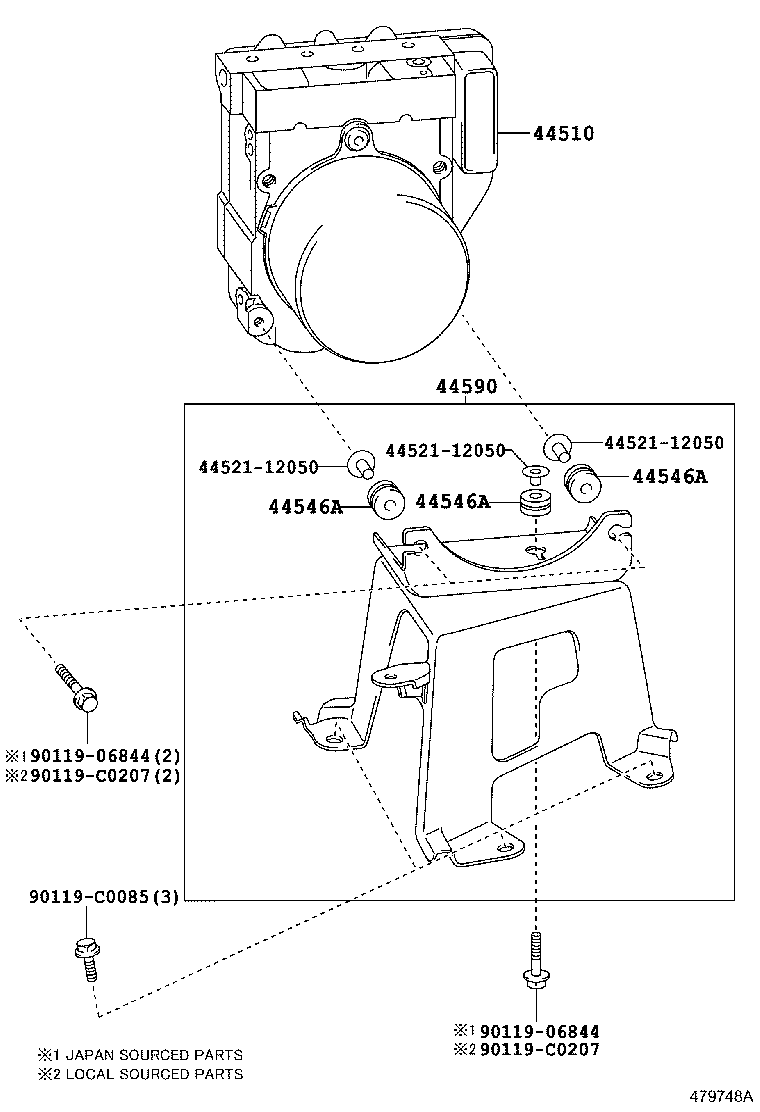

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-0E220 |
Actuator Assy, Brake
2015-03 → 2017-10
ended
|
GSU55 LIMD | — | |
| 44050-0E220 |
Actuator Assy, Brake
2015-03 → 2018-03
ended
|
ASU5# LIMD | — | |
| 44050-0E230 |
Actuator Assy, Brake
2015-03 → 2017-10
ended
|
GSU55 D,SPO | — | |
| 44050-0E230 |
Actuator Assy, Brake
2015-03 → 2018-03
ended
|
ASU5# D,SPO | — | |
| 44050-0E320 |
Actuator Assy, Brake
2018-03 → 2020-04
ended
|
ASU5# | — | |
| 44050-0E321 |
Actuator Assy, Brake
2020-04 → —
|
ASU5# | — | |
| 44546A — Cushion, Brake Actuator Bolt | ||||
| 44546-12110 |
Cushion, Brake Actuator Bolt
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 44546-12110 |
Cushion, Brake Actuator Bolt
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 44546-12110 |
Cushion, Brake Actuator Bolt
2018-03 → —
|
ASU5# | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-0E020 |
Bracket Assy, Brake Actuator
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 44590-0E020 |
Bracket Assy, Brake Actuator
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 44590-0E110 |
Bracket Assy, Brake Actuator
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
