Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

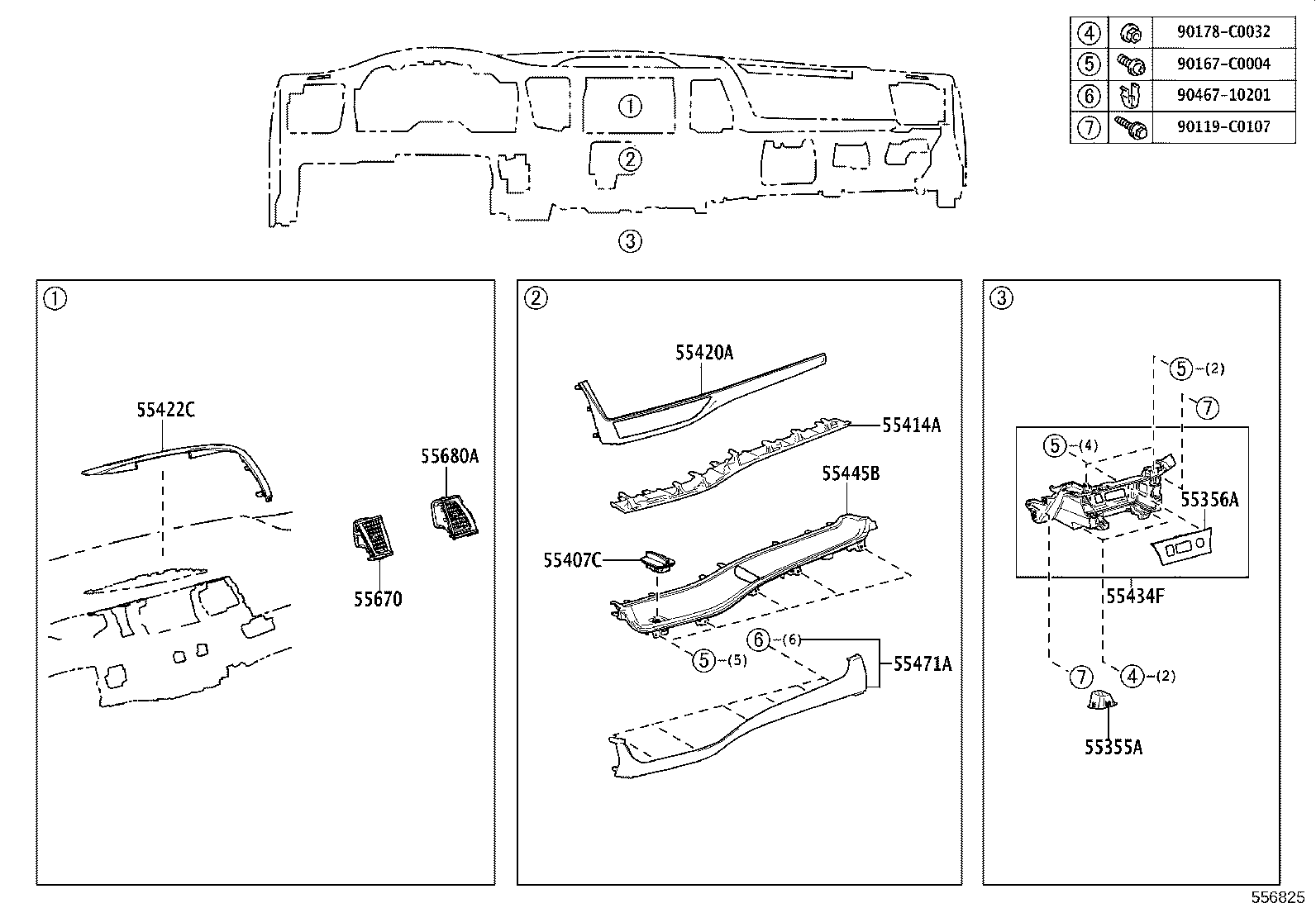

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55355A — Plate, Instrument Panel | ||||
| 55355-0E050-A0 note |
Plate, Instrument Panel
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 55355-0E050-C0 note |
Plate, Instrument Panel
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55355-0E050-A0 note |
Plate, Instrument Panel
2018-03 → —
|
ASU5# | — | |
| 55355-0E050-C0 note |
Plate, Instrument Panel
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 55356A — Plate, Instrument Panel, Lower | ||||
| 55356-0E040-C0 note |
Plate, Instrument Panel, Lower
2015-03 → 2018-03
ended
|
ASU5#,GSU55 D | — | |
| 55356-0E040-C0 note |
Plate, Instrument Panel, Lower
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55356-0E090-C0 note |
Plate, Instrument Panel, Lower
2018-03 → —
|
ASU50 D | — | |
| 55356-0E090-C0 note |
Plate, Instrument Panel, Lower
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 55407C — Cover Sub-assy, Instrument, Lower | ||||
| 55407-0E030-D0 note |
Cover Sub-assy, Instrument, Lower
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 55407-0E030-E0 note |
Cover Sub-assy, Instrument, Lower
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55407-0E030-E0 note |
Cover Sub-assy, Instrument, Lower
2018-03 → —
|
ASU50 D | — | |
| 55407-0E030-E0 note |
Cover Sub-assy, Instrument, Lower
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 55414A — Panel, Instrument Cluster Finish, End | ||||
| 55414-0E080 |
Panel, Instrument Cluster Finish, End
2015-03 → 2015-12
ended
|
ASU5#,GSU55 D,SPO | — | |
| 55414-0E081 |
Panel, Instrument Cluster Finish, End
2016-01 → 2018-03
ended
|
ASU5# D,SPO | — | |
| 55414-0E081 |
Panel, Instrument Cluster Finish, End
2016-01 → 2017-10
ended
|
GSU55 D,SPO | — | |
| 55414-0E090 |
Panel, Instrument Cluster Finish, End
2015-03 → 2015-12
ended
|
ASU5#,GSU55 LIMD | — | |
| 55414-0E091 |
Panel, Instrument Cluster Finish, End
2016-01 → 2017-10
ended
|
GSU55 LIMD | — | |
| 55414-0E091 |
Panel, Instrument Cluster Finish, End
2016-01 → 2018-03
ended
|
ASU5# LIMD | — | |
| 55414-0E081 |
Panel, Instrument Cluster Finish, End
2018-03 → —
|
ASU5# D,SPO | — | |
| 55414-0E091 |
Panel, Instrument Cluster Finish, End
2018-03 → —
|
ASU55 LIMD | — | |
| 55420A — Panel Assy, Instrument Cluster Finish, Center | ||||
| 55420-0E220 |
Panel Assy, Instrument Cluster Finish, Center
2015-03 → 2015-12
ended
|
ASU5#,GSU55 D,SPO | — | |
| 55420-0E221 |
Panel Assy, Instrument Cluster Finish, Center
2016-01 → 2017-10
ended
|
GSU55 D,SPO | — | |
| 55420-0E221 |
Panel Assy, Instrument Cluster Finish, Center
2016-01 → 2018-03
ended
|
ASU5# D,SPO | — | |
| 55420-0E230 |
Panel Assy, Instrument Cluster Finish, Center
2015-03 → 2015-12
ended
|
ASU5#,GSU55 LIMD | — | |
| 55420-0E231 |
Panel Assy, Instrument Cluster Finish, Center
2016-01 → 2017-10
ended
|
GSU55 LIMD | — | |
| 55420-0E231 |
Panel Assy, Instrument Cluster Finish, Center
2016-01 → 2018-03
ended
|
ASU5# LIMD | — | |
| 55420-0E221 |
Panel Assy, Instrument Cluster Finish, Center
2018-03 → —
|
ASU5# D,SPO | — | |
| 55420-0E270-B0 note |
Panel Assy, Instrument Cluster Finish, Center
2018-03 → —
|
ASU55 LIMD | — | |
| 55420-0E270-B0 note |
Panel Assy, Instrument Cluster Finish, Center
2019-09 → —
|
ASU55 SPO | — | |
| 55420-0E270-B0 note |
Panel Assy, Instrument Cluster Finish, Center
2021-01 → —
|
ASU5# SPO | — | |
| 55420-0E270-B0 note |
Panel Assy, Instrument Cluster Finish, Center
2021-01 → —
|
ASU55 SPO | — | |
| 55420-0E270-E0 note |
Panel Assy, Instrument Cluster Finish, Center
2021-01 → —
|
ASU55 SPO | — | |
| 55420-0E270-E0 note |
Panel Assy, Instrument Cluster Finish, Center
2019-09 → —
|
ASU55 SPO | — | |
| 55420-0E270-E0 note |
Panel Assy, Instrument Cluster Finish, Center
2018-03 → —
|
ASU55 LIMD | — | |
| 55420-0E270-E0 note |
Panel Assy, Instrument Cluster Finish, Center
2021-01 → —
|
ASU5# SPO | — | |
| 55422C — Panel, Instrument Cluster Finish, Center Upper | ||||
| 55422-0E040-D0 note |
Panel, Instrument Cluster Finish, Center Upper
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 55422-0E040-E0 note |
Panel, Instrument Cluster Finish, Center Upper
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55422-0E040-E0 note |
Panel, Instrument Cluster Finish, Center Upper
2018-03 → —
|
ASU50 D | — | |
| 55422-0E040-E0 note |
Panel, Instrument Cluster Finish, Center Upper
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 55434F — Panel, Instrument Panel Finish, Lower Center | ||||
| 55434-0E040-A0 note |
Panel, Instrument Panel Finish, Lower Center
2015-03 → 2015-12
ended
|
ASU5#,GSU55 | — | |
| 55434-0E040-C0 note |
Panel, Instrument Panel Finish, Lower Center
2015-03 → 2015-12
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55434-0E041-A0 note |
Panel, Instrument Panel Finish, Lower Center
2016-01 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 55434-0E041-C0 note |
Panel, Instrument Panel Finish, Lower Center
2016-01 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55434-0E080-A0 note |
Panel, Instrument Panel Finish, Lower Center
2018-03 → —
|
ASU5# | — | |
| 55434-0E080-C0 note |
Panel, Instrument Panel Finish, Lower Center
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 55445B — Plate, Instrument Panel Finish | ||||
| 55445-0E050-D0 note |
Plate, Instrument Panel Finish
2015-03 → 2015-12
ended
|
ASU5#,GSU55 | — | |
| 55445-0E050-E0 note |
Plate, Instrument Panel Finish
2015-03 → 2015-12
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55445-0E051-D0 note |
Plate, Instrument Panel Finish
2016-01 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 55445-0E051-E0 note |
Plate, Instrument Panel Finish
2016-01 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55445-0E051-E0 note |
Plate, Instrument Panel Finish
2018-03 → —
|
ASU50 D | — | |
| 55445-0E051-E0 note |
Plate, Instrument Panel Finish
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 55471A — Ornament, Instrument Cluster Finish Panel | ||||
| 55471-0E040-A0 note |
Ornament, Instrument Cluster Finish Panel
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 55471-0E040-C0 note |
Ornament, Instrument Cluster Finish Panel
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 55471-0E040-A0 note |
Ornament, Instrument Cluster Finish Panel
2018-03 → —
|
ASU5# | — | |
| 55471-0E040-C0 note |
Ornament, Instrument Cluster Finish Panel
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 55670 — Register Assy, Instrument Panel, NO.3 | ||||
| 55670-0E090 |
Register Assy, Instrument Panel, NO.3
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 55670-0E090 |
Register Assy, Instrument Panel, NO.3
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 55670-0E090 |
Register Assy, Instrument Panel, NO.3
2018-03 → —
|
ASU5# | — | |
| 55680A — Register Assy, Instrument Panel, NO.4 | ||||
| 55680-0E060 |
Register Assy, Instrument Panel, NO.4
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 55680-0E060 |
Register Assy, Instrument Panel, NO.4
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 55680-0E060 |
Register Assy, Instrument Panel, NO.4
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
