Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

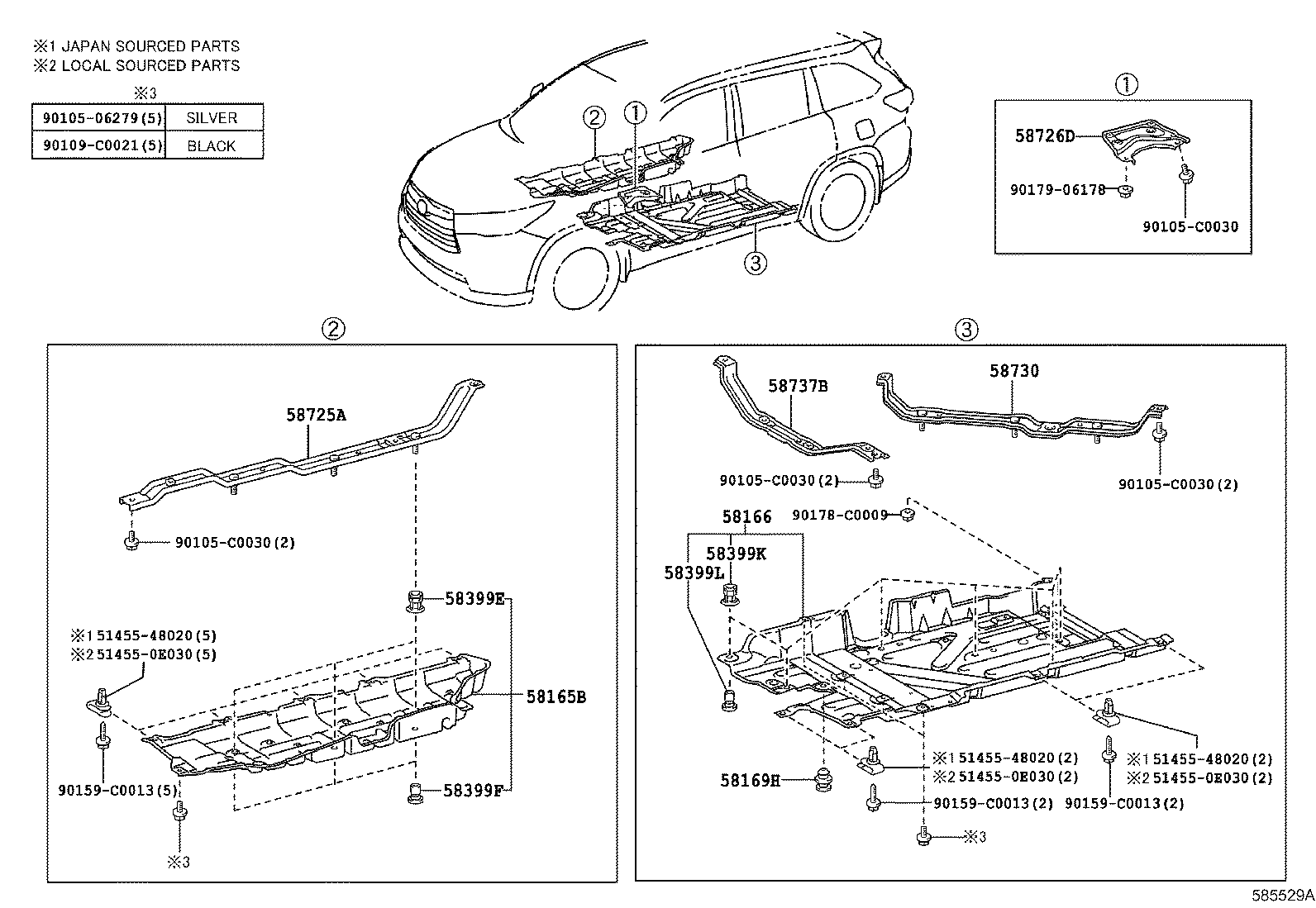

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58165B — Cover, Front Floor, RH | ||||
| 58165-0E050 |
Cover, Front Floor, RH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 58165-0E050 |
Cover, Front Floor, RH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 58165-0E050 |
Cover, Front Floor, RH
2018-03 → —
|
ASU5# | — | |
| 58166 — Cover, Front Floor, LH | ||||
| 58166-0E040 |
Cover, Front Floor, LH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 58166-0E040 |
Cover, Front Floor, LH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 58166-0E040 |
Cover, Front Floor, LH
2018-03 → —
|
ASU5# | — | |
| 58169H — Patch, Front Floor, Rear | ||||
| 58169-48010 |
Patch, Front Floor, Rear
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 58169-48010 |
Patch, Front Floor, Rear
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 58169-48010 |
Patch, Front Floor, Rear
2018-03 → —
|
ASU5# | — | |
| 58399E — Clip, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026-A0 note |
Clip, NO.1(FOR FLOOR UNDER COVER)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 90467-17026-A0 note |
Clip, NO.1(FOR FLOOR UNDER COVER)
2018-03 → —
|
ASU5# | — | |
| 58399F — Clip, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027-C0 note |
Clip, NO.2(FOR FLOOR UNDER COVER)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 90467-17027-C0 note |
Clip, NO.2(FOR FLOOR UNDER COVER)
2018-03 → —
|
ASU5# | — | |
| 58399K — Clip, NO.1(FOR FLOOR UNDER COVER) | ||||
| 90467-17026-A0 note |
Clip, NO.1(FOR FLOOR UNDER COVER)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 90467-17026-A0 note |
Clip, NO.1(FOR FLOOR UNDER COVER)
2018-03 → —
|
ASU5# | — | |
| 58399L — Clip, NO.2(FOR FLOOR UNDER COVER) | ||||
| 90467-17027-C0 note |
Clip, NO.2(FOR FLOOR UNDER COVER)
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 90467-17027-C0 note |
Clip, NO.2(FOR FLOOR UNDER COVER)
2018-03 → —
|
ASU5# | — | |
| 58725A — Stay, Engine Service Cover | ||||
| 58720-0E020 |
Stay, Engine Service Cover
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 58720-0E020 |
Stay, Engine Service Cover
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 58720-0E020 |
Stay, Engine Service Cover
2018-03 → —
|
ASU5# | — | |
| 58726D — Stay, Engine Service Cover Catch, Rear LH | ||||
| 58726-0E020 |
Stay, Engine Service Cover Catch, Rear LH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 58726-0E020 |
Stay, Engine Service Cover Catch, Rear LH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 58726-0E020 |
Stay, Engine Service Cover Catch, Rear LH
2018-03 → —
|
ASU5# | — | |
| 58730 — Cover Assy, Engine Service, Rear | ||||
| 58730-0E020 |
Cover Assy, Engine Service, Rear
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 58730-0E020 |
Cover Assy, Engine Service, Rear
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 58730-0E020 |
Cover Assy, Engine Service, Rear
2018-03 → —
|
ASU5# | — | |
| 58737B — Bracket, Engine Service Cover | ||||
| 58737-0E020 |
Bracket, Engine Service Cover
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 58737-0E020 |
Bracket, Engine Service Cover
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 58737-0E020 |
Bracket, Engine Service Cover
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
