Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

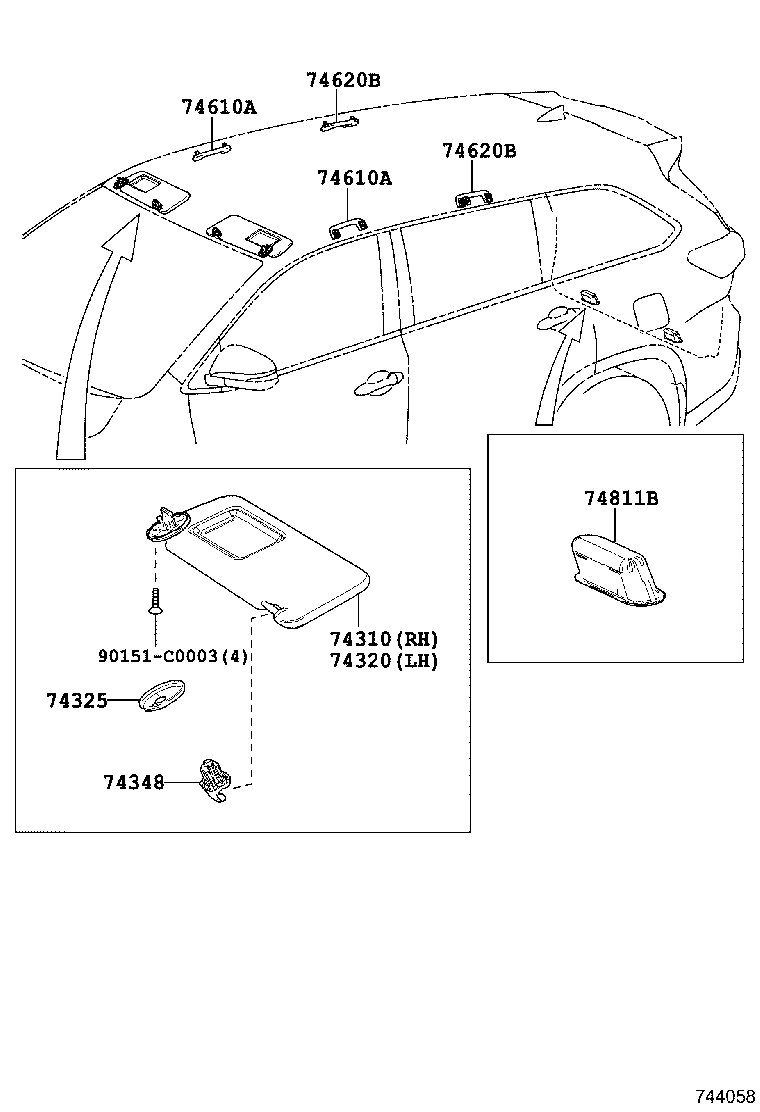

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74310 — Visor Assy, RH | ||||
| 74310-0E110-A0 note |
Visor Assy, RH
2015-03 → 2015-12
ended
|
ASU5#,GSU55 | — | |
| 74310-0E110-B0 note |
Visor Assy, RH
2015-03 → 2015-12
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74310-0E111-A0 note |
Visor Assy, RH
2016-01 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 74310-0E111-B0 note |
Visor Assy, RH
2016-01 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74310-0E111-A0 note |
Visor Assy, RH
2018-03 → —
|
ASU5# | — | |
| 74310-0E111-B0 note |
Visor Assy, RH
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-0E110-A0 note |
Visor Assy, LH
2015-03 → 2015-12
ended
|
ASU5#,GSU55 | — | |
| 74320-0E110-B0 note |
Visor Assy, LH
2015-03 → 2015-12
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74320-0E111-A0 note |
Visor Assy, LH
2016-01 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 74320-0E111-B0 note |
Visor Assy, LH
2016-01 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74320-0E111-A0 note |
Visor Assy, LH
2018-03 → —
|
ASU5# | — | |
| 74320-0E111-B0 note |
Visor Assy, LH
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 74325 — Cover, Visor Bracket | ||||
| 74317-0N020-A1 note |
Cover, Visor Bracket
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 74317-0N020-B0 note |
Cover, Visor Bracket
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74317-0N020-A1 note |
Cover, Visor Bracket
2018-03 → —
|
ASU5# | — | |
| 74317-0N020-B0 note |
Cover, Visor Bracket
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 74348 — Holder, Visor | ||||
| 74348-0D140-A1 note |
Holder, Visor
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 74348-0D140-B0 note |
Holder, Visor
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74348-0D140-A1 note |
Holder, Visor
2018-03 → —
|
ASU5# | — | |
| 74348-0D140-B0 note |
Holder, Visor
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 74610A — Grip Sub-assy, Assist | ||||
| 74610-0D130-A1 note |
Grip Sub-assy, Assist
2015-03 → 2016-10
ended
|
ASU5#,GSU55 | — | |
| 74610-0D130-B0 note |
Grip Sub-assy, Assist
2015-03 → 2016-10
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74610-0E060-A0 note |
Grip Sub-assy, Assist
2016-10 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 74610-0E060-B0 note |
Grip Sub-assy, Assist
2016-10 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74610-0E060-A0 note |
Grip Sub-assy, Assist
2018-03 → —
|
ASU5# | — | |
| 74610-0E060-B0 note |
Grip Sub-assy, Assist
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 74620B — Grip Assy, Assist, Rear | ||||
| 74610-02270-A1 note |
Grip Assy, Assist, Rear
2015-03 → 2016-10
ended
|
ASU5#,GSU55 | — | |
| 74610-02270-B1 note |
Grip Assy, Assist, Rear
2015-03 → 2016-10
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74610-0E050-A0 note |
Grip Assy, Assist, Rear
2016-10 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 74610-0E050-B0 note |
Grip Assy, Assist, Rear
2016-10 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 74610-0E050-A0 note |
Grip Assy, Assist, Rear
2018-03 → —
|
ASU5# | — | |
| 74610-0E050-B0 note |
Grip Assy, Assist, Rear
2018-03 → —
|
ASU55;ASU50 SPO | — | |
| 74811B — Handle, Door Pull | ||||
| 69285-0D070 |
Handle, Door Pull
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 69285-0D070 |
Handle, Door Pull
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 69285-0D070 |
Handle, Door Pull
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
