Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

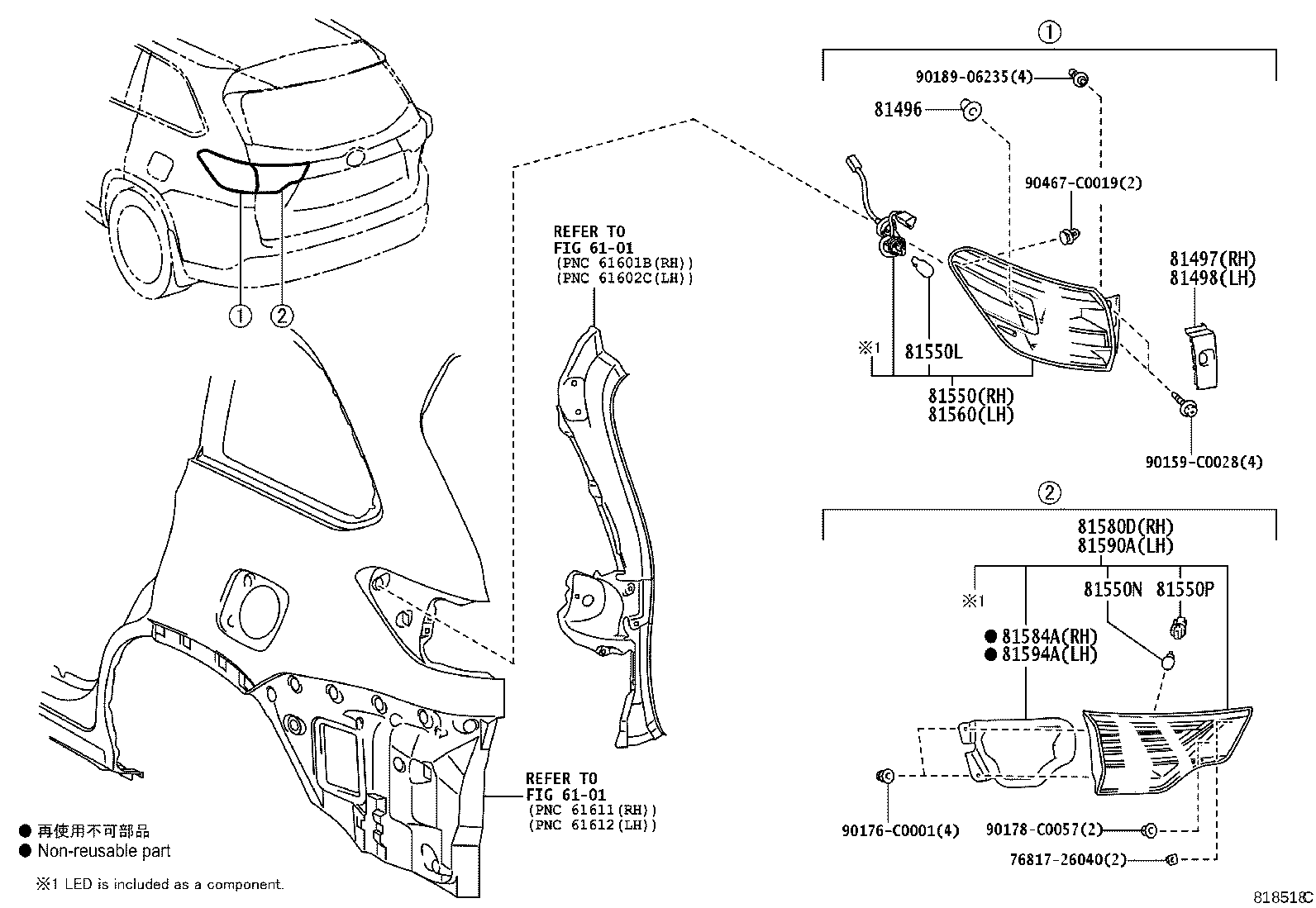

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81496 — Guide, Rear Combination Lamp | ||||
| 81496-0D030 |
Guide, Rear Combination Lamp
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81496-0D030 |
Guide, Rear Combination Lamp
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81496-0D030 |
Guide, Rear Combination Lamp
2018-03 → —
|
ASU5# | — | |
| 81497 — Cover, Rear Combination Lamp, RH | ||||
| 81497-0E020 |
Cover, Rear Combination Lamp, RH
2018-03 → —
|
ASU5# | — | |
| 81498 — Cover, Rear Combination Lamp, LH | ||||
| 81498-0E020 |
Cover, Rear Combination Lamp, LH
2018-03 → —
|
ASU5# | — | |
| 81550 — Lamp Assy, Rear Combination, RH | ||||
| 81550-0E120 |
Lamp Assy, Rear Combination, RH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81550-0E120 |
Lamp Assy, Rear Combination, RH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81550-YY010 note |
Lamp Assy, Rear Combination, RH
2017-04 → 2018-03
ended
|
ASU55 SPO | — | |
| 81550-0E220 |
Lamp Assy, Rear Combination, RH
2018-03 → —
|
ASU5# | — | |
| 81550-0E270 note |
Lamp Assy, Rear Combination, RH
2019-09 → —
|
ASU55 SPO | — | |
| 81550L — Bulb, Rear Turn Signal Lamp | ||||
| 90981-15021 note |
Bulb, Rear Turn Signal Lamp
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 90981-15021 note |
Bulb, Rear Turn Signal Lamp
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90981-15021 note |
Bulb, Rear Turn Signal Lamp
2018-03 → —
|
ASU5# | — | |
| 81550N — Bulb, Back UP Lamp | ||||
| 90981-11059 note |
Bulb, Back UP Lamp
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 90981-11059 note |
Bulb, Back UP Lamp
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 90981-11059 note |
Bulb, Back UP Lamp
2018-03 → —
|
ASU5# | — | |
| 81550P — Socket, Back UP Lamp | ||||
| 81585-0E060 |
Socket, Back UP Lamp
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81585-0E060 |
Socket, Back UP Lamp
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81585-0E060 |
Socket, Back UP Lamp
2018-03 → —
|
ASU5# | — | |
| 81560 — Lamp Assy, Rear Combination, LH | ||||
| 81560-0E120 |
Lamp Assy, Rear Combination, LH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81560-0E120 |
Lamp Assy, Rear Combination, LH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81560-YY010 note |
Lamp Assy, Rear Combination, LH
2017-04 → 2018-03
ended
|
ASU55 SPO | — | |
| 81560-0E220 |
Lamp Assy, Rear Combination, LH
2018-03 → —
|
ASU5# | — | |
| 81560-0E270 note |
Lamp Assy, Rear Combination, LH
2019-09 → —
|
ASU55 SPO | — | |
| 81580D — Lamp Assy, Rear, RH | ||||
| 81580-0E060 |
Lamp Assy, Rear, RH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81580-0E060 |
Lamp Assy, Rear, RH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81580-YY010 note |
Lamp Assy, Rear, RH
2017-04 → 2018-03
ended
|
ASU55 SPO | — | |
| 81580-0E170 |
Lamp Assy, Rear, RH
2018-03 → —
|
ASU5# | — | |
| 81580-0E210 note |
Lamp Assy, Rear, RH
2019-09 → —
|
ASU55 SPO | — | |
| 81584A — Gasket, Rear Lamp RH | ||||
| 81584-0E060 |
Gasket, Rear Lamp RH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81584-0E060 |
Gasket, Rear Lamp RH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81584-0E170 |
Gasket, Rear Lamp RH
2018-03 → —
|
ASU5# | — | |
| 81590A — Lamp Assy, Rear, LH | ||||
| 81590-0E080 |
Lamp Assy, Rear, LH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81590-0E080 |
Lamp Assy, Rear, LH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81590-YY010 note |
Lamp Assy, Rear, LH
2017-04 → 2018-03
ended
|
ASU55 SPO | — | |
| 81590-0E070 note |
Lamp Assy, Rear, LH
2019-09 → —
|
ASU55 SPO | — | |
| 81590-0E170 |
Lamp Assy, Rear, LH
2018-03 → —
|
ASU5# | — | |
| 81594A — Gasket, Rear Lamp LH | ||||
| 81594-0E080 |
Gasket, Rear Lamp LH
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 81594-0E080 |
Gasket, Rear Lamp LH
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 81594-0E170 |
Gasket, Rear Lamp LH
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
