Exploded illustration 829987D 9155180825 — not listed in this catalogue 90105C0087 — not listed in this catalogue 90119C0097 — not listed in this catalogue 82821H — COVER, CONNECTOR (2 parts) 82817C — PROTECTOR, WIRING HARNESS, NO.4 (2 parts) 82815G — COVER, WIRING HARNESS PROTECTOR NO.5 (2 parts) 82661D — COVER, RELAY BLOCK, SIDE NO.1 (3 parts) 82817E — PROTECTOR, WIRING HARNESS, NO.6 (2 parts) 82815J — COVER, WIRING HARNESS PROTECTOR, NO.7 (2 parts) 82815H — COVER, WIRING HARNESS PROTECTOR NO.6 (2 parts) 82817D — PROTECTOR, WIRING HARNESS, NO.5 (2 parts) 82821E — COVER, CONNECTOR (2 parts) 82821E — COVER, CONNECTOR (2 parts) 82821N — COVER, CONNECTOR (2 parts) 82817F — PROTECTOR, WIRING HARNESS, NO.7 (2 parts) 82821M — COVER, CONNECTOR (2 parts) 82128A — WIRE, ENGINE, NO.8 (2 parts) 82127D — WIRE, ENGINE, NO.7 (2 parts) 82821A — COVER, CONNECTOR (2 parts) 82219A — WIRE, SENSOR (3 parts) 82666A — HOLDER, CONNECTOR NO.2 (2 parts) 82824 — CONNECTOR, WIRING HARNESS (2 parts) 82122 — WIRE, ENGINE, NO.2 (3 parts) 82126 — WIRE, ENGINE (2 parts) 82823T — CAP, ALTERNATOR TERMINAL (2 parts) 82817G — PROTECTOR, WIRING HARNESS, NO.8 (2 parts) 82817J — PROTECTOR, WIRING HARNESS, NO.9 (2 parts) 82712A — SUPPORT, WIRING HARNESS (3 parts) 82815B — COVER, WIRING HARNESS PROTECTOR (3 parts) 82817B — PROTECTOR, WIRING HARNESS, NO.3 (3 parts) 82121 — WIRE, ENGINE (6 parts) 90119C0097 — not listed in this catalogue 90105C0076 — not listed in this catalogue 90119C0208 — not listed in this catalogue 90119C0154 — not listed in this catalogue 90119C0097 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119C0097 — not listed in this catalogue 90119C0097 — not listed in this catalogue 9167180816 — not listed in this catalogue 90119C0100 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178C0032 — not listed in this catalogue

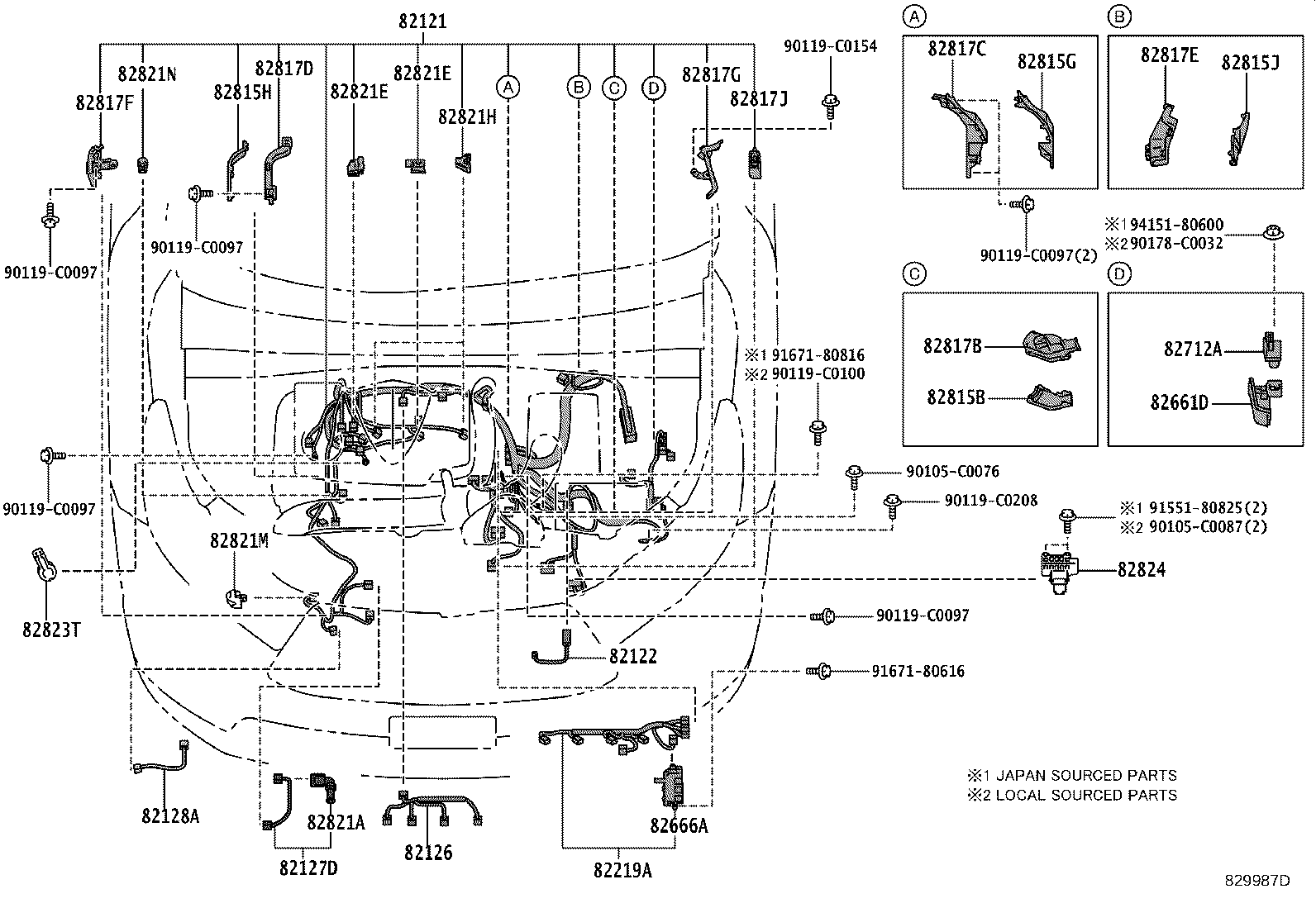

829987D · 28 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
82121 — Wire, Engine
82121-0E170 Wire, Engine
2015-03 → 2015-07 ended
ASU5# —
82121-0E171 Wire, Engine
2015-08 → 2018-03 ended
ASU5# —
82121-0E240 Wire, Engine
2015-03 → 2017-10 ended
GSU55 —
82121-0E171 Wire, Engine
2018-03 → 2020-04 ended
ASU5# —
82121-0E320 note Wire, Engine
2018-10 → 2020-04 ended
ASU5# —
82121-0E320 Wire, Engine
2020-04 → —
ASU5# —
82122 — Wire, Engine, NO.2
82122-0E080 Wire, Engine, NO.2
2015-03 → 2018-03 ended
ASU5# —
82122-0E090 Wire, Engine, NO.2
2015-03 → 2017-10 ended
GSU55 —
82122-0E080 Wire, Engine, NO.2
2018-03 → —
ASU5# —
82126 — Wire, Engine
82126-78010 Wire, Engine
2015-03 → 2018-03 ended
ASU5# —
82126-78010 Wire, Engine
2018-03 → —
ASU5# —
82127D — Wire, Engine, NO.7
82127-78010 Wire, Engine, NO.7
2015-03 → 2018-03 ended
ASU5# —
82127-78010 Wire, Engine, NO.7
2018-03 → —
ASU5# —
82128A — Wire, Engine, NO.8
82128-78010 Wire, Engine, NO.8
2015-03 → 2018-03 ended
ASU5# —
82128-78010 Wire, Engine, NO.8
2018-03 → —
ASU5# —
82219A — Wire, Sensor
82219-41010 Wire, Sensor
2015-03 → 2017-10 ended
GSU55 —
82219-78010 Wire, Sensor
2015-03 → 2018-03 ended
ASU5# —
82219-78010 Wire, Sensor
2018-03 → —
ASU5# —
82661D — Cover, Relay Block, Side NO.1
82661-0E010 Cover, Relay Block, Side NO.1
2015-03 → 2017-10 ended
GSU55 —
82661-0E010 Cover, Relay Block, Side NO.1
2015-03 → 2018-03 ended
ASU5# —
82661-0E010 Cover, Relay Block, Side NO.1
2018-03 → —
ASU5# —
82666A — Holder, Connector NO.2
82666-78020 Holder, Connector NO.2
2015-03 → 2018-03 ended
ASU5# —
82666-78020 Holder, Connector NO.2
2018-03 → —
ASU5# —
82712A — Support, Wiring Harness
82712-0E020 Support, Wiring Harness
2015-03 → 2017-10 ended
GSU55 —
82712-0E020 Support, Wiring Harness
2015-03 → 2018-03 ended
ASU5# —
82712-0E020 Support, Wiring Harness
2018-03 → —
ASU5# —
82815B — Cover, Wiring Harness Protector
82815-0E010 Cover, Wiring Harness Protector
2015-03 → 2017-10 ended
GSU55 —
82815-0E010 Cover, Wiring Harness Protector
2015-03 → 2018-03 ended
ASU5# —
82815-0E010 Cover, Wiring Harness Protector
2018-03 → —
ASU5# —
82815G — Cover, Wiring Harness Protector NO.5
82815-0E050 Cover, Wiring Harness Protector NO.5
2015-03 → 2018-03 ended
ASU5# —
82815-0E050 Cover, Wiring Harness Protector NO.5
2018-03 → —
ASU5# —
82815H — Cover, Wiring Harness Protector NO.6
82815-0E060 Cover, Wiring Harness Protector NO.6
2015-03 → 2018-03 ended
ASU5# —
82815-0E060 Cover, Wiring Harness Protector NO.6
2018-03 → —
ASU5# —
82815J — Cover, Wiring Harness Protector, NO.7
82815-0E070 Cover, Wiring Harness Protector, NO.7
2015-03 → 2018-03 ended
ASU5# —
82815-0E070 Cover, Wiring Harness Protector, NO.7
2018-03 → —
ASU5# —
82817B — Protector, Wiring Harness, NO.3
82817-0E170 Protector, Wiring Harness, NO.3
2015-03 → 2017-10 ended
GSU55 —
82817-0E170 Protector, Wiring Harness, NO.3
2015-03 → 2018-03 ended
ASU5# —
82817-0E170 Protector, Wiring Harness, NO.3
2018-03 → —
ASU5# —
82817C — Protector, Wiring Harness, NO.4
82817-0E470 Protector, Wiring Harness, NO.4
2015-03 → 2018-03 ended
ASU5# —
82817-0E470 Protector, Wiring Harness, NO.4
2018-03 → —
ASU5# —
82817D — Protector, Wiring Harness, NO.5
82817-0E480 Protector, Wiring Harness, NO.5
2015-03 → 2018-03 ended
ASU5# —
82817-0E480 Protector, Wiring Harness, NO.5
2018-03 → —
ASU5# —
82817E — Protector, Wiring Harness, NO.6
82817-0E490 Protector, Wiring Harness, NO.6
2015-03 → 2018-03 ended
ASU5# —
82817-0E490 Protector, Wiring Harness, NO.6
2018-03 → —
ASU5# —
82817F — Protector, Wiring Harness, NO.7
82817-0E730 Protector, Wiring Harness, NO.7
2015-03 → 2018-03 ended
ASU5# —
82817-0E730 Protector, Wiring Harness, NO.7
2018-03 → —
ASU5# —
82817G — Protector, Wiring Harness, NO.8
82817-78240 Protector, Wiring Harness, NO.8
2015-03 → 2018-03 ended
ASU5# —
82817-78240 Protector, Wiring Harness, NO.8
2018-03 → —
ASU5# —
82817J — Protector, Wiring Harness, NO.9
82817-78250 Protector, Wiring Harness, NO.9
2015-03 → 2018-03 ended
ASU5# —
82817-78250 Protector, Wiring Harness, NO.9
2018-03 → —
ASU5# —
82821A — Cover, Connector
82821-78080 Cover, Connector
2015-03 → 2018-03 ended
ASU5# —
82821-78080 Cover, Connector
2018-03 → —
ASU5# —
82821E — Cover, Connector
82821-78040 Cover, Connector
2015-03 → 2018-03 ended
ASU5# —
82821-78040 Cover, Connector
2018-03 → —
ASU5# —
82821H — Cover, Connector
82821-78050 Cover, Connector
2015-03 → 2018-03 ended
ASU5# —
82821-78050 Cover, Connector
2018-03 → —
ASU5# —
82821M — Cover, Connector
82821-0E100 Cover, Connector
2015-03 → 2018-03 ended
ASU5# —
82821-0E100 Cover, Connector
2018-03 → —
ASU5# —
82821N — Cover, Connector
82821-0E090 Cover, Connector
2015-03 → 2018-03 ended
ASU5# —
82821-0E090 Cover, Connector
2018-03 → —
ASU5# —
82823T — Cap, Alternator Terminal
82823-60040 Cap, Alternator Terminal
2015-03 → 2018-03 ended
ASU5# —
82823-60040 Cap, Alternator Terminal
2018-03 → —
ASU5# —
82824 — Connector, Wiring Harness
82824-33360 Connector, Wiring Harness
2015-03 → 2018-03 ended
ASU5# —
82824-33360 Connector, Wiring Harness
2018-03 → —
ASU5# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
