Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

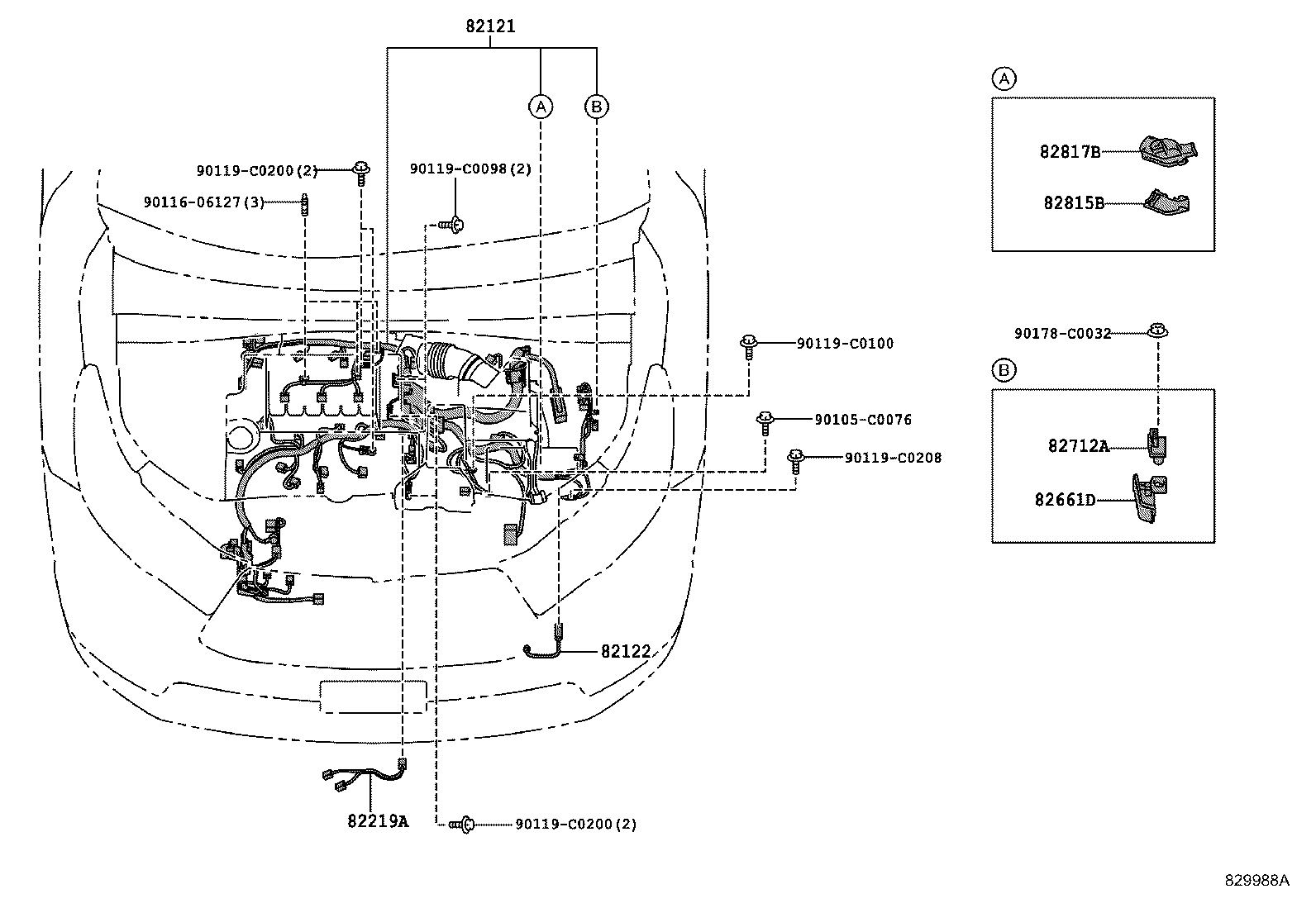

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-0E170 |
Wire, Engine
2015-03 → 2015-07
ended
|
ASU5# | — | |
| 82121-0E171 |
Wire, Engine
2015-08 → 2018-03
ended
|
ASU5# | — | |
| 82121-0E240 |
Wire, Engine
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82121-0E171 |
Wire, Engine
2018-03 → 2020-04
ended
|
ASU5# | — | |
| 82121-0E320 note |
Wire, Engine
2018-10 → 2020-04
ended
|
ASU5# | — | |
| 82121-0E320 |
Wire, Engine
2020-04 → —
|
ASU5# | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-0E080 |
Wire, Engine, NO.2
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82122-0E090 |
Wire, Engine, NO.2
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82122-0E080 |
Wire, Engine, NO.2
2018-03 → —
|
ASU5# | — | |
| 82219A — Wire, Sensor | ||||
| 82219-41010 |
Wire, Sensor
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82219-78010 |
Wire, Sensor
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82219-78010 |
Wire, Sensor
2018-03 → —
|
ASU5# | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-0E010 |
Cover, Relay Block, Side NO.1
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82661-0E010 |
Cover, Relay Block, Side NO.1
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82661-0E010 |
Cover, Relay Block, Side NO.1
2018-03 → —
|
ASU5# | — | |
| 82712A — Support, Wiring Harness | ||||
| 82712-0E020 |
Support, Wiring Harness
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82712-0E020 |
Support, Wiring Harness
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82712-0E020 |
Support, Wiring Harness
2018-03 → —
|
ASU5# | — | |
| 82815B — Cover, Wiring Harness Protector | ||||
| 82815-0E010 |
Cover, Wiring Harness Protector
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82815-0E010 |
Cover, Wiring Harness Protector
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82815-0E010 |
Cover, Wiring Harness Protector
2018-03 → —
|
ASU5# | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-0E170 |
Protector, Wiring Harness, NO.3
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82817-0E170 |
Protector, Wiring Harness, NO.3
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82817-0E170 |
Protector, Wiring Harness, NO.3
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
