Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

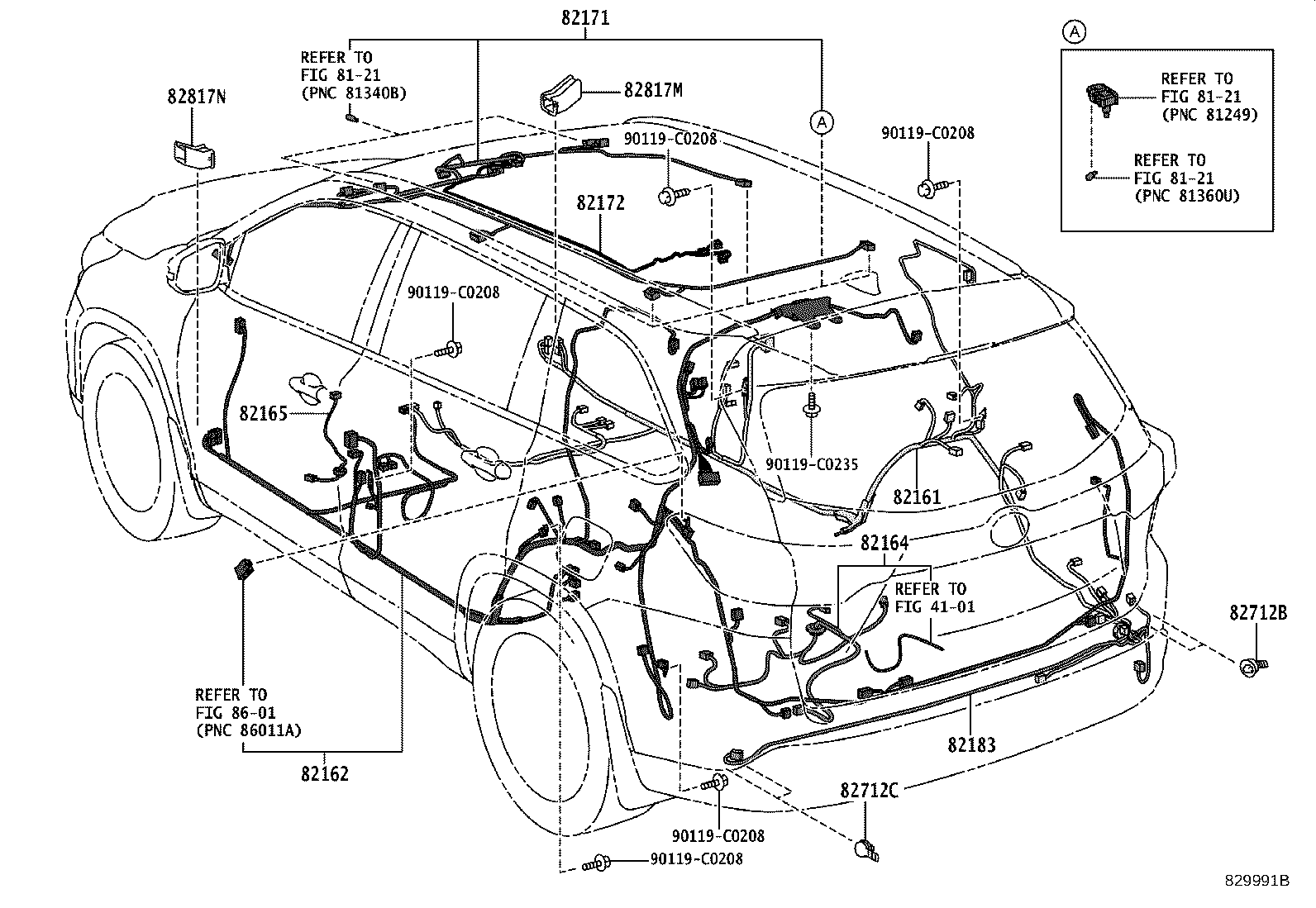

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-0EB40 |
Wire, Floor
2015-03 → 2017-04
ended
|
ASU5#,GSU55 SPO | — | |
| 82161-0EB60 |
Wire, Floor
2015-03 → 2017-04
ended
|
ASU5#,GSU55 LIMD | — | |
| 82161-0EB70 |
Wire, Floor
2015-03 → 2018-03
ended
|
ASU5# D | — | |
| 82161-0EB70 |
Wire, Floor
2015-03 → 2017-10
ended
|
GSU55 D | — | |
| 82161-0EG10 |
Wire, Floor
2017-04 → 2017-10
ended
|
GSU55 SPO | — | |
| 82161-0EG10 |
Wire, Floor
2017-04 → 2018-03
ended
|
ASU5# SPO | — | |
| 82161-0EG20 |
Wire, Floor
2017-04 → 2017-10
ended
|
GSU55 LIMD | — | |
| 82161-0EG20 |
Wire, Floor
2017-04 → 2018-03
ended
|
ASU5# LIMD | — | |
| 82161-0EF50 |
Wire, Floor
2018-03 → 2019-10
ended
|
ASU5# D | — | |
| 82161-0EF51 |
Wire, Floor
2019-10 → 2020-04
ended
|
ASU5# D | — | |
| 82161-0EF60 |
Wire, Floor
2018-03 → 2019-10
ended
|
ASU5# SPO | — | |
| 82161-0EF61 |
Wire, Floor
2019-10 → 2020-04
ended
|
ASU5# SPO | — | |
| 82161-0EF70 |
Wire, Floor
2018-03 → 2019-10
ended
|
ASU55 LIMD | — | |
| 82161-0EF71 |
Wire, Floor
2019-10 → 2020-04
ended
|
ASU55 LIMD | — | |
| 82161-0EF80 note |
Wire, Floor
2018-10 → 2019-09
ended
|
ASU5# D | — | |
| 82161-0EF81 note |
Wire, Floor
2019-10 → 2020-04
ended
|
ASU5# D | — | |
| 82161-0EF81 |
Wire, Floor
2020-04 → —
|
ASU5# D | — | |
| 82161-0EF90 note |
Wire, Floor
2018-10 → 2019-09
ended
|
ASU5# SPO | — | |
| 82161-0EF91 note |
Wire, Floor
2019-10 → 2020-04
ended
|
ASU5# SPO | — | |
| 82161-0EF91 |
Wire, Floor
2020-04 → —
|
ASU5# SPO | — | |
| 82161-0EG00 note |
Wire, Floor
2018-10 → 2019-09
ended
|
ASU55 LIMD | — | |
| 82161-0EG01 note |
Wire, Floor
2019-10 → 2020-04
ended
|
ASU55 LIMD | — | |
| 82161-0EG01 |
Wire, Floor
2020-04 → —
|
ASU55 LIMD | — | |
| 82162 — Wire, Floor, NO.2 | ||||
| 82162-0E610 note |
Wire, Floor, NO.2
2015-03 → 2017-04
ended
|
GSU55 SPO | — | |
| 82162-0E620 |
Wire, Floor, NO.2
2015-03 → 2017-04
ended
|
GSU55 SPO | — | |
| 82162-0E630 |
Wire, Floor, NO.2
2015-03 → 2017-04
ended
|
GSU55 LIMD | — | |
| 82162-0E640 |
Wire, Floor, NO.2
2015-03 → 2017-10
ended
|
GSU55 D | — | |
| 82162-0E680 note |
Wire, Floor, NO.2
2015-03 → 2017-04
ended
|
ASU5# SPO | — | |
| 82162-0E690 |
Wire, Floor, NO.2
2015-03 → 2017-04
ended
|
ASU5# SPO | — | |
| 82162-0E700 |
Wire, Floor, NO.2
2015-03 → 2017-04
ended
|
ASU5# LIMD | — | |
| 82162-0E710 |
Wire, Floor, NO.2
2015-03 → 2018-03
ended
|
ASU5# D | — | |
| 82162-0ED80 note |
Wire, Floor, NO.2
2017-04 → 2017-10
ended
|
GSU55 SPO | — | |
| 82162-0ED90 |
Wire, Floor, NO.2
2017-04 → 2017-10
ended
|
GSU55 SPO | — | |
| 82162-0EE00 |
Wire, Floor, NO.2
2017-04 → 2017-10
ended
|
GSU55 LIMD | — | |
| 82162-0EE10 note |
Wire, Floor, NO.2
2017-04 → 2018-03
ended
|
ASU5# SPO | — | |
| 82162-0EE20 |
Wire, Floor, NO.2
2017-04 → 2018-03
ended
|
ASU5# SPO | — | |
| 82162-0EE30 |
Wire, Floor, NO.2
2017-04 → 2018-03
ended
|
ASU5# LIMD | — | |
| 82162-0E720 |
Wire, Floor, NO.2
2018-03 → 2019-09
ended
|
ASU5# D | — | |
| 82162-0E721 |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU5# D | — | |
| 82162-0E722 |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU5# D | — | |
| 82162-0ED30 |
Wire, Floor, NO.2
2018-03 → 2019-09
ended
|
ASU5# SPO | — | |
| 82162-0ED31 |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU5# SPO | — | |
| 82162-0ED32 |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU5# SPO | — | |
| 82162-0ED40 |
Wire, Floor, NO.2
2018-03 → 2019-09
ended
|
ASU55 LIMD | — | |
| 82162-0ED41 |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU55 LIMD | — | |
| 82162-0ED42 |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU55 LIMD | — | |
| 82162-0ED50 note |
Wire, Floor, NO.2
2018-10 → 2019-09
ended
|
ASU5# D | — | |
| 82162-0ED51 note |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU5# D | — | |
| 82162-0ED52 |
Wire, Floor, NO.2
2020-04 → —
|
ASU5# D | — | |
| 82162-0ED52 note |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU5# D | — | |
| 82162-0ED60 note |
Wire, Floor, NO.2
2018-10 → 2019-09
ended
|
ASU5# SPO | — | |
| 82162-0ED61 note |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU5# SPO | — | |
| 82162-0ED62 |
Wire, Floor, NO.2
2020-04 → —
|
ASU5# SPO | — | |
| 82162-0ED62 note |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU5# SPO | — | |
| 82162-0ED70 note |
Wire, Floor, NO.2
2018-10 → 2019-09
ended
|
ASU55 LIMD | — | |
| 82162-0ED71 note |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU55 LIMD | — | |
| 82162-0ED72 |
Wire, Floor, NO.2
2020-04 → —
|
ASU55 LIMD | — | |
| 82162-0ED72 note |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU55 LIMD | — | |
| 82162-0EE40 note |
Wire, Floor, NO.2
2018-03 → 2019-09
ended
|
ASU5# SPO | — | |
| 82162-0EE41 note |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU5# SPO | — | |
| 82162-0EE41 note |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU55 SPO | — | |
| 82162-0EE42 note |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU5# SPO | — | |
| 82162-0EE42 note |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU55 SPO | — | |
| 82162-0EE50 note |
Wire, Floor, NO.2
2018-10 → 2019-09
ended
|
ASU5# SPO | — | |
| 82162-0EE51 note |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU55 SPO | — | |
| 82162-0EE51 note |
Wire, Floor, NO.2
2019-09 → 2019-10
ended
|
ASU5# SPO | — | |
| 82162-0EE52 note |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU5# SPO | — | |
| 82162-0EE52 note |
Wire, Floor, NO.2
2020-04 → —
|
ASU5# SPO | — | |
| 82162-0EE52 note |
Wire, Floor, NO.2
2020-04 → —
|
ASU55 SPO | — | |
| 82162-0EE52 note |
Wire, Floor, NO.2
2019-10 → 2020-04
ended
|
ASU55 SPO | — | |
| 82164 — Wire, Frame | ||||
| 82164-0E160 |
Wire, Frame
2015-03 → 2017-10
ended
|
GSU55 SPO | — | |
| 82164-0E160 |
Wire, Frame
2015-03 → 2018-03
ended
|
ASU55 SPO | — | |
| 82164-0E170 |
Wire, Frame
2015-03 → 2017-10
ended
|
GSU55 LIMD | — | |
| 82164-0E170 |
Wire, Frame
2015-03 → 2018-03
ended
|
ASU55 LIMD | — | |
| 82164-0E180 |
Wire, Frame
2015-03 → 2017-10
ended
|
GSU55 D | — | |
| 82164-0E180 |
Wire, Frame
2015-03 → 2018-03
ended
|
ASU55 D | — | |
| 82164-0E190 |
Wire, Frame
2015-03 → 2018-03
ended
|
ASU50 SPO | — | |
| 82164-0E200 |
Wire, Frame
2015-03 → 2018-03
ended
|
ASU50 LIMD | — | |
| 82164-0E210 |
Wire, Frame
2015-03 → 2018-03
ended
|
ASU50 D | — | |
| 82164-0E170 |
Wire, Frame
2018-03 → —
|
ASU55 LIMD,SPO | — | |
| 82164-0E180 |
Wire, Frame
2018-03 → —
|
ASU55 D | — | |
| 82164-0E200 |
Wire, Frame
2018-03 → —
|
ASU50 SPO | — | |
| 82164-0E210 |
Wire, Frame
2018-03 → —
|
ASU50 D | — | |
| 82165 — Wire, Frame, NO.2 | ||||
| 82165-0E020 |
Wire, Frame, NO.2
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82165-0E020 |
Wire, Frame, NO.2
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82165-0E020 |
Wire, Frame, NO.2
2018-03 → 2020-04
ended
|
ASU5# | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-0E870 |
Wire, Roof, NO.1
2015-03 → 2017-04
ended
|
ASU5#,GSU55 SPO | — | |
| 82171-0E880 |
Wire, Roof, NO.1
2015-03 → 2017-04
ended
|
ASU5#,GSU55 LIMD | — | |
| 82171-0E890 |
Wire, Roof, NO.1
2015-03 → 2018-03
ended
|
ASU5#,GSU55 D | — | |
| 82171-0EG30 |
Wire, Roof, NO.1
2017-04 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 82171-0E890 |
Wire, Roof, NO.1
2018-03 → —
|
ASU5# D | — | |
| 82171-0EE90 |
Wire, Roof, NO.1
2018-03 → —
|
ASU5# LIMD,SPO | — | |
| 82171-0EG40 note |
Wire, Roof, NO.1
2018-03 → —
|
ASU55 D | — | |
| 82172 — Wire, Roof, NO.2 | ||||
| 82172-0E050 |
Wire, Roof, NO.2
2015-03 → 2017-10
ended
|
GSU55 LIMD,SPO | — | |
| 82172-0E050 |
Wire, Roof, NO.2
2015-03 → 2018-03
ended
|
ASU5# LIMD,SPO | — | |
| 82172-0E050 |
Wire, Roof, NO.2
2018-03 → —
|
ASU5# LIMD,SPO | — | |
| 82172-0E050 note |
Wire, Roof, NO.2
2018-03 → —
|
ASU55 D | — | |
| 82183 — Wire, Luggage Room, NO.3 | ||||
| 82183-0E050 |
Wire, Luggage Room, NO.3
2015-03 → 2017-04
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 82183-0E050 |
Wire, Luggage Room, NO.3
2015-03 → 2018-03
ended
|
ASU5#,GSU55 D | — | |
| 82183-0E100 |
Wire, Luggage Room, NO.3
2017-04 → 2018-03
ended
|
ASU5#,GSU55 LIMD,SPO | — | |
| 82183-0E050 |
Wire, Luggage Room, NO.3
2018-03 → —
|
ASU5# D | — | |
| 82183-0E090 |
Wire, Luggage Room, NO.3
2018-03 → —
|
ASU5# LIMD,SPO | — | |
| 82712B — Support, Wiring Harness | ||||
| 82712-28290 |
Support, Wiring Harness
2015-03 → 2017-10
ended
|
GSU55 D,SPO | — | |
| 82712-28290 |
Support, Wiring Harness
2015-03 → 2018-03
ended
|
ASU5# D,SPO | — | |
| 82712-28290 |
Support, Wiring Harness
2018-03 → —
|
ASU5# D,SPO | — | |
| 82712C — Support, Wiring Harness, NO.1 | ||||
| 82712-28290 |
Support, Wiring Harness, NO.1
2015-03 → 2017-10
ended
|
GSU55 D,SPO | — | |
| 82712-28290 |
Support, Wiring Harness, NO.1
2015-03 → 2018-03
ended
|
ASU5# D,SPO | — | |
| 82712-28290 |
Support, Wiring Harness, NO.1
2018-03 → —
|
ASU5# D,SPO | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82817-0E500 |
Protector, Wiring Harness, NO.12
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82817-0E500 |
Protector, Wiring Harness, NO.12
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82817-0E500 |
Protector, Wiring Harness, NO.12
2018-03 → —
|
ASU5# | — | |
| 82817N — Protector, Wiring Harness, NO.13 | ||||
| 82817-0E500 |
Protector, Wiring Harness, NO.13
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 82817-0E500 |
Protector, Wiring Harness, NO.13
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 82817-0E500 |
Protector, Wiring Harness, NO.13
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
