Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

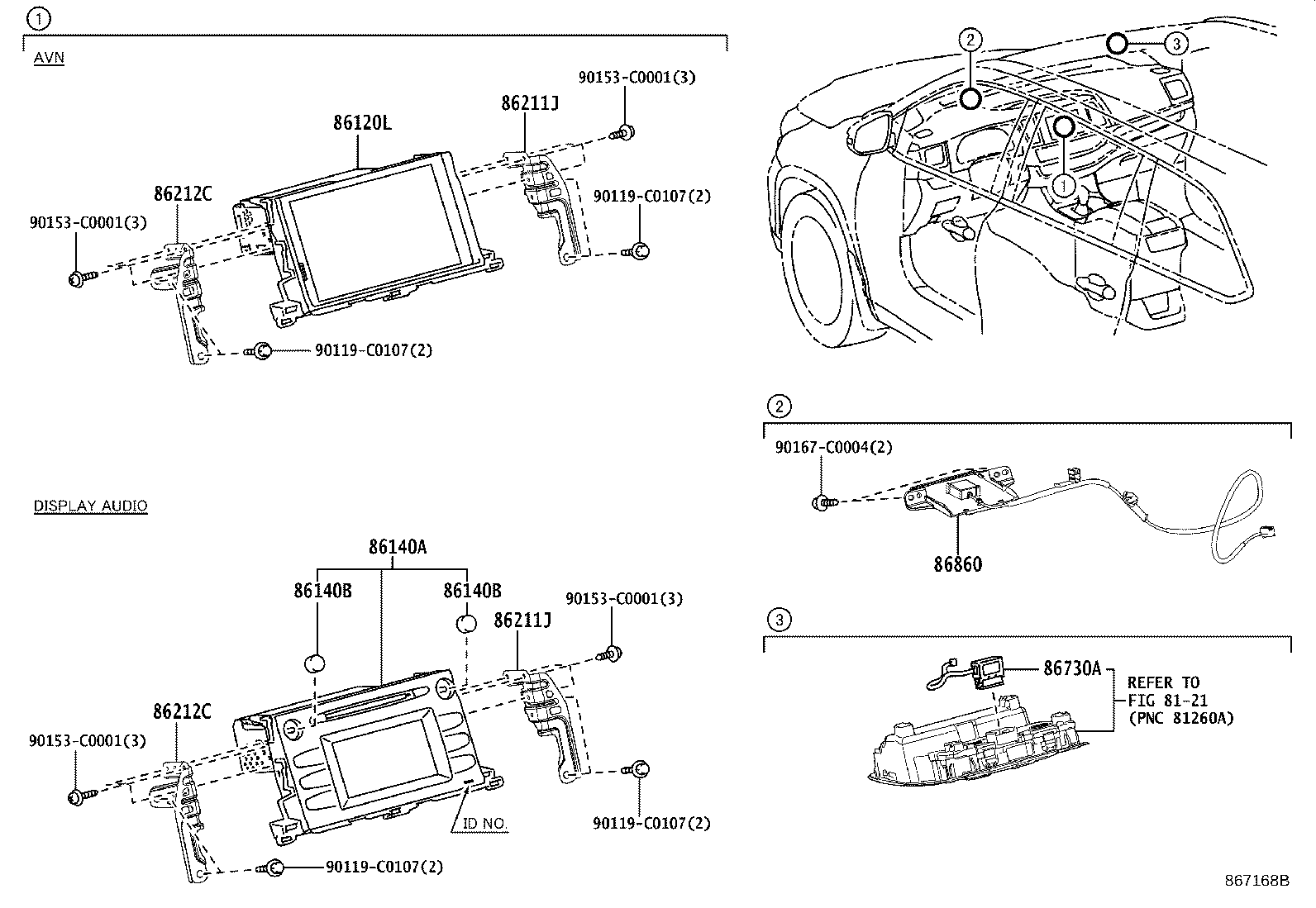

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86120L — Receiver Assy, Navigation | ||||
| 86804-0E140 note |
Receiver Assy, Navigation
2015-03 → 2018-03
ended
|
ASU5#,GSU55 SPO | — | |
| 86804-0E140 note |
Receiver Assy, Navigation
2015-03 → 2018-03
ended
|
ASU5#,GSU55 LIMD | — | |
| 86100-YY160 note |
Receiver Assy, Navigation
2018-03 → 2021-01
ended
|
ASU5# SPO | — | |
| 86100-YY160 note |
Receiver Assy, Navigation
2019-09 → 2021-01
ended
|
ASU55 SPO | — | |
| 86100-YY160 note |
Receiver Assy, Navigation
2021-01 → 2022-02
ended
|
ASU5# SPO | — | |
| 86100-YY160 note |
Receiver Assy, Navigation
2021-01 → 2022-02
ended
|
ASU5# SPO | — | |
| 86100-YY160 note |
Receiver Assy, Navigation
2021-01 → 2022-02
ended
|
ASU55 SPO | — | |
| 86100-YY160 note |
Receiver Assy, Navigation
2018-03 → —
|
ASU55 LIMD | — | |
| 86100-YY160 note |
Receiver Assy, Navigation
2021-01 → —
|
ASU5# SPO | — | |
| 86100-YY200 note |
Receiver Assy, Navigation
2021-01 → —
|
ASU5# SPO | — | |
| 86100-YY200 note |
Receiver Assy, Navigation
2021-01 → —
|
ASU55 SPO | — | |
| 86140A — Receiver Assy, Radio & Display | ||||
| 86140-0E150 note |
Receiver Assy, Radio & Display
2015-03 → 2018-03
ended
|
ASU5#,GSU55 D,SPO | — | |
| 86140-0E310 note |
Receiver Assy, Radio & Display
2018-03 → —
|
ASU5# D | — | |
| 86140-0E310 note |
Receiver Assy, Radio & Display
2021-05 → —
|
ASU5# SPO | — | |
| 86140-0E320 note |
Receiver Assy, Radio & Display
2018-03 → 2020-10
ended
|
ASU5# SPO | — | |
| 86140-0E320 note |
Receiver Assy, Radio & Display
2018-03 → 2020-10
ended
|
ASU55 SPO | — | |
| 86140-0E320 note |
Receiver Assy, Radio & Display
2018-03 → 2021-01
ended
|
ASU5# SPO | — | |
| 86140B — Knob, Radio & Display Receiver Switch | ||||
| 90011-25273 |
Knob, Radio & Display Receiver Switch
2015-03 → 2017-10
ended
|
GSU55 D,SPO | — | |
| 90011-25273 |
Knob, Radio & Display Receiver Switch
2015-03 → 2018-03
ended
|
ASU5# D,SPO | — | |
| 90011-25273 note |
Knob, Radio & Display Receiver Switch
2021-05 → —
|
ASU5# SPO | — | |
| 90011-25273 note |
Knob, Radio & Display Receiver Switch
2018-03 → 2020-10
ended
|
ASU55 SPO | — | |
| 90011-25273 |
Knob, Radio & Display Receiver Switch
2018-03 → —
|
ASU5# D | — | |
| 90011-25273 note |
Knob, Radio & Display Receiver Switch
2018-03 → 2020-10
ended
|
ASU5# SPO | — | |
| 90011-25273 |
Knob, Radio & Display Receiver Switch
2018-03 → 2021-01
ended
|
ASU5# SPO | — | |
| 86211J — Bracket, Radio Receiver, NO.1 | ||||
| 86211-0E090 |
Bracket, Radio Receiver, NO.1
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 86211-0E090 |
Bracket, Radio Receiver, NO.1
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 86211-0E090 |
Bracket, Radio Receiver, NO.1
2018-03 → —
|
ASU5# | — | |
| 86212C — Bracket, Radio Receiver, NO.2 | ||||
| 86212-0E090 |
Bracket, Radio Receiver, NO.2
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 86212-0E090 |
Bracket, Radio Receiver, NO.2
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 86212-0E090 |
Bracket, Radio Receiver, NO.2
2018-03 → —
|
ASU5# | — | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-0E030 |
Microphone Assy, Telephone
2015-03 → 2018-03
ended
|
ASU5#,GSU55 | — | |
| 86730-0E030 |
Microphone Assy, Telephone
2018-03 → —
|
ASU5# | — | |
| 86860 — Antenna Assy, Navigation | ||||
| 86860-0E080 |
Antenna Assy, Navigation
2015-03 → 2017-10
ended
|
GSU55 LIMD | — | |
| 86860-0E080 note |
Antenna Assy, Navigation
2015-03 → 2017-10
ended
|
GSU55 SPO | — | |
| 86860-0E080 |
Antenna Assy, Navigation
2015-03 → 2018-03
ended
|
ASU5# LIMD | — | |
| 86860-0E080 note |
Antenna Assy, Navigation
2015-03 → 2018-03
ended
|
ASU5# SPO | — | |
| 86860-0E080 note |
Antenna Assy, Navigation
2018-03 → 2021-01
ended
|
ASU5# SPO | — | |
| 86860-0E080 note |
Antenna Assy, Navigation
2019-09 → 2021-01
ended
|
ASU55 SPO | — | |
| 86860-0E080 note |
Antenna Assy, Navigation
2021-01 → 2022-02
ended
|
ASU5# SPO | — | |
| 86860-0E080 |
Antenna Assy, Navigation
2018-03 → —
|
ASU55 LIMD | — | |
| 86860-0E080 |
Antenna Assy, Navigation
2021-01 → —
|
ASU5# SPO | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
