Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

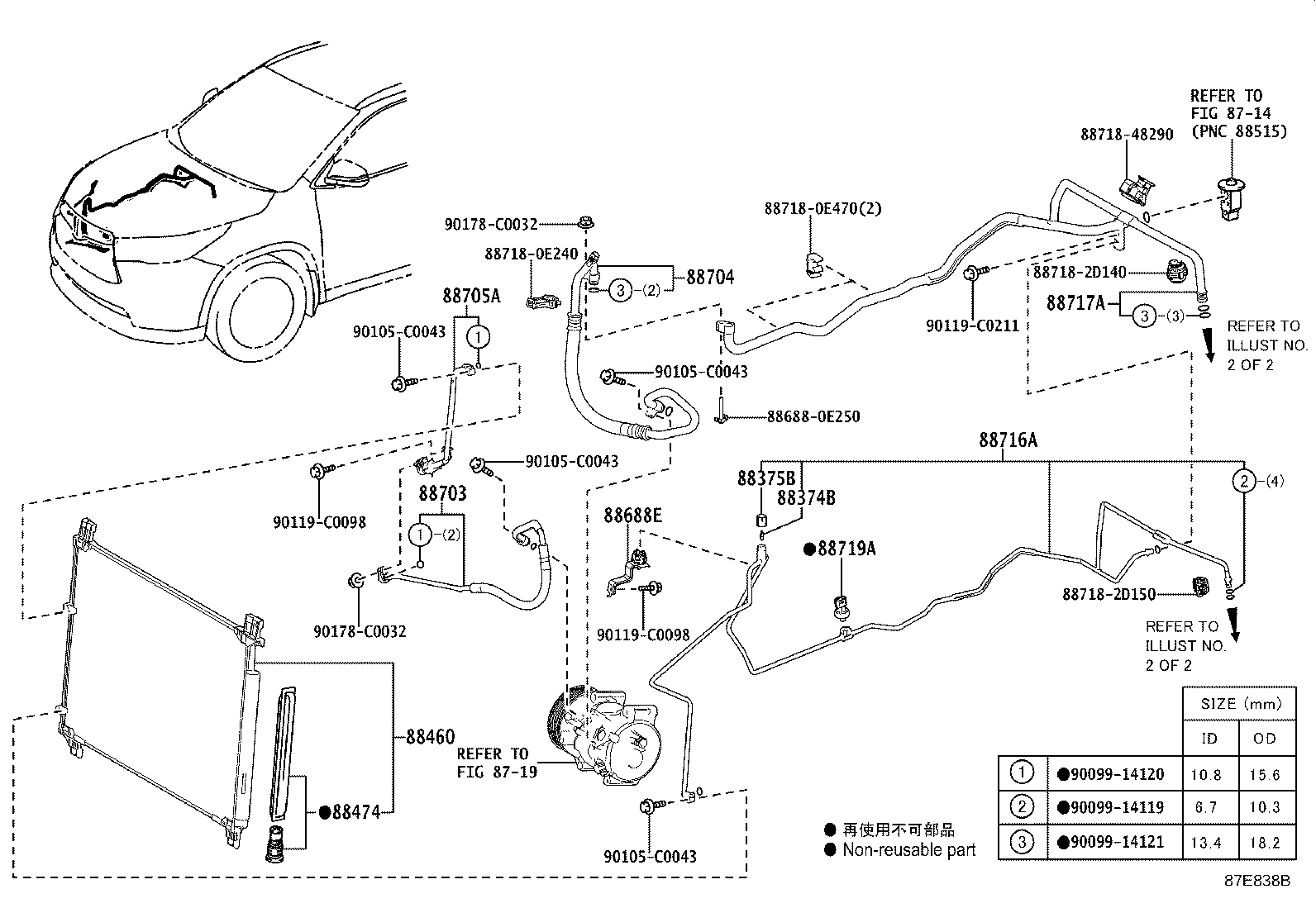

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 |
Valve, Service, NO.1
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-0D010 |
Cap, Service Valve, NO.1
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-0E090 |
Condenser Assy, Cooler
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88460-0E100 |
Condenser Assy, Cooler
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88460-0E140 |
Condenser Assy, Cooler
2019-09 → —
|
ASU5# | — | |
| 88460-0E150 |
Condenser Assy, Cooler
2018-03 → 2019-09
ended
|
ASU5# | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-12010 |
Dryer, Cooler
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88474-12010 |
Dryer, Cooler
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88474-12010 |
Dryer, Cooler
2018-03 → —
|
ASU5# | — | |
| 88688E — Bracket, Cooler Refrigerant Hose, NO.1 | ||||
| 88688-0E140 |
Bracket, Cooler Refrigerant Hose, NO.1
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88688-0E140 |
Bracket, Cooler Refrigerant Hose, NO.1
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88688-0E140 |
Bracket, Cooler Refrigerant Hose, NO.1
2018-03 → —
|
ASU5# | — | |
| 88703 — Hose Sub-assy, Discharge | ||||
| 88703-0E130 |
Hose Sub-assy, Discharge
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88703-0E140 |
Hose Sub-assy, Discharge
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88703-0E130 |
Hose Sub-assy, Discharge
2018-03 → —
|
ASU5# | — | |
| 88704 — Hose Sub-assy, Suction | ||||
| 88704-0E240 |
Hose Sub-assy, Suction
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88704-0E250 |
Hose Sub-assy, Suction
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88704-0E240 |
Hose Sub-assy, Suction
2018-03 → —
|
ASU5# | — | |
| 88705A — Tube Sub-assy, Discharge | ||||
| 88705-0E080 |
Tube Sub-assy, Discharge
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88705-0E090 |
Tube Sub-assy, Discharge
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88705-0E100 |
Tube Sub-assy, Discharge
2018-03 → —
|
ASU5# | — | |
| 88716A — Pipe, Cooler Refrigerant Liquid, A | ||||
| 88716-0E410 |
Pipe, Cooler Refrigerant Liquid, A
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88716-0E420 |
Pipe, Cooler Refrigerant Liquid, A
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88716-0E530 |
Pipe, Cooler Refrigerant Liquid, A
2018-03 → —
|
ASU5# | — | |
| 88717A — Pipe, Cooler Refrigerant Suction, A | ||||
| 88717-0E230 |
Pipe, Cooler Refrigerant Suction, A
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88717-0E230 |
Pipe, Cooler Refrigerant Suction, A
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88717-0E230 |
Pipe, Cooler Refrigerant Suction, A
2018-03 → —
|
ASU5# | — | |
| 88719A — Sensor, Air Conditioner Pressure | ||||
| 88719-33020 |
Sensor, Air Conditioner Pressure
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88719-33020 |
Sensor, Air Conditioner Pressure
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
