Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

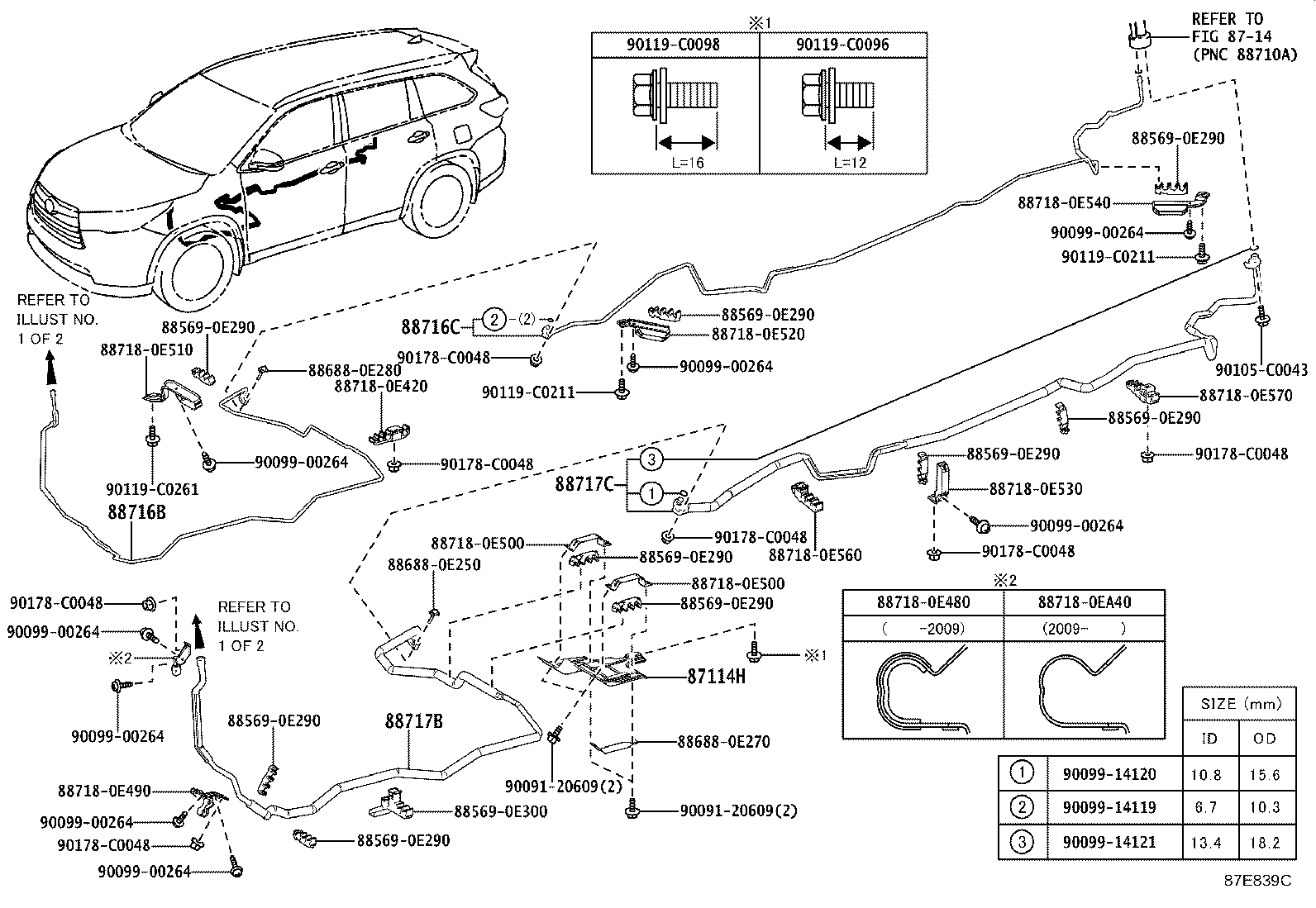

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87114H — Cover, Heater | ||||
| 87114-0E090 |
Cover, Heater
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 87114-0E090 |
Cover, Heater
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 87114-0E090 |
Cover, Heater
2018-03 → —
|
ASU5# | — | |
| 88716B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88716-0E380 |
Pipe, Cooler Refrigerant Liquid, B
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88716-0E380 |
Pipe, Cooler Refrigerant Liquid, B
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88716-0E380 |
Pipe, Cooler Refrigerant Liquid, B
2018-03 → —
|
ASU5# | — | |
| 88716C — Pipe, Cooler Refrigerant Liquid, C | ||||
| 88716-0E430 |
Pipe, Cooler Refrigerant Liquid, C
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88716-0E430 |
Pipe, Cooler Refrigerant Liquid, C
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88716-0E490 |
Pipe, Cooler Refrigerant Liquid, C
2018-03 → —
|
ASU5# | — | |
| 88717B — Pipe, Cooler Refrigerant Suction, B | ||||
| 88717-0E220 |
Pipe, Cooler Refrigerant Suction, B
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88717-0E220 |
Pipe, Cooler Refrigerant Suction, B
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88717-0E220 |
Pipe, Cooler Refrigerant Suction, B
2018-03 → 2020-09
ended
|
ASU5# | — | |
| 88717-0E370 |
Pipe, Cooler Refrigerant Suction, B
2020-09 → —
|
ASU5# | — | |
| 88717C — Pipe, Cooler Refrigerant Suction, C | ||||
| 88717-0E240 |
Pipe, Cooler Refrigerant Suction, C
2015-03 → 2017-10
ended
|
GSU55 | — | |
| 88717-0E240 |
Pipe, Cooler Refrigerant Suction, C
2015-03 → 2018-03
ended
|
ASU5# | — | |
| 88717-0E270 |
Pipe, Cooler Refrigerant Suction, C
2018-03 → —
|
ASU5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
