Timing Gear Cover & Rear End Plate

15 part groups · 2 illustrations

Illustrations

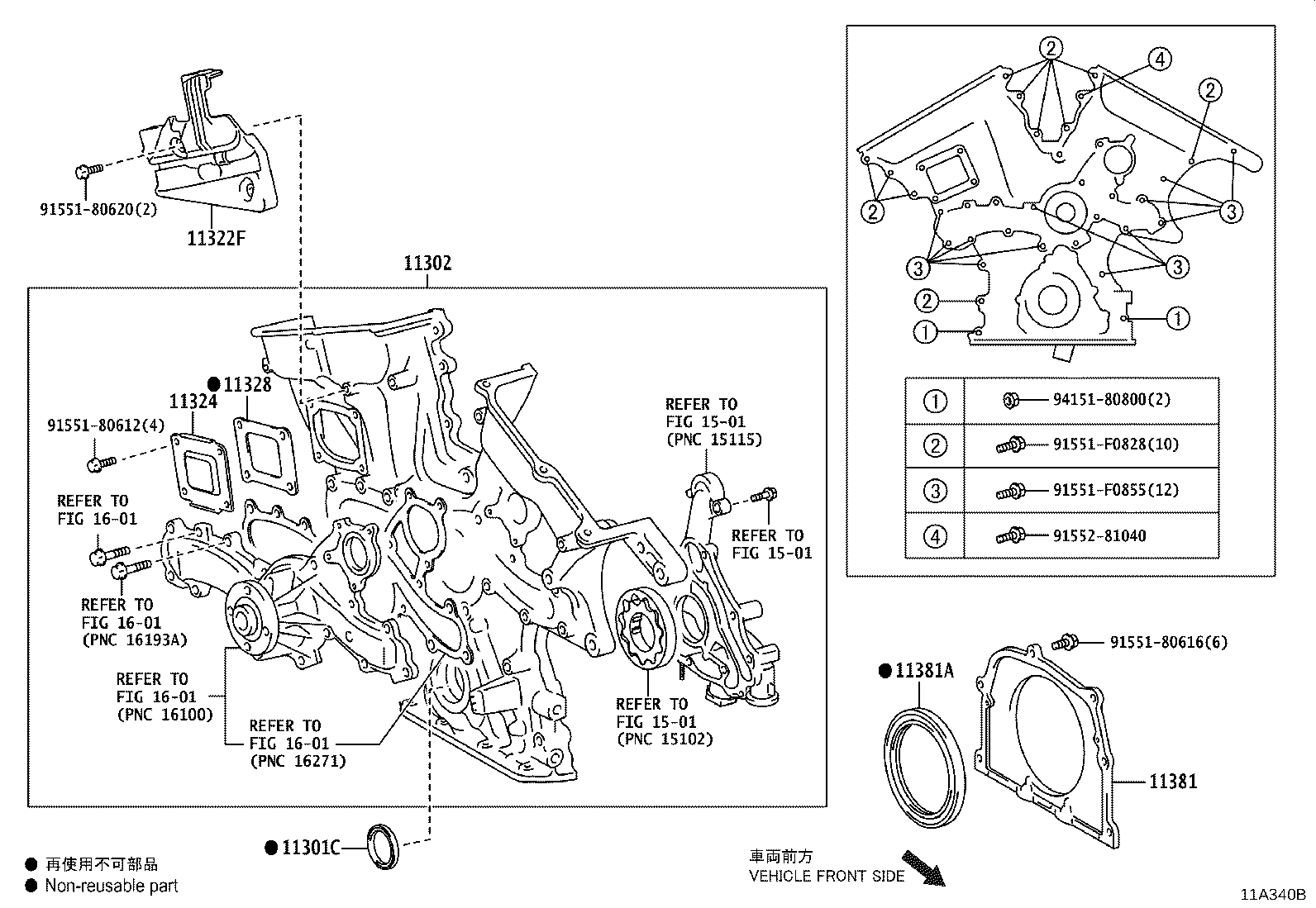

Figure 11A308B 11A308B 2015-03 → — Figure 11A340B 11A340B 2015-03 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11310 Cover Assy, Timing Chain
11322F Cover, Timing Gear, NO.2
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11496A Gasket, Oil Hole Cover
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
