Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

33 part groups · 3 illustrations

Illustrations

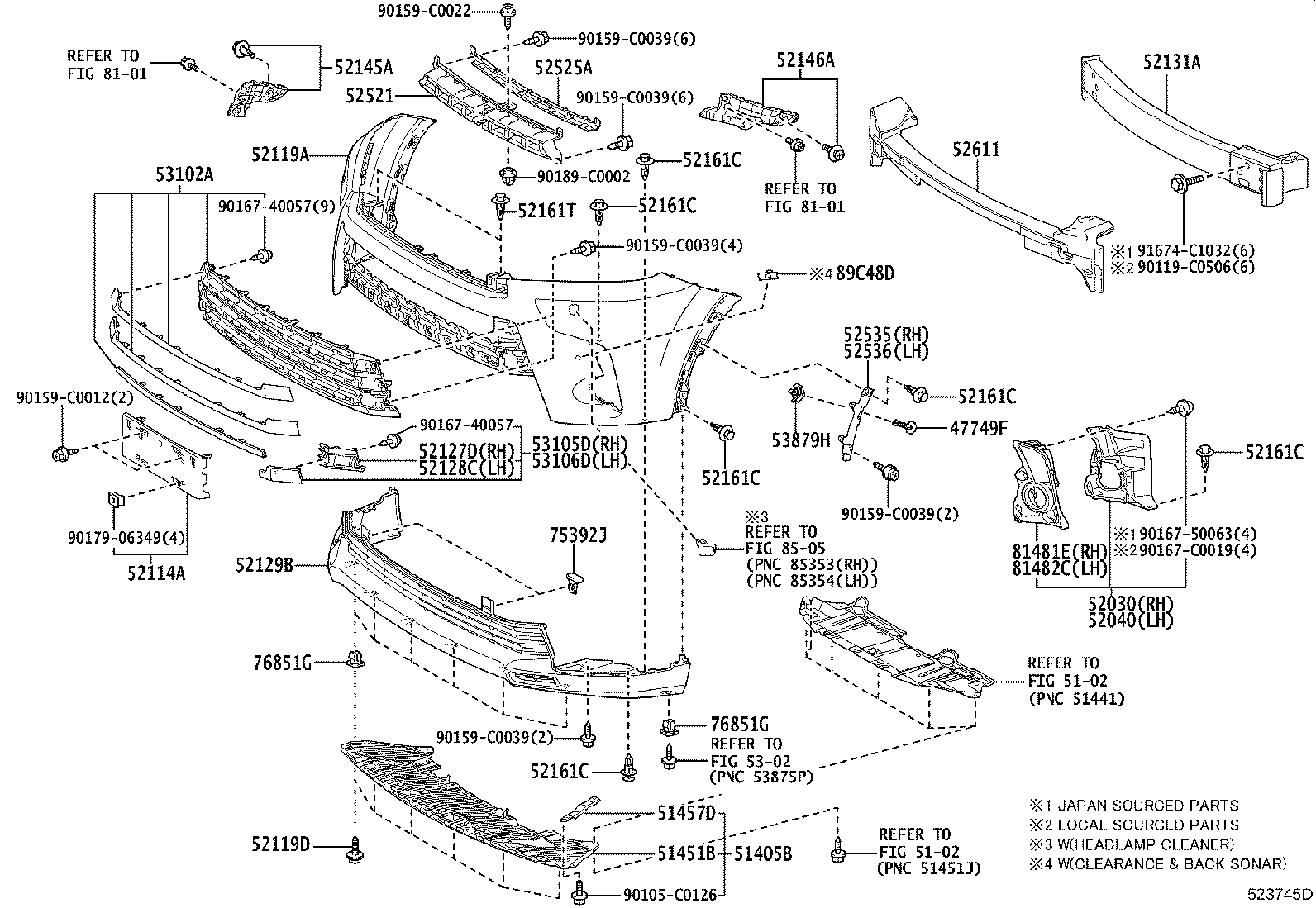

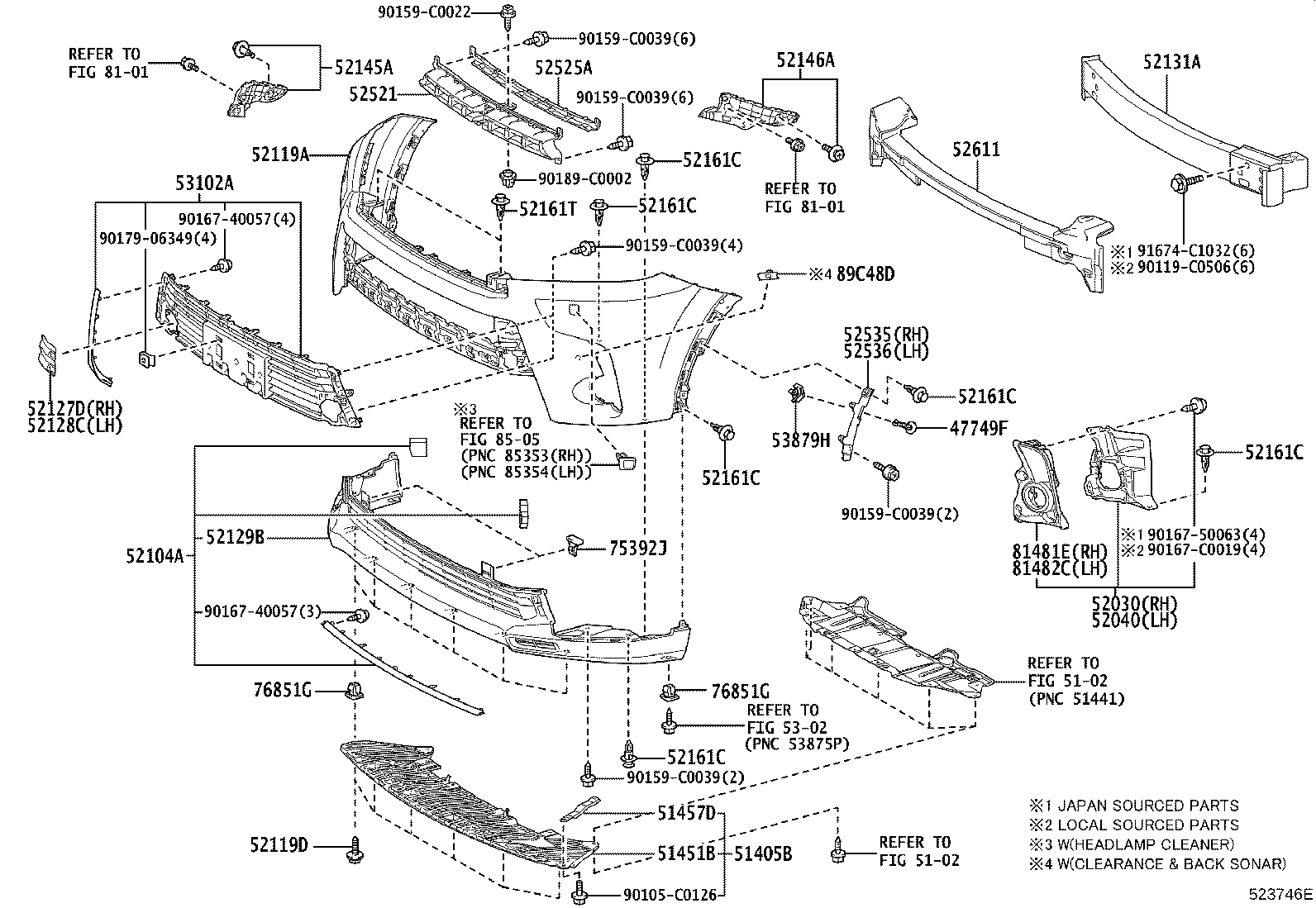

Figure 523111H 523111H 2015-03 → 2018-03 Figure 523745D 523745D 2018-03 → — Figure 523746E 523746E 2018-03 → —

Part groups

PNCDescription
47749F Clip, Pin Hold
51405B Cover Sub-assy, Engine Under
51451B Cover, Engine Under, Center
51457D Bracket, Engine Under Cover
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52104A Bumper Sub-assy, Front Center
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52525A Retainer, Front Bumper Bracket
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53102A Grille Sub-assy, Radiator, Lwr
53105D Garnish Sub-assy, Radiator Grille, RH
53106D Garnish Sub-assy, Radiator Grille, LH
53879H Retainer, Front Fender Liner
75392J Retainer, Outside Moulding
75895K Tape, Moulding, NO.1
76851G Grommet, Screw, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
