Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

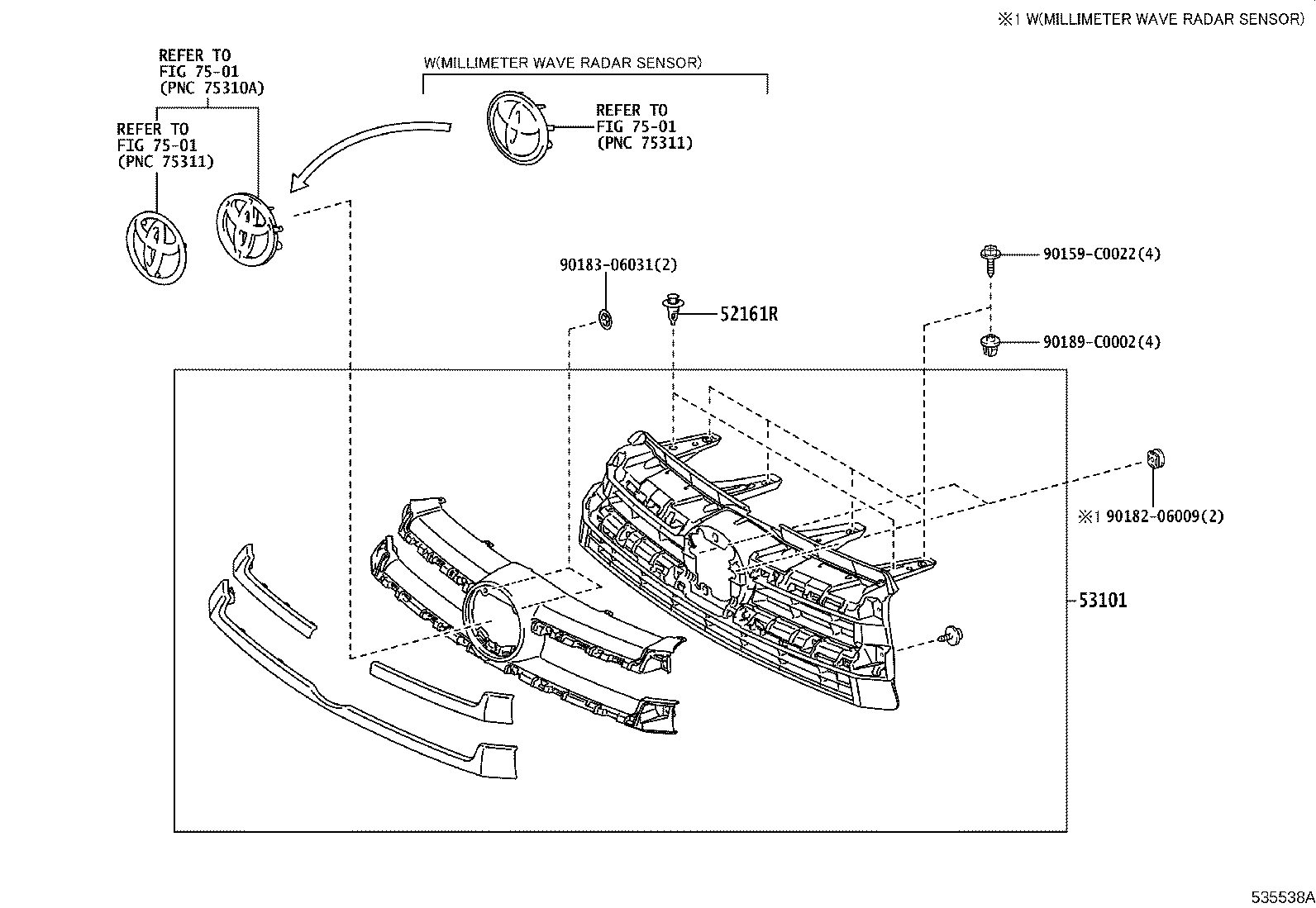

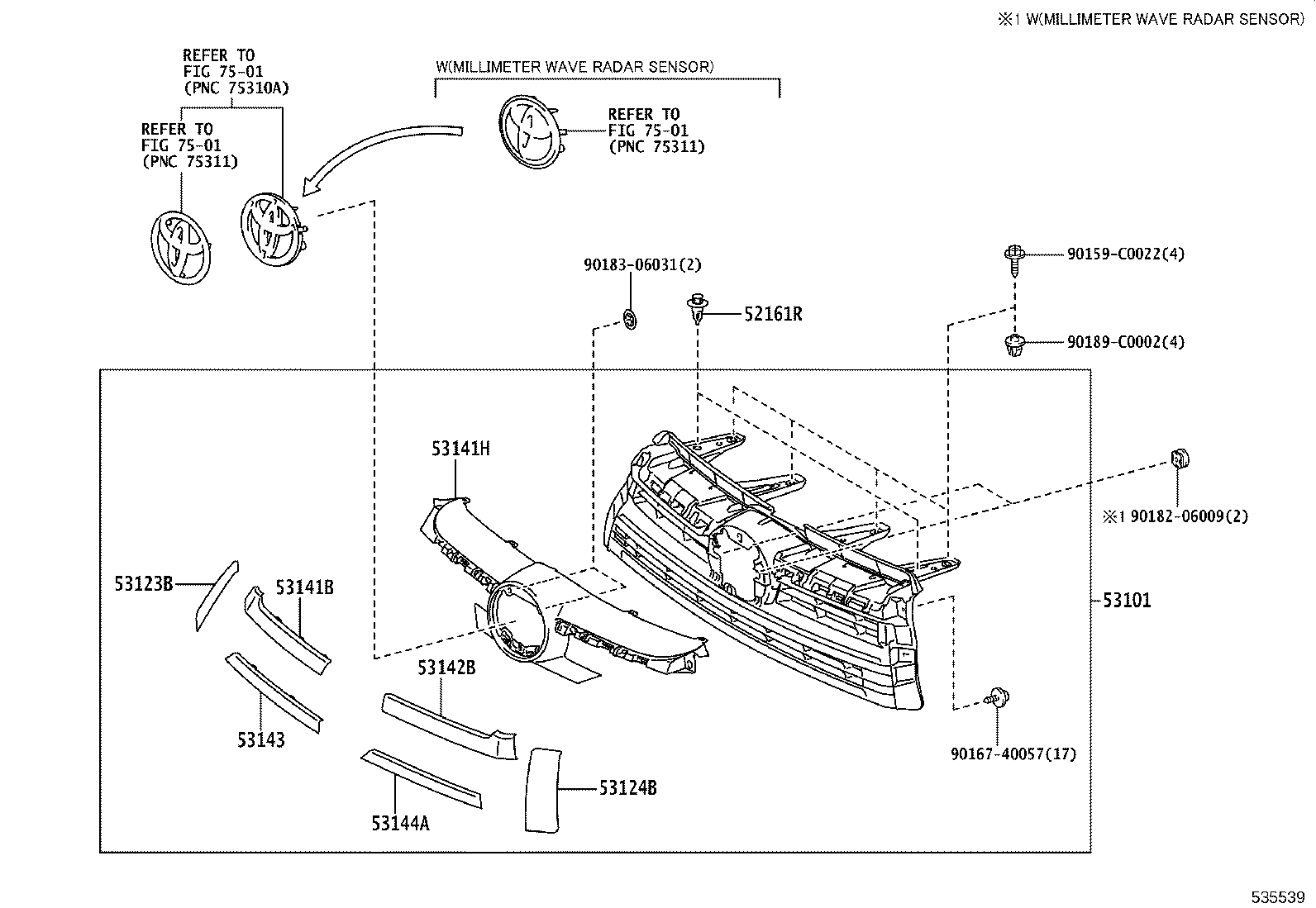

Radiator Grille
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53121A | Moulding, Radiator Grille |
| 53123B | Moulding, Radiator Grille Side, RH |
| 53124B | Moulding, Radiator Grille Side, LH |
| 53141B | Garnish, Radiator Grille, NO.1 |
| 53141H | Garnish, Radiator Grille |
| 53142B | Radiator Grille Garnish, NO.2 |
| 53143 | Garnish, Radiator Grille, NO.3 |
| 53144A | Garnish, Radiator Grille, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
