Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

26 part groups · 2 illustrations

Illustrations

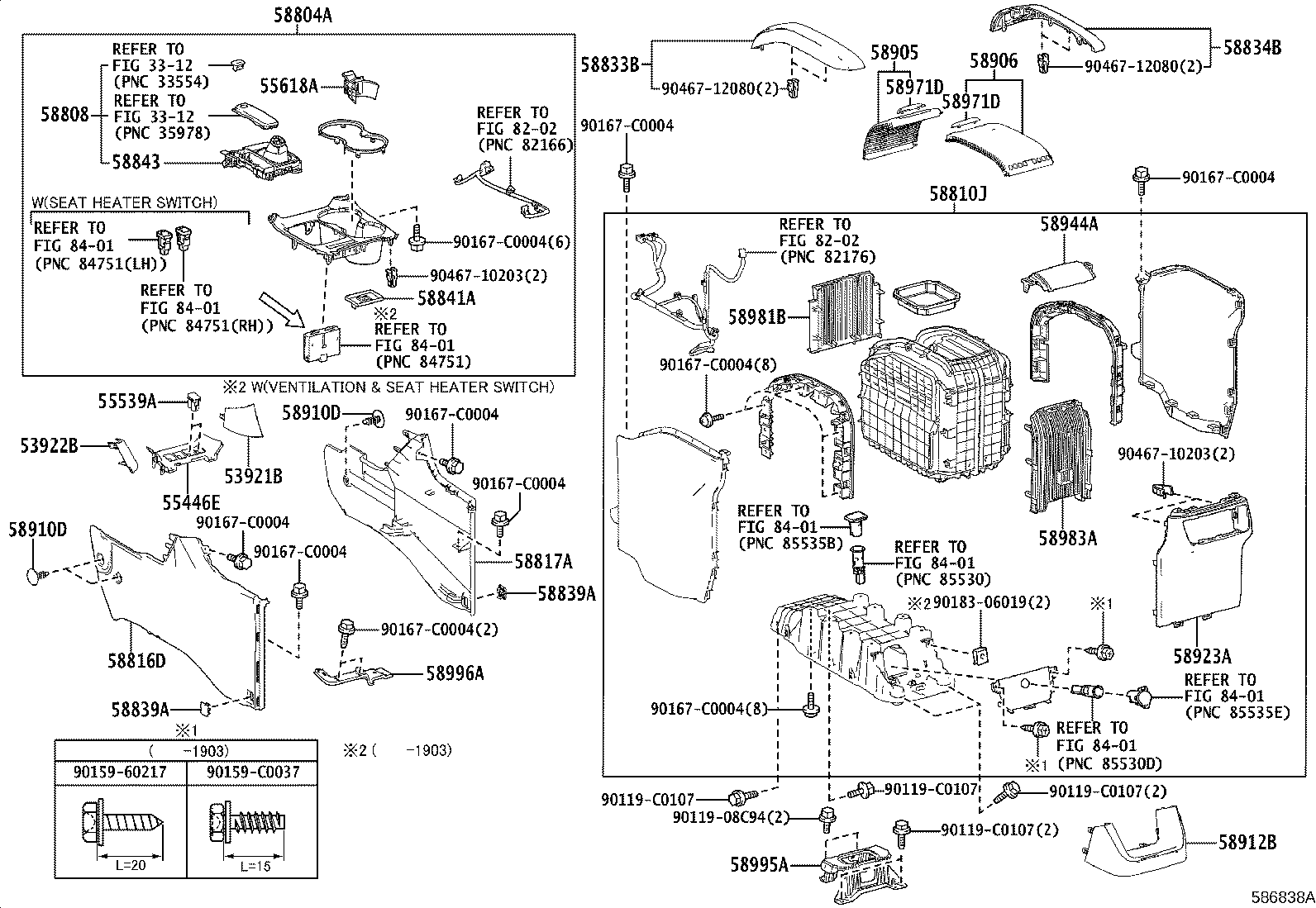

Figure 585512G 585512G 2015-03 → 2018-03 Figure 586838A 586838A 2018-03 → —

Part groups

PNCDescription
53921B Garnish, Front Panel, RH
53922B Garnish, Front Panel, LH
55446E Base, Switch Hole, NO.1
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58816D Insert, Console Box, Front NO.1
58817A Insert, Console Box, Front NO.2
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58839A Cover, Console Box Hole
58841A Cover, Shifting Hole
58843 Bezel, Shifting Hole
58905 Door Sub-assy, Console Compartment
58906 Door Sub-assy, Upper Console
58910D Clip(FOR CONSOLE BOX)
58912B Box, Rear Console, Lower
58923A Panel, Console Rear End
58944A Cover, Console, Rear
58971D Lever, Console Compartment Door Lock
58981B Retainer, Console Mounting, NO.1
58983A Retainer, Console Mounting
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
