Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

84 part groups · 2 illustrations

Illustrations

615219H 2015-03 → —

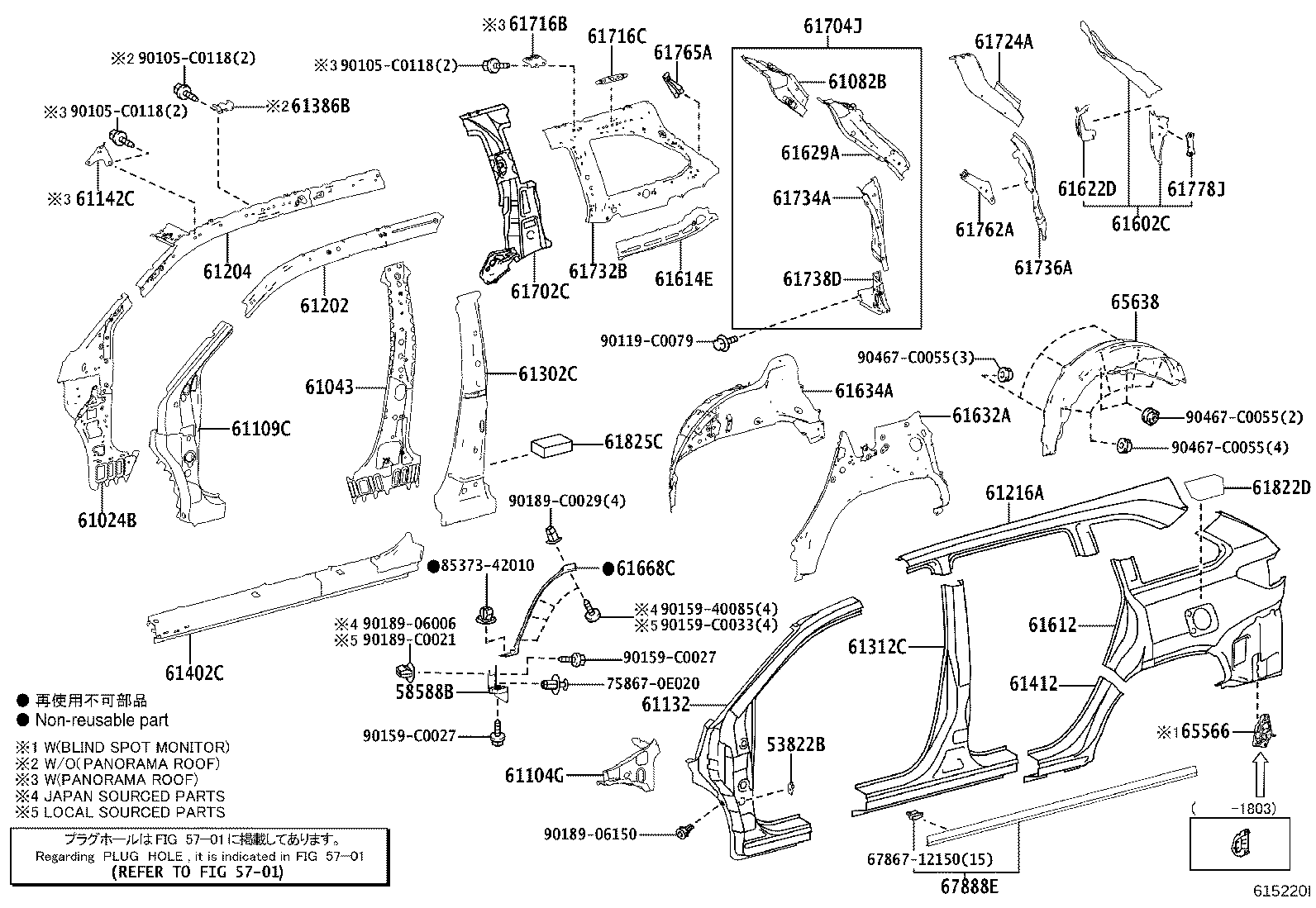

615220I 2015-03 → —

Part groups

PNC	Description
53821B	Bracket, Front Fender, Rear RH
53822B	Bracket, Front Fender, Rear LH
58578F	Pad, Rear Wheel House, RH
58588B	Pad, Rear Wheel House, LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61033B	Pillar Sub-assy, NO.2 Inner, RH
61043	Pillar Sub-assy, NO.2 Inner, LH
61081C	Reinforce, Roof Side, Inner RH
61082B	Reinforce, Roof Side, Inner LH
61103G	Gusset Sub-assy, Front Body Pillar, Lower RH
61104G	Gusset Sub-assy, Front Body Pillar, Lower LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109C	Reinforcement Sub-assy, Front Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61141C	Extension, Front Pillar, Upper Inner RH
61142C	Extension, Front Pillar, Upper Inner LH
61201	Rail Sub-assy, Roof Side, RH
61202	Rail Sub-assy, Roof Side, LH
61203	Rail Sub-assy, Roof Side, Inner RH
61204	Rail Sub-assy, Roof Side, Inner LH
61215C	Rail, Roof Side, Outer Rear RH
61216A	Rail, Roof Side, Outer Rear LH
61301B	Pillar, Center Body, Outer RH
61302C	Pillar Sub-assy, Center Body, Outer LH
61311C	Panel, Rear Body Front Outside, RH
61312C	Panel, Rear Body Front Outside, LH
61385B	Extension, Center Body Pillar, Inner RH
61386B	Extension, Center Body Pillar, Inner LH
61401C	Panel Sub-assy, Rocker, Outer RH
61402C	Panel Sub-assy, Rocker, Outer LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61601B	Panel Sub-assy, Quarter, RH
61602C	Panel Sub-assy, Quarter, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613E	Panel, Quarter, Inner RH
61614E	Panel, Quarter, Inner LH
61619D	Reinforcement, Quarter Panel, RH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61629A	Reinforcement, Quarter Panel, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61667C	Seal, Qaurter Panel, NO.1
61668C	Seal, Quarter Panel, NO.2
61701C	Panel Sub-assy, Roof Side, Outer RH
61702C	Panel Sub-assy, Roof Side, Outer LH
61703H	Reinforcement Sub-assy, Roof Side, Inner RH
61704J	Reinforcement Sub-assy, Roof Side, Inner LH
61715B	Extension, Roof Side, Inner Front RH
61715C	Bracket, Roof Side, RH
61716B	Extension, Roof Side, Inner Front LH
61716C	Bracket, Roof Side, LH
61723A	Reinforcement, Quarter Window Opening, RH NO.1
61724A	Reinforcement, Quarter Window Opening, LH NO.1
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61737D	Reinforcement, Roof Side, Inner RH
61738D	Reinforcement, Roof Side, Inner LH
61761A	Reinforce, Seat Belt Anchor, NO.1 Upper RH
61762A	Reinforce, Seat Belt Anchor, NO.1 Upper LH
61764B	Reinforcement, Seat Belt Anchor, NO.2 RH
61765A	Reinforcement, Seat Belt Anchor, NO.2 LH
61777D	Retainer, Back Door Side Stopper, RH
61778J	Retainer, Back Door Side Stopper, LH
61812B	Plate, Noise Control, RH
61822D	Plate, Noise Control, LH
61824C	Pad, Noise Shutter, NO.1
61825C	Pad, Noise Shutter, NO.2
65565	Patch, Side Panel Rear End, RH
65566	Patch, Side Panel Rear End, LH
65637	Liner, Rear Wheel House, RH
65638	Liner, Rear Wheel House, LH
67887G	Weatherstrip, Rocker Outer, RH
67888E	Weatherstrip, Rocker Outer, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
