Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

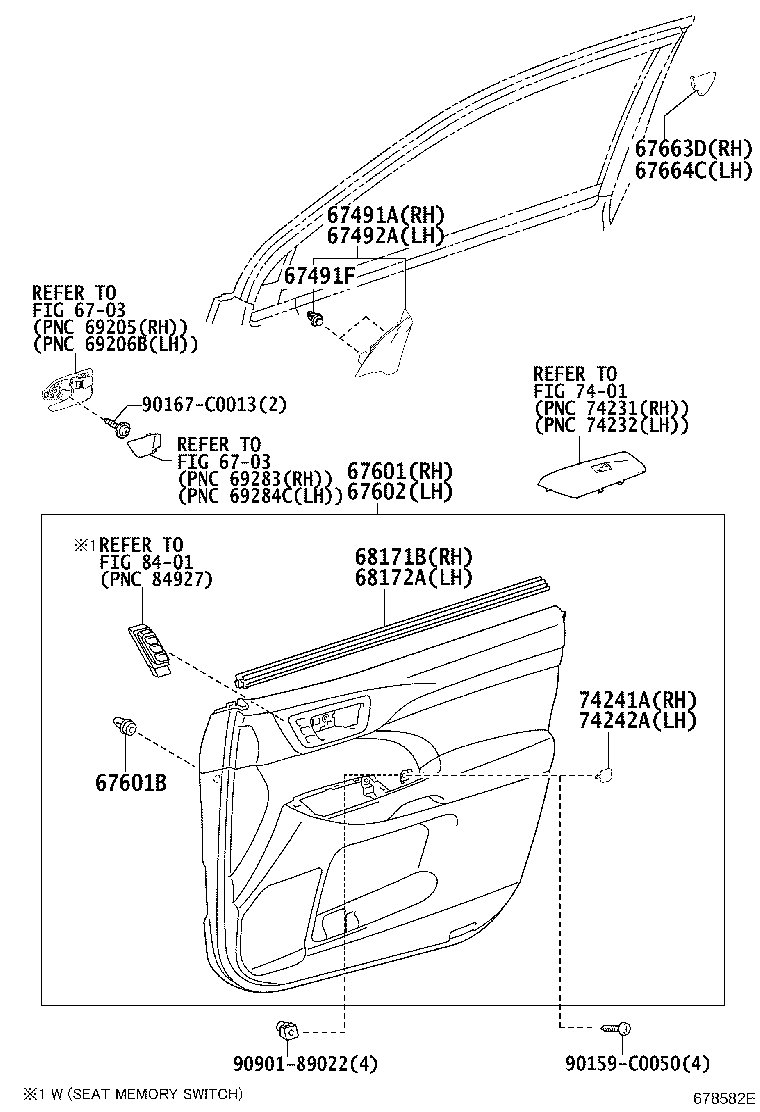

Front Door Panel & Glass
41 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67491F | Clip(FOR DOOR TRIM) |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67663D | Garnish, Door Frame, RH |
| 67664C | Garnish, Door Frame, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67837K | Seal, Front Door Vent |
| 67855D | Protector, Front Door Panel, RH |
| 67856D | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867A | Clip, Door Weatherstrip(FOR FRONT DOOR) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 67924 | Cushion, Front Door Stiffener, NO.2 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151D | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 74241A | Plug, Front Door Armrest, RH |
| 74242A | Plug, Front Door Armrest, LH |
| 75929 | Tape, Black Out Front Door, Inner Upper RH |
| 75939 | Tape, Black Out Front Door, Inner Upper LH |
| 75968 | Tape, Black Out Front Door, Inner Rear RH |
| 75969 | Tape, Black Out Front Door, Inner Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
