Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

27 part groups · 3 illustrations

Illustrations

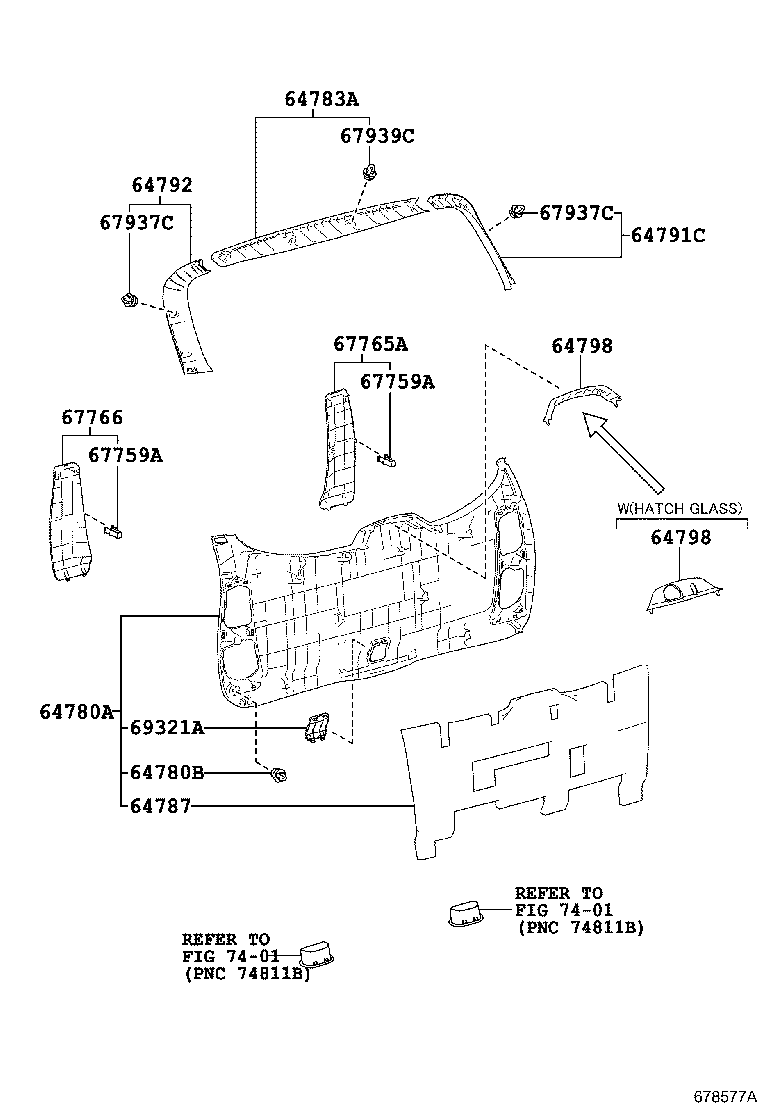

Figure 678575C 678575C 2015-03 → — Figure 678576D 678576D 2015-03 → — Figure 678577A 678577A 2015-03 → —

Part groups

PNCDescription
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64783A Trim, Back Window Panel, Upper
64787 Pad, Back Door Trim
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64798 Cover, Back Door Lock
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67282F Stopper, Back Door, Lwr LH
67293 Cushion, Back Door Lower Stopper
67372A Weight, Back Door
67759A Clip(FOR BACK DOOR TRIM BOARD)
67765A Cover, Back Door Service Hole, NO.1
67766 Cover, Back Door Service Hole, NO.2
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
67882D Weatherstrip, Back Door, NO.2
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67939C Clip(FOR BACK DOOR CENTER GARNISH)
68131 Glass, Back Door
69321A Cover, Back Door Lock
69477 Cushion, Back Door Upper Stopper
69478 Cushion, Back Door Lower Stopper
69806 Bracket Sub-assy, Back Door Glass Guide
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
