Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05

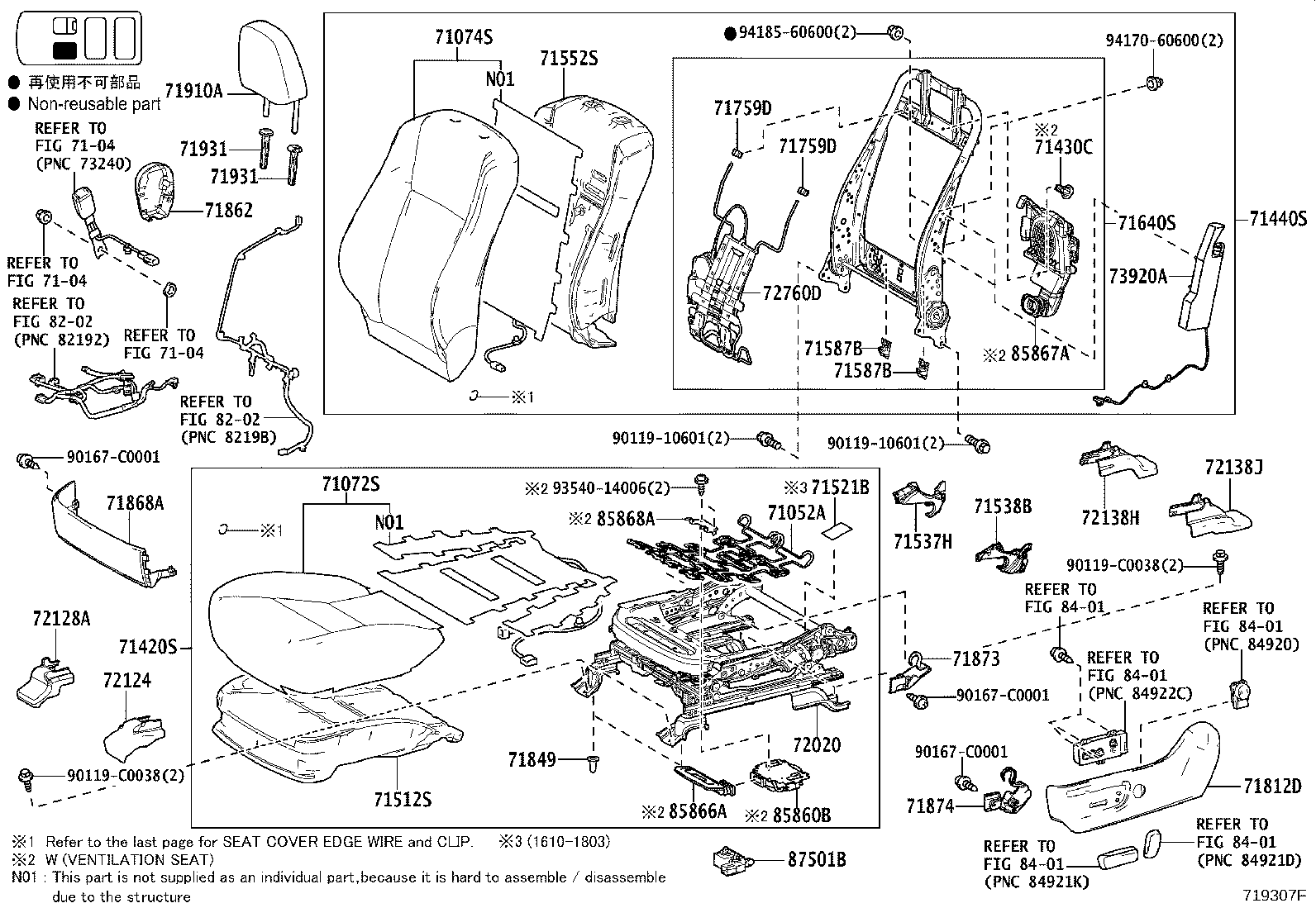

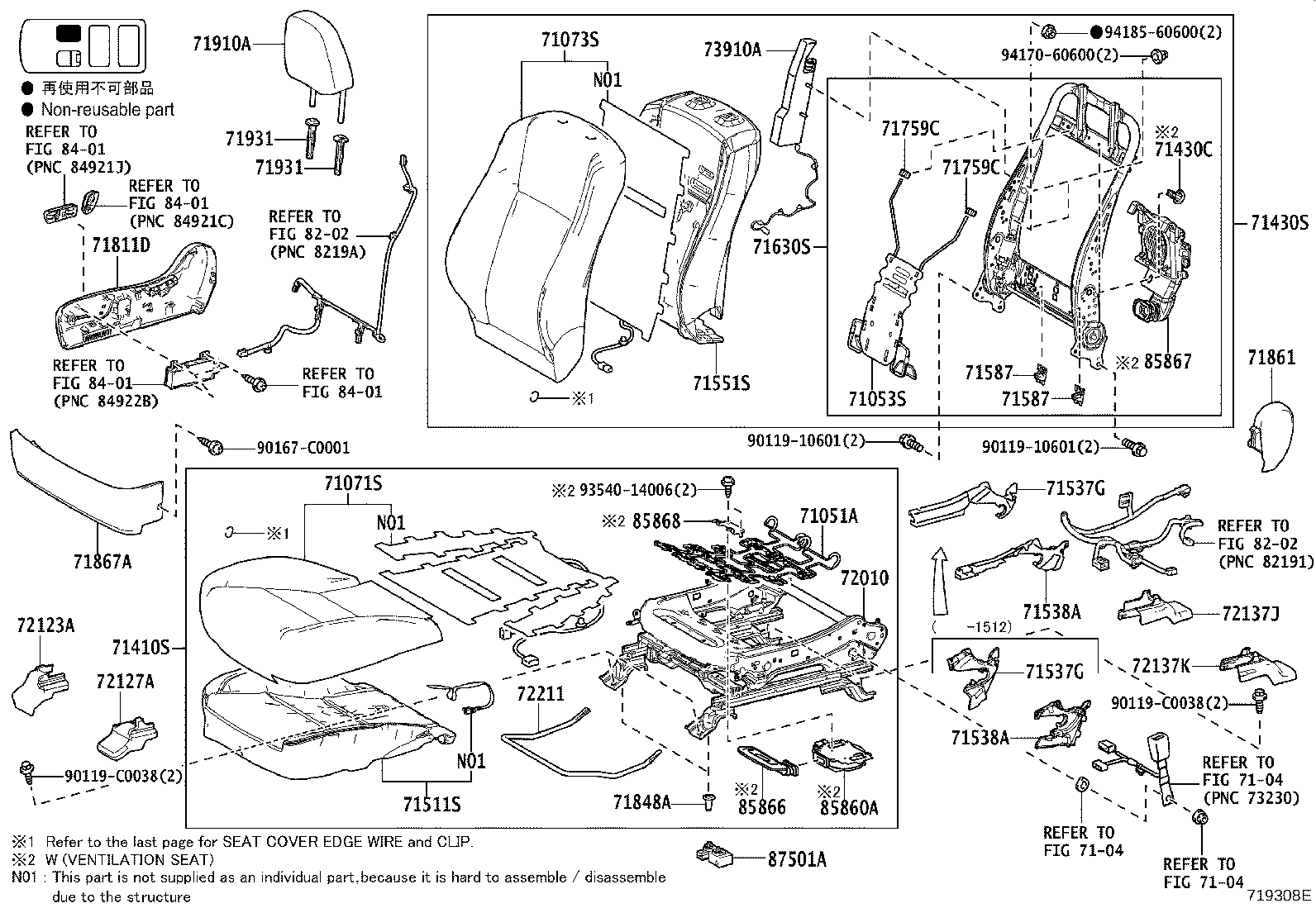

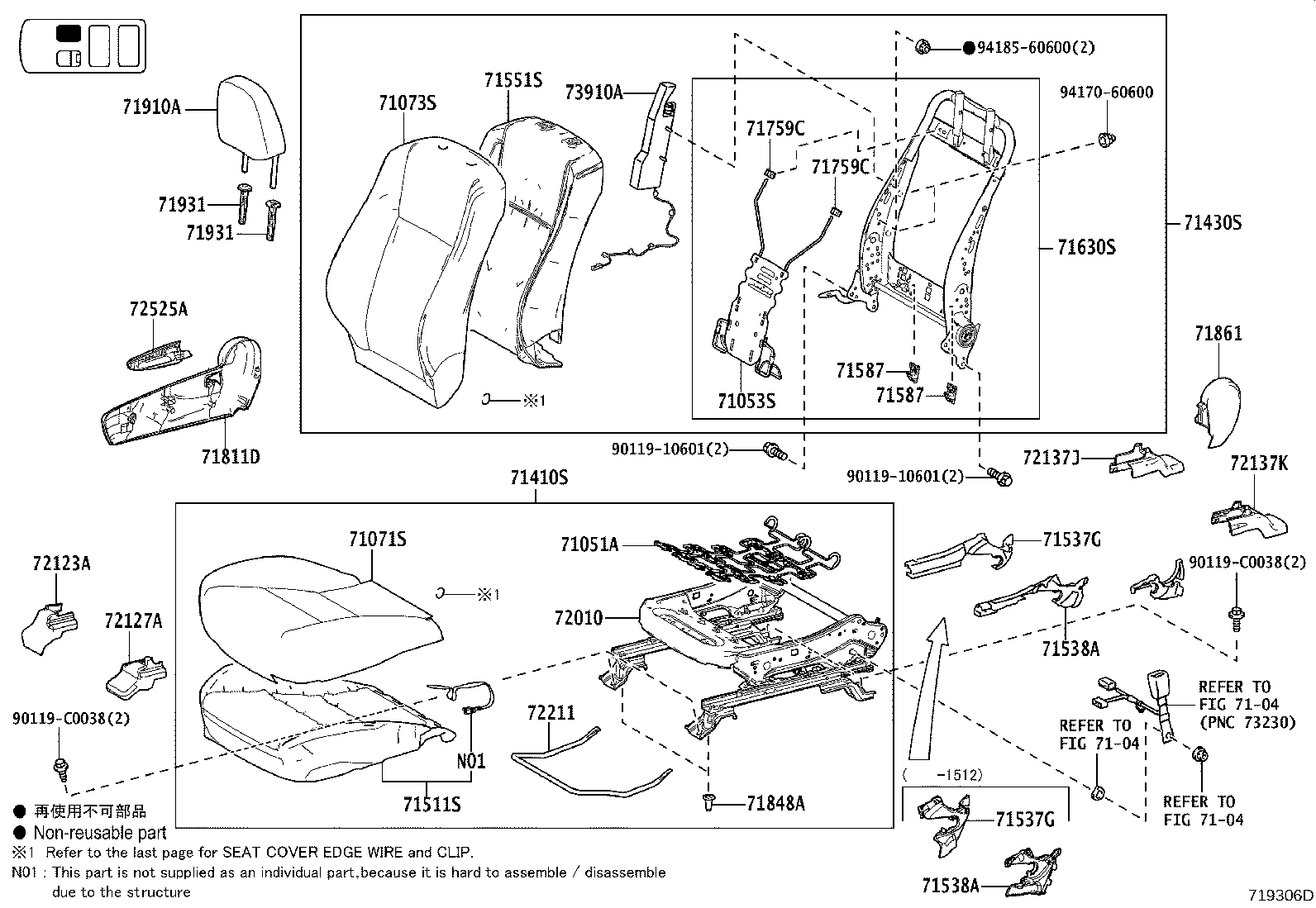

Front Seat & Seat Track
68 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 71051A | Spring Sub-assy, Front Seat Cushion, RH |
| 71052A | Spring Sub-assy, Front Seat Cushion, LH |
| 71053S | Spring Sub-assy, Front Seatback, RH |
| 71054S | Spring Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430C | Clip |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71521B | Pad,Front Seat Cushion Silencer |
| 71537G | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537H | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538B | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71587 | Protector, Front Seatback Edge |
| 71587B | Protector, Front Seatback Edge |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71759C | Hook, Front Seatback, NO.1 |
| 71759D | Hook, Front Seatback, NO.2 |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71849 | Cap, Seat Adjuster Cover, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71867A | Shield, Front Seat Cushion, Inner NO.1 RH |
| 71868A | Shield, Front Seat Cushion, Inner NO.1 LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72020 | Adjuster Assy, Front Seat, LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72127A | Cover, Seat Track Bracket, Inner Front RH |
| 72128A | Cover, Seat Track Bracket, Inner Front LH |
| 72137J | Cover, Front Seat Track, RH Rear Outer |
| 72137K | Cover, Front Seat Track, RH Rear Inner |
| 72138H | Cover, Front Seat Track, LH Rear Inner |
| 72138J | Cover, Front Seat Track, LH Rear Outer |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72493 | Handle, Vertical Adjusting, NO.2 |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
| 72760D | Adjuster Assy, Lumbar Support, LH |
| 73910A | Airbag Assy, Front Seat, RH |
| 73920A | Airbag Assy, Front Seat, LH |
| 85860A | Blower Assy, Seat Cushion Climate Control, RH |
| 85860B | Blower Assy, Seat Cushion Climate Control, LH |
| 85866 | Duct, Seat Cushion Climate Control, RH |
| 85866A | Duct, Seat Cushion Climate Control, LH |
| 85867 | Blower, Seatback Climate Control, RH |
| 85867A | Blower, Seatback Climate Control, LH |
| 85868 | Bracket, Seat Cushion Climate Control, RH |
| 85868A | Bracket, Seat Cushion Climate Control, LH |
| 87501A | Control Sub-assy, Seat Heater, RH |
| 87501B | Control Sub-assy, Seat Heater, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
