Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

29 part groups · 3 illustrations

Illustrations

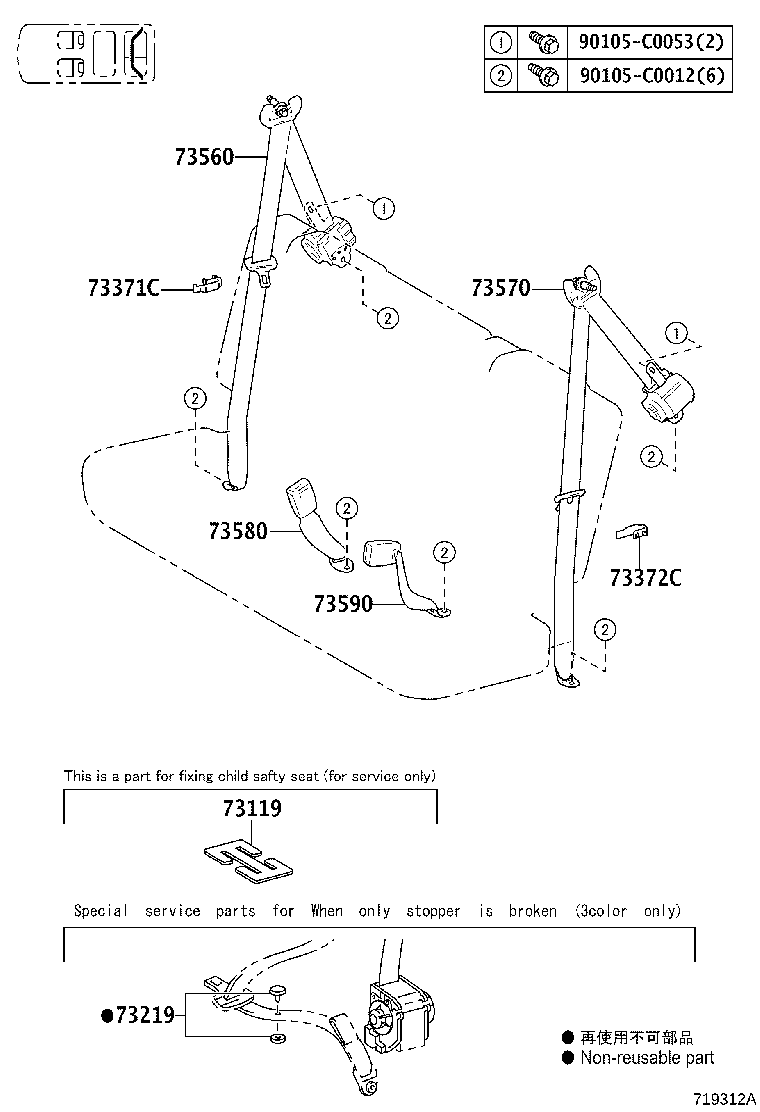

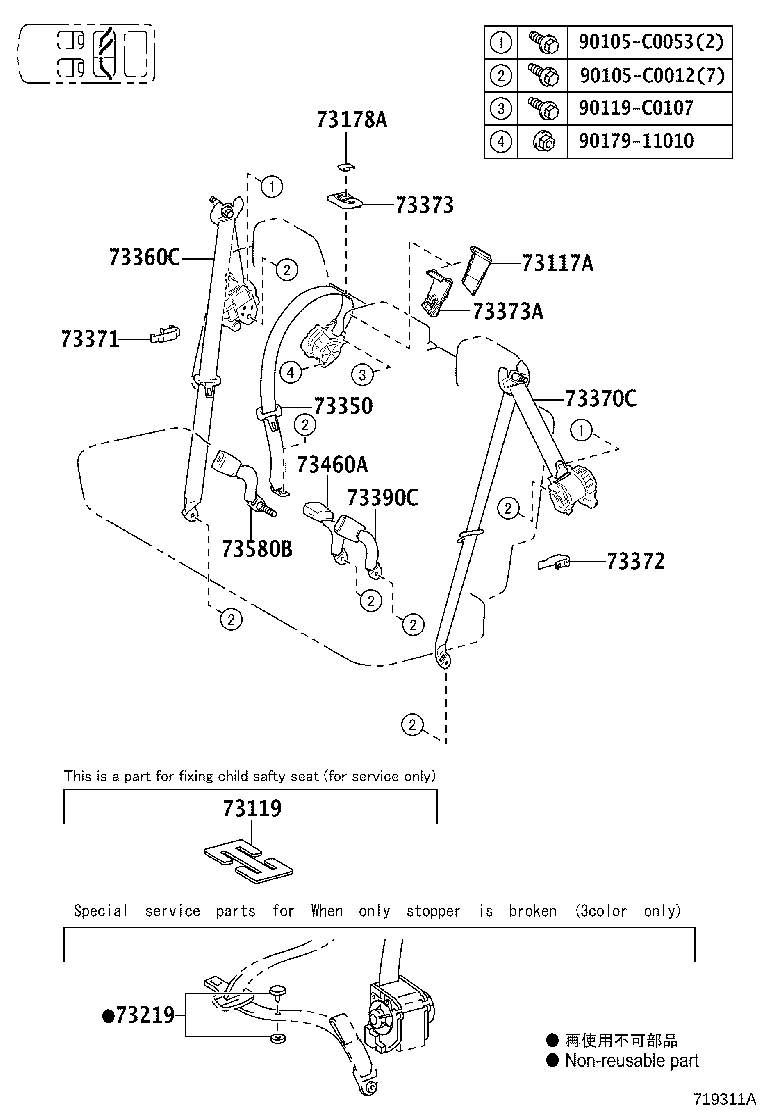

Figure 719310B 719310B 2015-03 → — Figure 719311A 719311A 2015-03 → — Figure 719312A 719312A 2015-03 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73117A Protector, Belt
73119 Plate, Seat Belt Webbing Clip
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73223B Cover, Front Seat Belt Retractor, RH
73224B Cover, Front Seat Belt Retractor, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73371C Hanger, Rear NO.2 Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73372C Hanger, Rear NO.2 Seat Shoulder Belt, LH
73373 Cover, Rear Seat Shoulder Belt
73373A Cover, Rear Seat Shoulder Belt, RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73460A Belt Assy, Rear Seat Center, Inner
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73580B Belt Assy, Rear Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
