Toyota Highlander (CHINA)
2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General
Supported model
Data version 2018-05
Wireless Door Lock

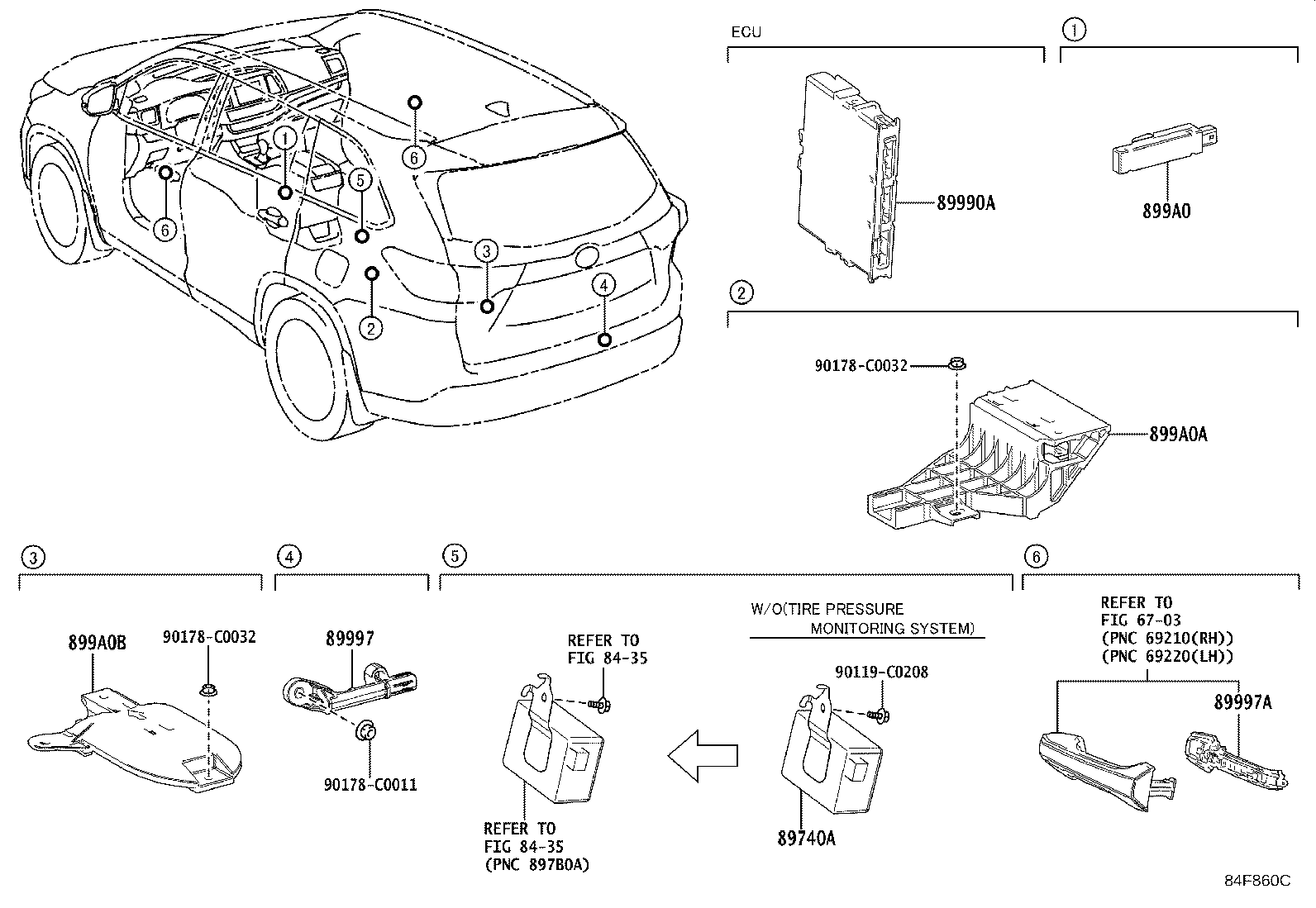

8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89740A | Receiver Assy, Smart Door Control |
| 89741 | Receiver, Door Control |
| 89990A | Computer Assy, Smart Key |
| 89997 | Antenna, Electrical Key |
| 89997A | Antenna, Electrical Key, NO.2 |
| 899A0 | Antenna Assy, Indoor Electrical Key, NO.1 |
| 899A0A | Antenna Assy, Indoor Electrical Key, NO.2 |
| 899A0B | Antenna Assy, Indoor Electrical Key, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
