Toyota Highlander (CHINA)

2015-03 → present · chassis ASU5#,GSU55 · catalogue 520320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

13 part groups · 3 illustrations

Illustrations

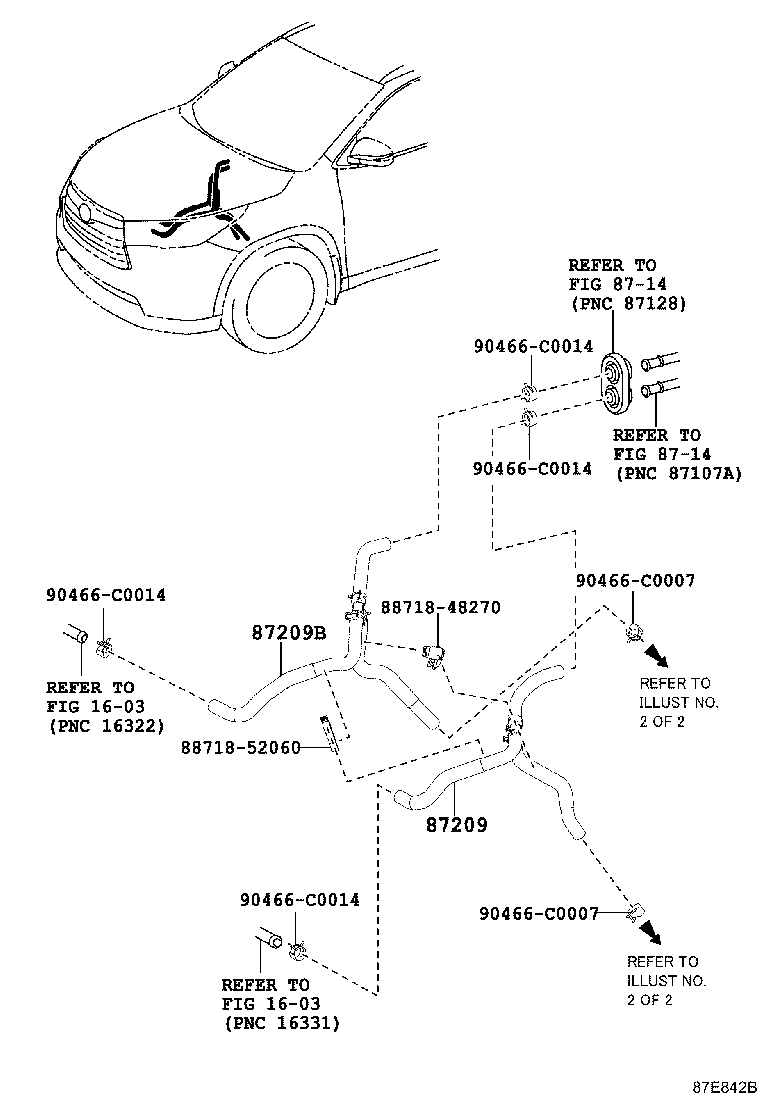

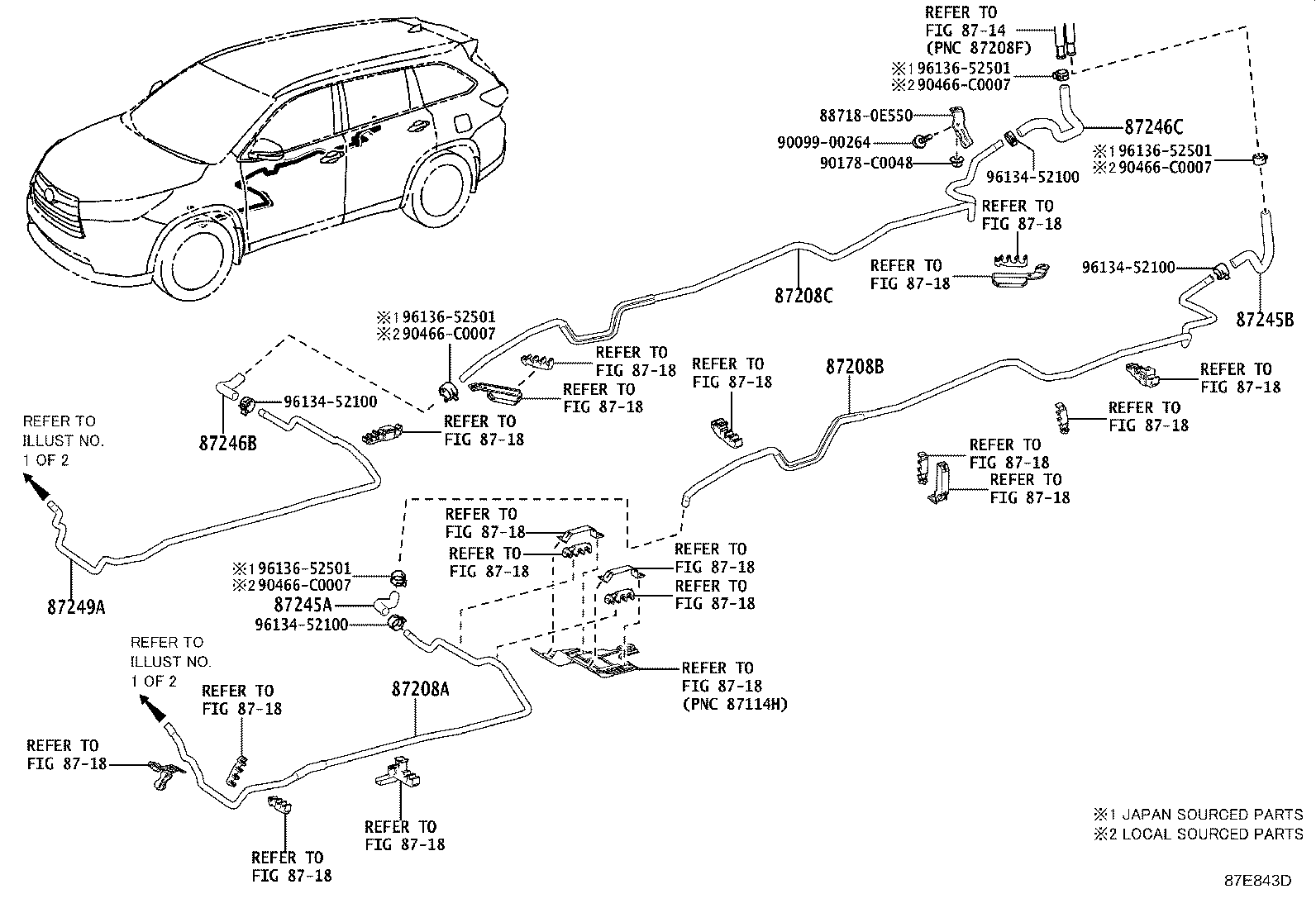

Figure 87E841B 87E841B 2015-03 → — Figure 87E842B 87E842B 2015-03 → — Figure 87E843D 87E843D 2015-03 → —

Part groups

PNCDescription
87121F Bracket, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87249A Pipe, Heater Water Outlet, A
87249X Pipe, Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
