Toyota Highlander (CHINA)
2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 520330 · General
Supported model
Data version 2024-04

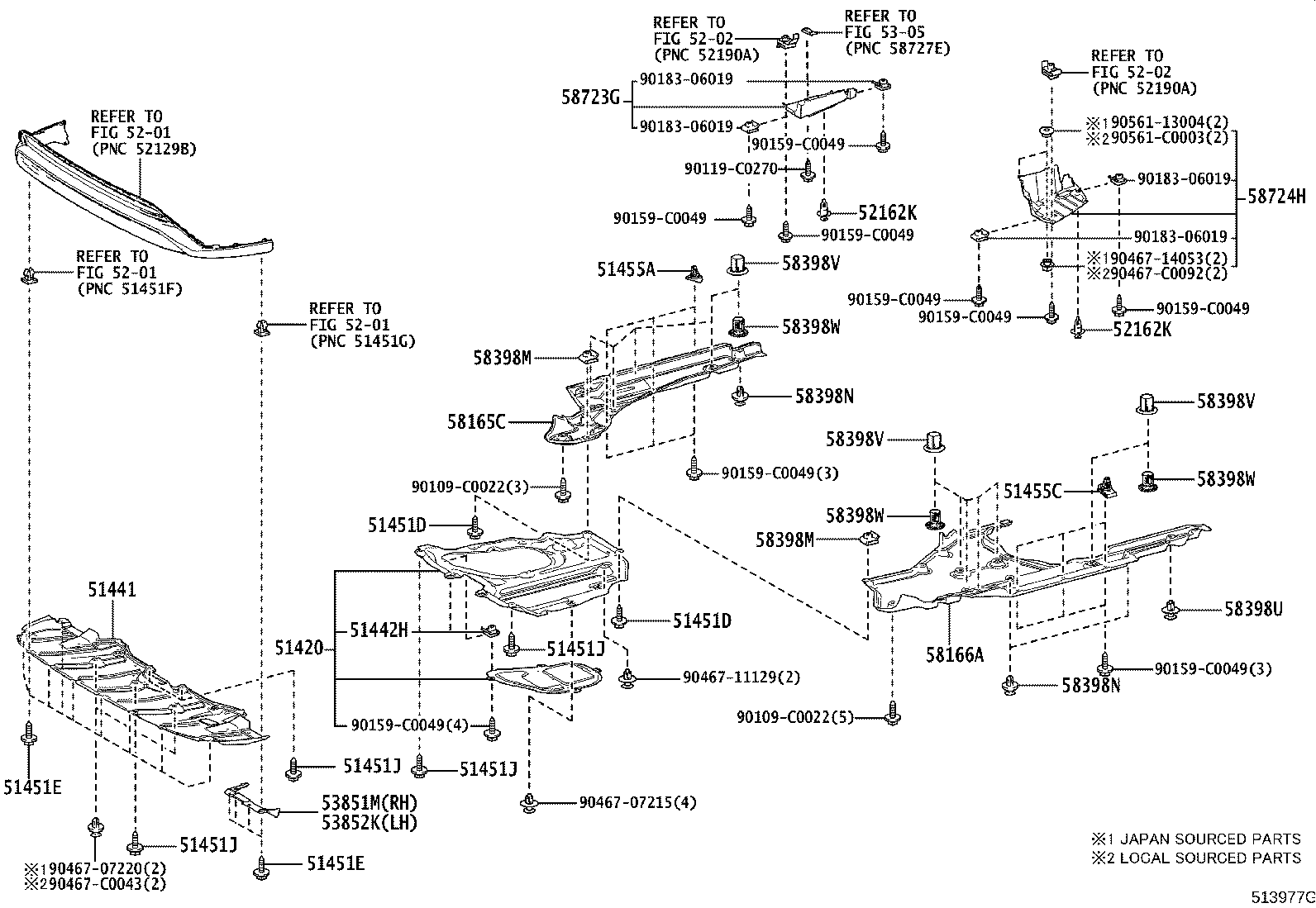

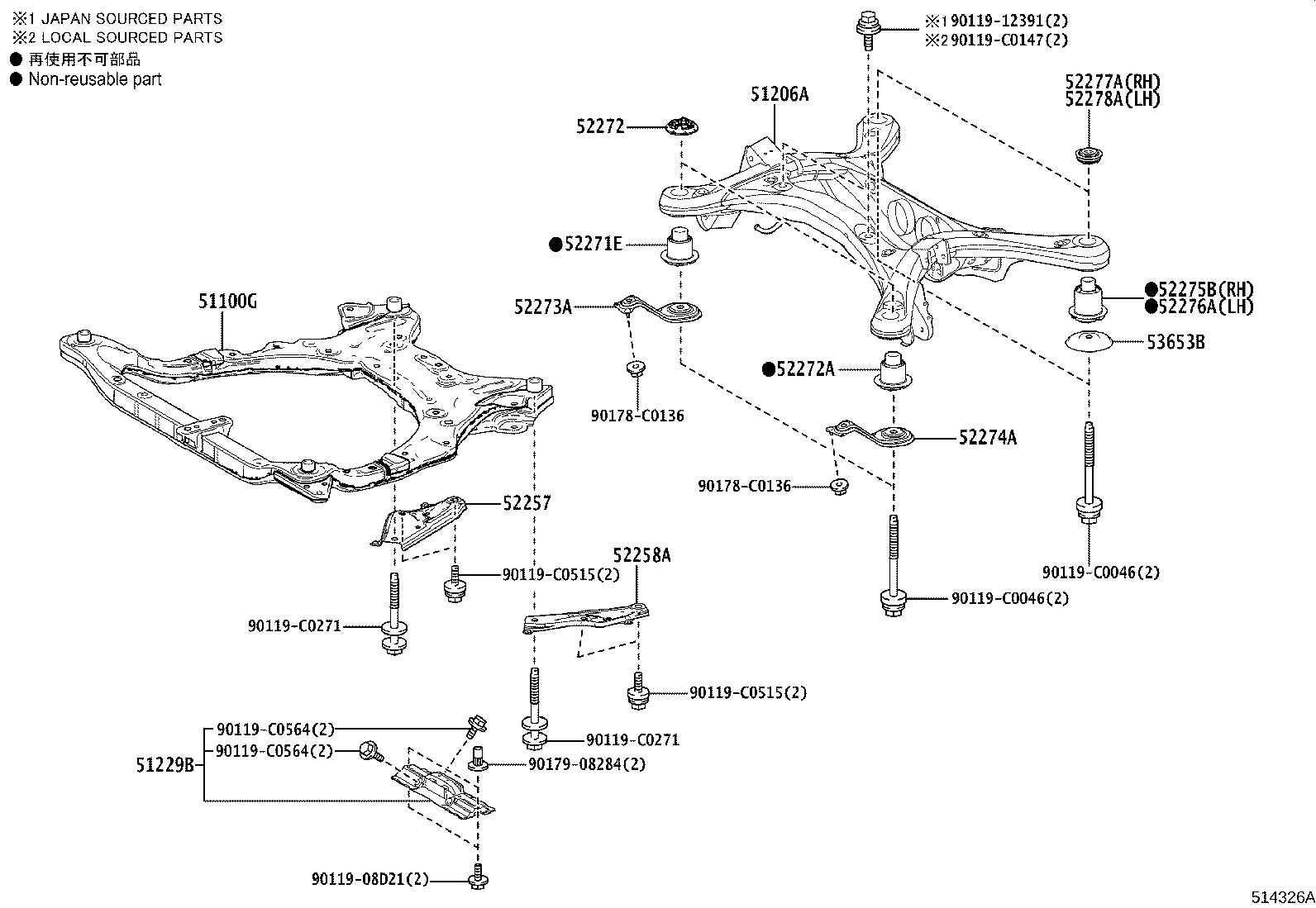

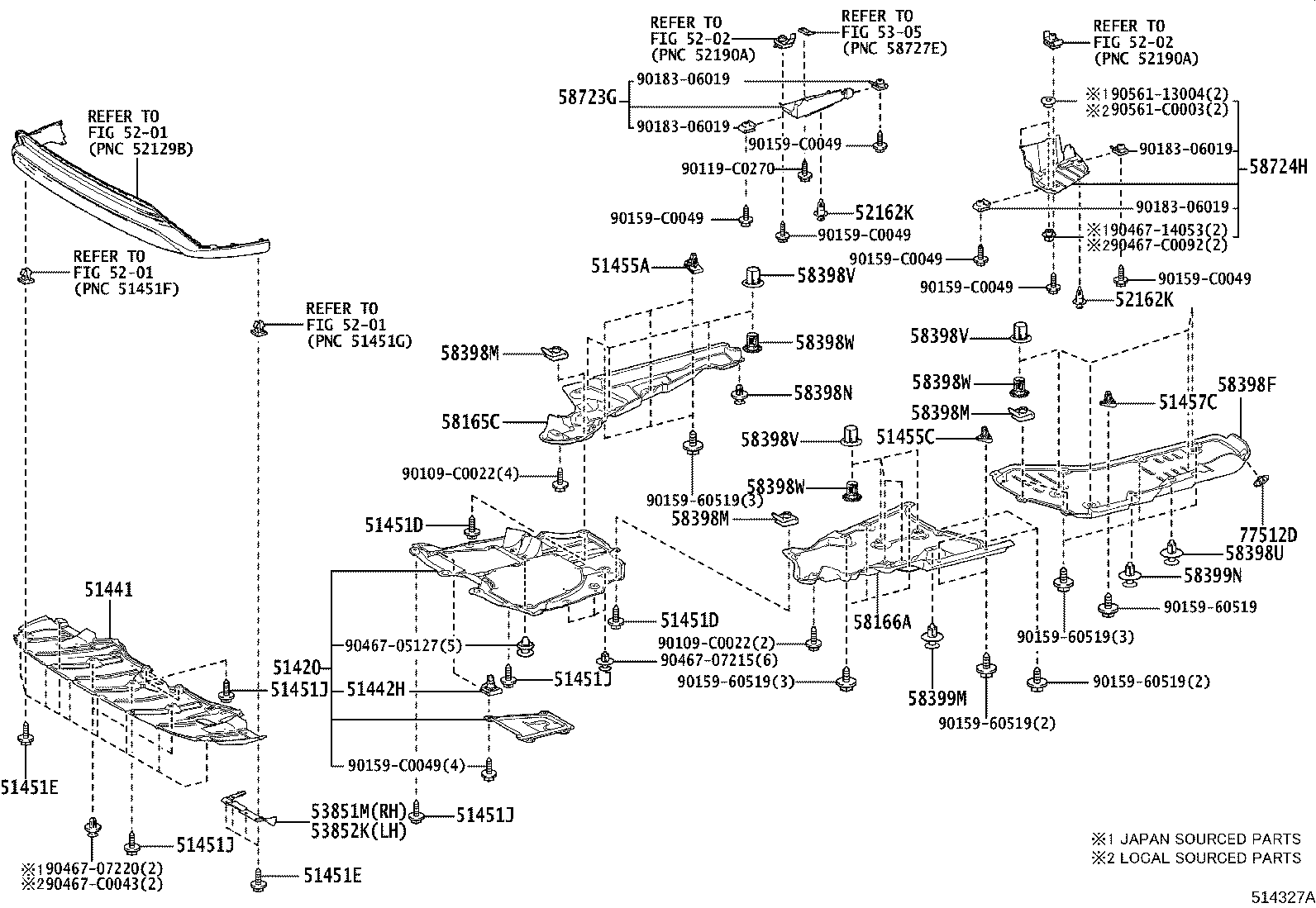

Suspension Crossmember & Under Cover
40 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100G | Frame Assy, Front |
| 51206A | Member Sub-assy, Rear Suspension |
| 51229B | Dumper, NO.2 Frame Crossmember Dynamic |
| 51420 | Cover Assy, Engine Under, NO.2 |
| 51441 | Cover, Engine Under, NO.1 |
| 51442H | Clip, Engine Under Cover, NO.2 |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51451J | Bolt, NO.1 |
| 51455A | Seal, Engine Under Cover, NO.1 |
| 51455C | Seal, Engine Under Cover, NO.2 |
| 51457C | Seal, Engine Under Cover, NO.3 |
| 52162K | Piece, Rear Bumper |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 52271E | Cushion, Rear Suspension Member Body Mounting, Front RH |
| 52272 | Stopper, Rear Suspension Member, Upper |
| 52272A | Cushion, Rear Suspension Member Body Mounting, Front LH |
| 52273A | Stopper, Rear Suspension Member, Lower RH |
| 52274A | Stopper, Rear Suspension Member, Lower LH |
| 52275B | Cushion, Rear Suspension Member Body Mount, Rear RH |
| 52276A | Cushion, Rear Suspension Member Body Mount, Rear LH |
| 52277A | Retainer, Rear Suspension Member Lower Stopper, RH |
| 52278A | Retainer, Rear Suspension Menber Lower Stopper, LH |
| 53653B | Brace, Rear Suspension, Lower |
| 53851M | Pad, Front Wheel Opening Extension, RH |
| 53852K | Pad, Front Wheel Opening Extension, LH |
| 58165C | Cover, Front Floor, RH |
| 58166A | Cover, Front Floor, LH |
| 58398F | Cover, Floor Under, NO.1 |
| 58398M | Clip, Floor Under Cover, NO.1 |
| 58398N | Clip, Floor Under Cover, NO.2 |
| 58398U | Clip, Floor Under Cover, NO.3 |
| 58398V | Clip, Floor Under Cover, NO.4 |
| 58398W | Clip, Floor Under Cover, NO.5 |
| 58399M | Clip, Floor Under Cover, NO.1 |
| 58399N | Clip, Floor Under Cover, NO.2 |
| 58723G | Protector, Luggage Compartment Side Cover, NO.1 |
| 58724H | Protector, Luggage Compartment Side Cover, NO.2 |
| 77512D | Bracket, Fuel Tank |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
