Toyota Highlander (CHINA)

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 520330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 2 illustrations

Illustrations

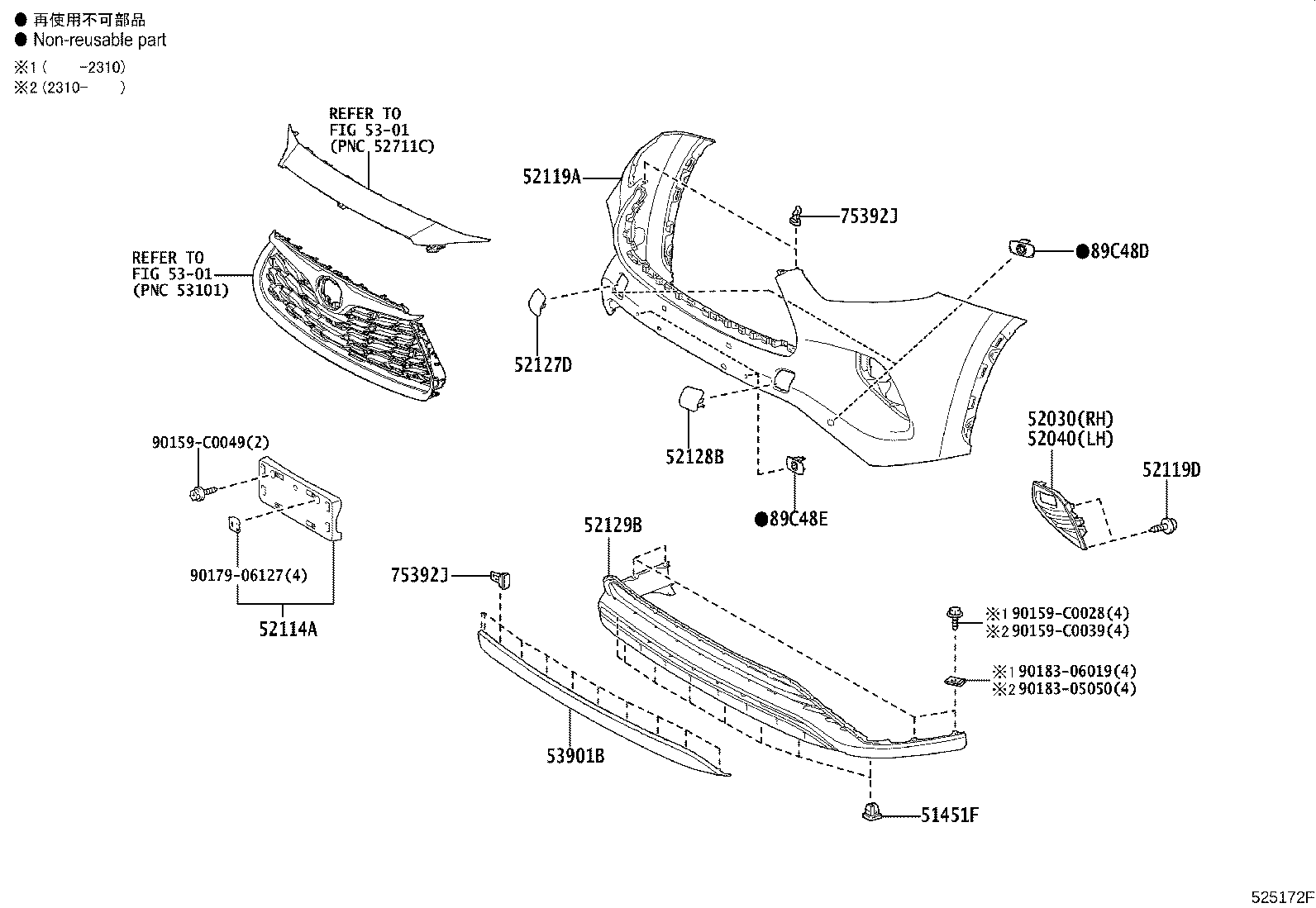

Figure 525171B 525171B 2021-08 → — Figure 525172F 525172F 2021-08 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52112F Extension, Front Bumper, RH
52113E Extension, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52145H Stay, Front Bumper Side, RH
52146C Stay, Front Bumper Side, LH
52527B Retainer, Front Bumper, Lower NO.2
52536C Clip, Front Bumper Side Retainer
52611A Absorber, Front Bumper Energy, RH
52618 Absorber, Front Bumper, Lower
53901B Panel Sub-assy, Front Valance
75392J Retainer, Outside Moulding
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
