Toyota Highlander (CHINA)

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 520330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

127 part groups · 5 illustrations

Illustrations

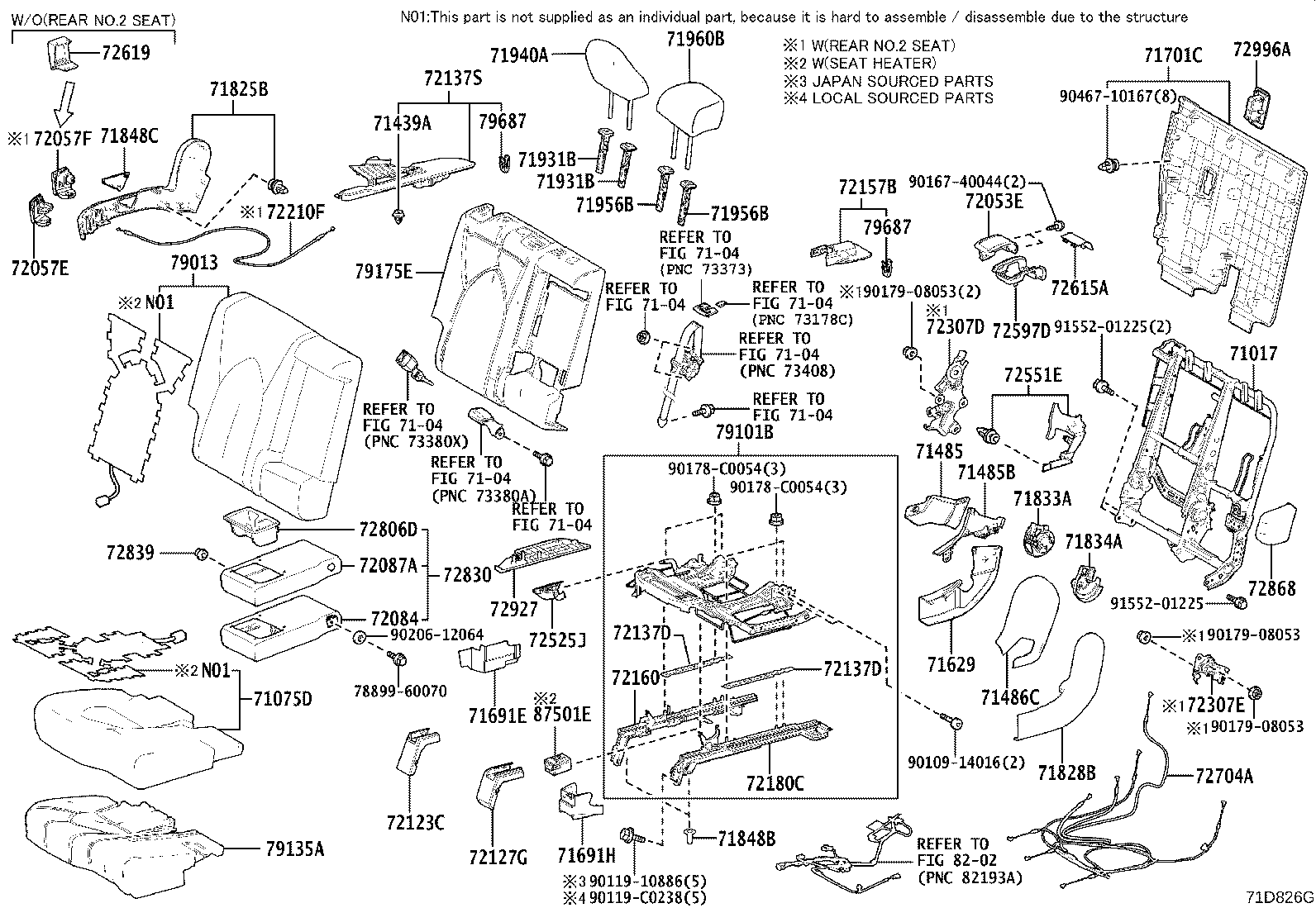

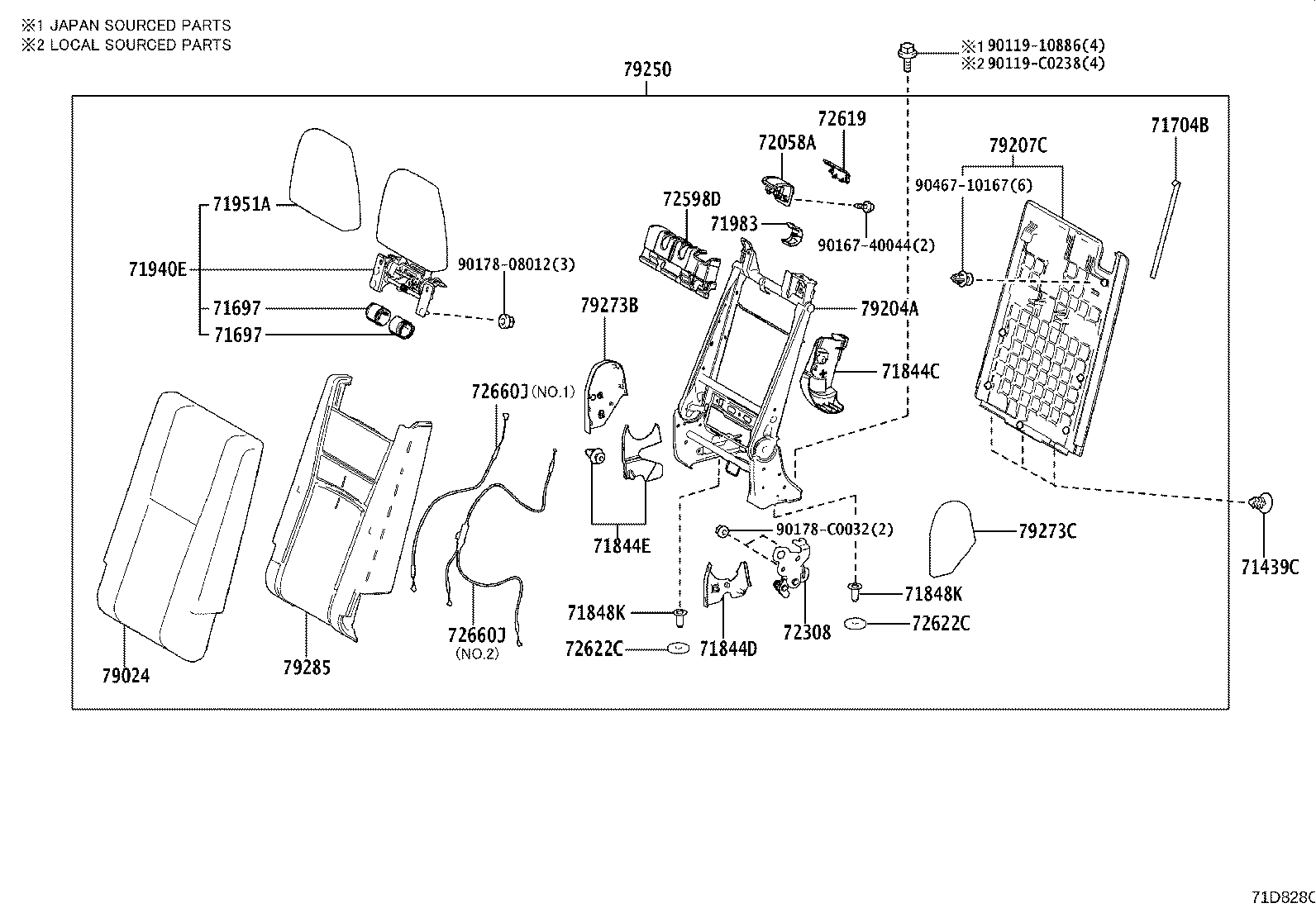

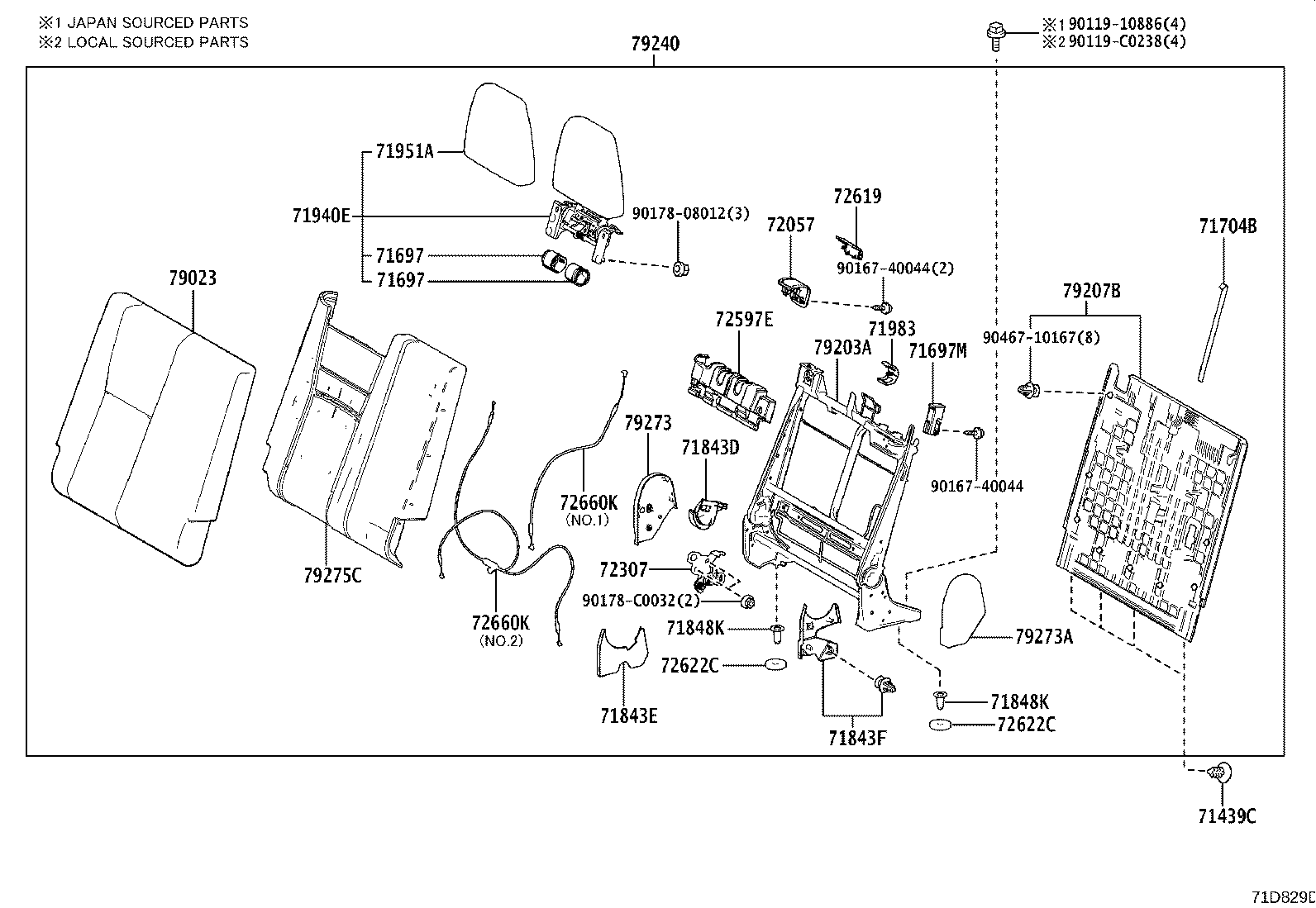

Figure 71D827F 71D827F 2021-08 → — Figure 71D826G 71D826G 2021-08 → — Figure 71D828C 71D828C 2021-08 → — Figure 71D829D 71D829D 2021-08 → — Figure 71D830A 71D830A 2021-08 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71075D Cover Sub-assy, Rear Seat Cushion, RH
71076E Cover Sub-assy, Rear Seat Cushion, LH
71439A Clip
71439C Clip
71485 Cover, Rear Seat Hinge
71485B Cover, Rear Seat Hinge
71486C Cover, Rear Seat Hinge, LH
71503A Pad Sub-assy, Rear Seat Cushion
71629 Cover, Rear Seat Cushion Hinge
71639 Cover, Rear Seat Cushion Hinge, LH
71691E Cover, Rear Seat Cushion Hinge, NO.1
71691H Cover, Rear Seat Cushion Hinge, NO.2
71691K Cover, Rear Seat Cushion Hinge, NO.4
71692H Cover, Rear Seat Cushion Hinge, NO.3
71697 Protector, Rear Seatback Edge
71697M Protector, Rear Seatback
71701C Board Sub-assy, Rear Seatback, RH
71702B Board Sub-assy, Rear Seatback, LH
71704B Band Sub-assy, Rear Side Seat, NO.2
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71833A Cover, Rear Seat Reclining, NO.1 RH
71834A Cover, Rear Seat Reclining, NO.1 LH
71834B Cover, Rear Seat Reclining, NO.2 LH
71843D Cover, Rear Seat Reclining, NO.2 RH
71843E Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71843F Cover, Rear Seat Reclining, LH (FOR RH SEAT)
71844C Cover, Rear Seat Reclining, NO.2 LH
71844D Cover, Rear Seat Reclining, LH (FOR LH SEAT)
71844E Cover, Rear Seat Reclining, RH (FOR LH SEAT)
71848B Cap, Seat Adjuster Cover, RH
71848C Cap, Seat Adjuster Cover, RH
71848K Cap, Seat Adjuster Cover
71849A Cap, Seat Adjuster Cover, LH
71849D Cap, Seat Adjuster Cover, LH
71931B Support Assy, Rear NO.1 Seat Headrest
71940A Headrest Assy, Rear Seat
71940E Headrest Assy, NO.2 Seat
71951A Cover, Rear Seat Headrest
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
71983 Guide, Rear Seat Headrest
72053E Lever Sub-assy, Reclining Remote Control, RH
72054C Lever Sub-assy, Reclining Remote Control, LH
72057 Lever Sub-assy, Rear Seat Lock Control, RH
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057F Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72057G Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72057H Lever Sub-assy, Rear Seat Lock Control, LH NO.2
72058A Lever Sub-assy, Rear Seat Lock Control, LH
72084 Pad Sub-assy, Rear Seat Center Armrest, NO.2
72087A Cover Sub-assy, Rear Seat Center Armrest
72123C Cover, Seat Track Bracket, Outer Front RH
72124C Cover, Seat Track Bracket, Outer Front LH
72127G Cover, Seat Track Bracket, Inner Front RH
72128G Cover, Seat Track Bracket, Inner Front LH
72134A Bracket, Front Inner Seat Track Upper Rail, LH
72137D Cover, Rear Seat Track, RH
72137S Cover, Seat Track Bracket, Outer Rear RH
72138A Cover, Rear Seat Track, LH
72138M Cover, Seat Track Bracket, Outer Rear LH
72157B Cover, Rear Seat Track Bracket, Inner RH
72158A Cover, Rear Seat Track Bracket, Inner LH
72160 Track Assy, Rear Seat, Outer RH
72170 Track Assy, Rear Seat, Outer LH
72180C Track Assy, Rear Seat, Inner RH
72190 Track Assy, Rear Seat Inner, LH
72210F Cable Assy, Seat Track Control
72307 Link Sub-assy, Reclining Control, RH
72307D Link Sub-assy, Reclining Control, RH NO.1
72307E Link Sub-assy, Reclining Control, RH NO.2
72308 Link Sub-assy, Reclining Control, LH
72308C Link Sub-assy, Reclining Control, LH NO.1
72308D Link Sub-assy, Reclining Control, LH NO.2
72525J Handle, Reclining Adjuster Release, RH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72551E Cover, Reclining Hinge, RH
72552E Cover, Reclining Hinge, LH
72597D Bezel, Reclining Remote Control, RH
72597E Bezel, Reclining Remote Control, RH NO.2
72598C Bezel, Reclining Remote Control, LH
72598D Bezel, Reclining Remote Control, LH NO.2
72615A Cover, Rear Seatback Lock Striker, RH
72616A Cover, Rear Seatback Lock Striker, LH
72619 Cover, Rear Seatback Lock Striker
72622C Bush, Rear Seatback Protector Shaft
72660J Cable Assy, Rear NO.2 Seat Cushion Lock
72660K Cable Assy, Rear NO.2 Seat Cushion Lock, RH
72693 Hook, Rear Seat Cushion Lock
72704A Cable, Rear Seat Reclining Control
72806D Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72868 Cover, Center Armrest Hinge, RH
72927 Cover, Rear Seat Cushion Under, RH
72928 Cover, Rear Seat Cushion Under, LH
72996A Cover, Rear Seatback
79013 Cover Sub-assy, NO.1 Seatback, RH
79014 Cover Sub-assy, NO.1 Seatback, LH
79021A Cover Sub-assy, NO.2 Seat Cushion
79023 Cover Sub-assy, NO.2 Seatback, RH
79024 Cover Sub-assy, NO.2 Seatback, LH
79101B Frame Sub-assy, NO.1 Seat Cushion, RH
79102 Frame Sub-assy, NO.1 Seat Cushion, LH
79135A Pad, NO.1 Seat Cushion, RH
79136B Pad, NO.1 Seat Cushion, LH
79175E Pad, NO.1 Seatback, RH
79185 Pad, NO.1 Seatback, LH
79203A Frame Sub-assy, NO.2 Seatback, RH
79204A Frame Sub-assy, NO.2 Seatback, LH
79207B Board Sub-assy, NO.2 Seatback, RH
79207C Board Sub-assy, NO.2 Seatback, LH
79240 Back Assy, NO.2 Seat, RH
79250 Back Assy, NO.2 Seat, LH
79273 Cover, NO.2 Seat Hinge
79273A Cover, NO.2 Seat Hinge, NO.2
79273B Cover, NO.2 Seat Hinge, NO.3
79273C Cover, NO.2 Seat Hinge, NO.4
79275C Pad, NO.2 Seatback, RH
79285 Pad, NO.2 Seatback, LH
79687 Clip
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
