Toyota Highlander (CHINA)

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 520330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

4 part groups · 2 illustrations

Illustrations

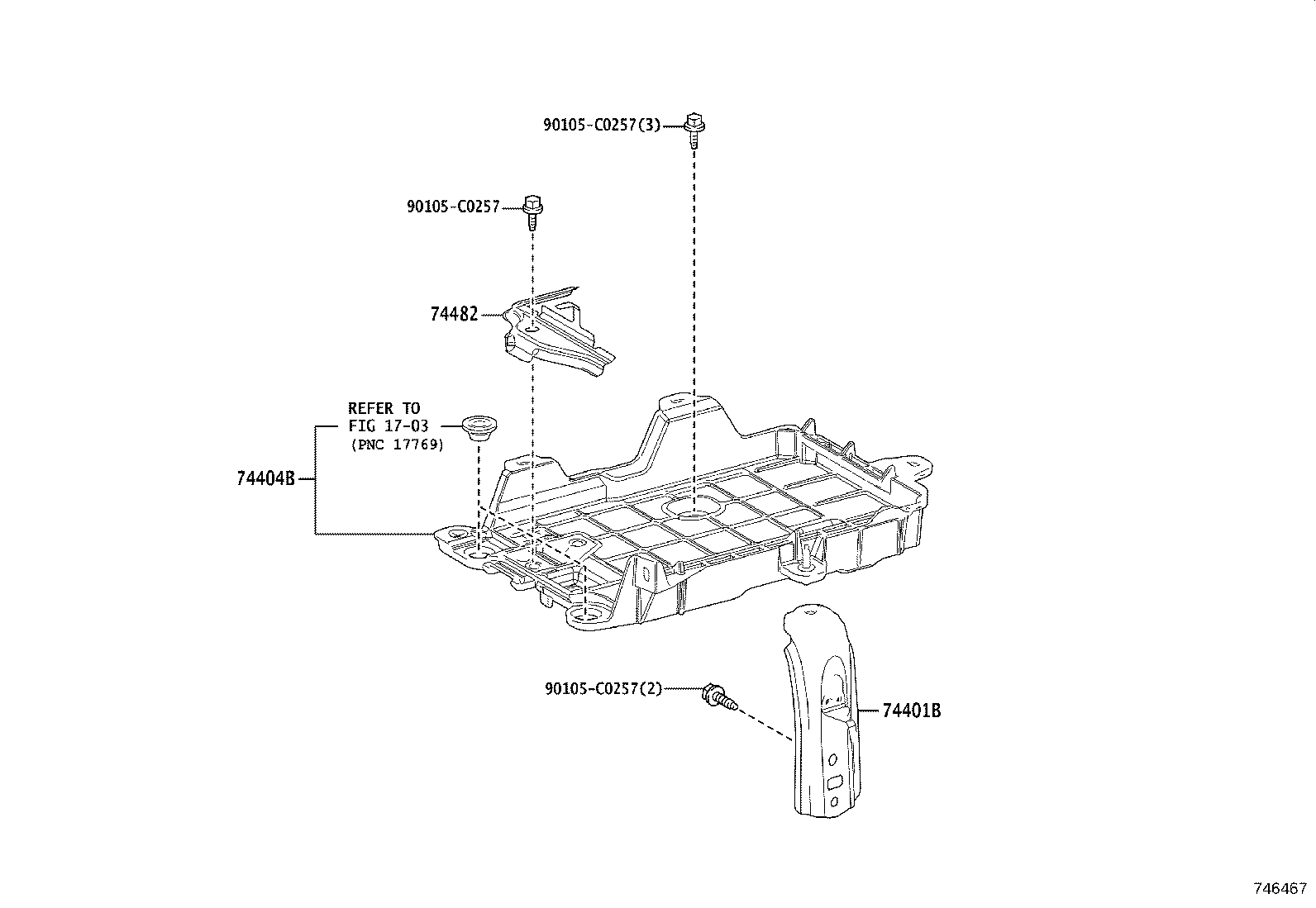

Figure 745685 745685 2021-08 → — Figure 746467 746467 2022-09 → —

Part groups

PNCDescription
74401B Bracket Sub-assy, Battery Carrier
74404B Clamp Sub-assy, Battery
74431 Tray, Battery
74482 Clamp, Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
