Toyota Highlander (CHINA)

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 520330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

7 part groups · 2 illustrations

Illustrations

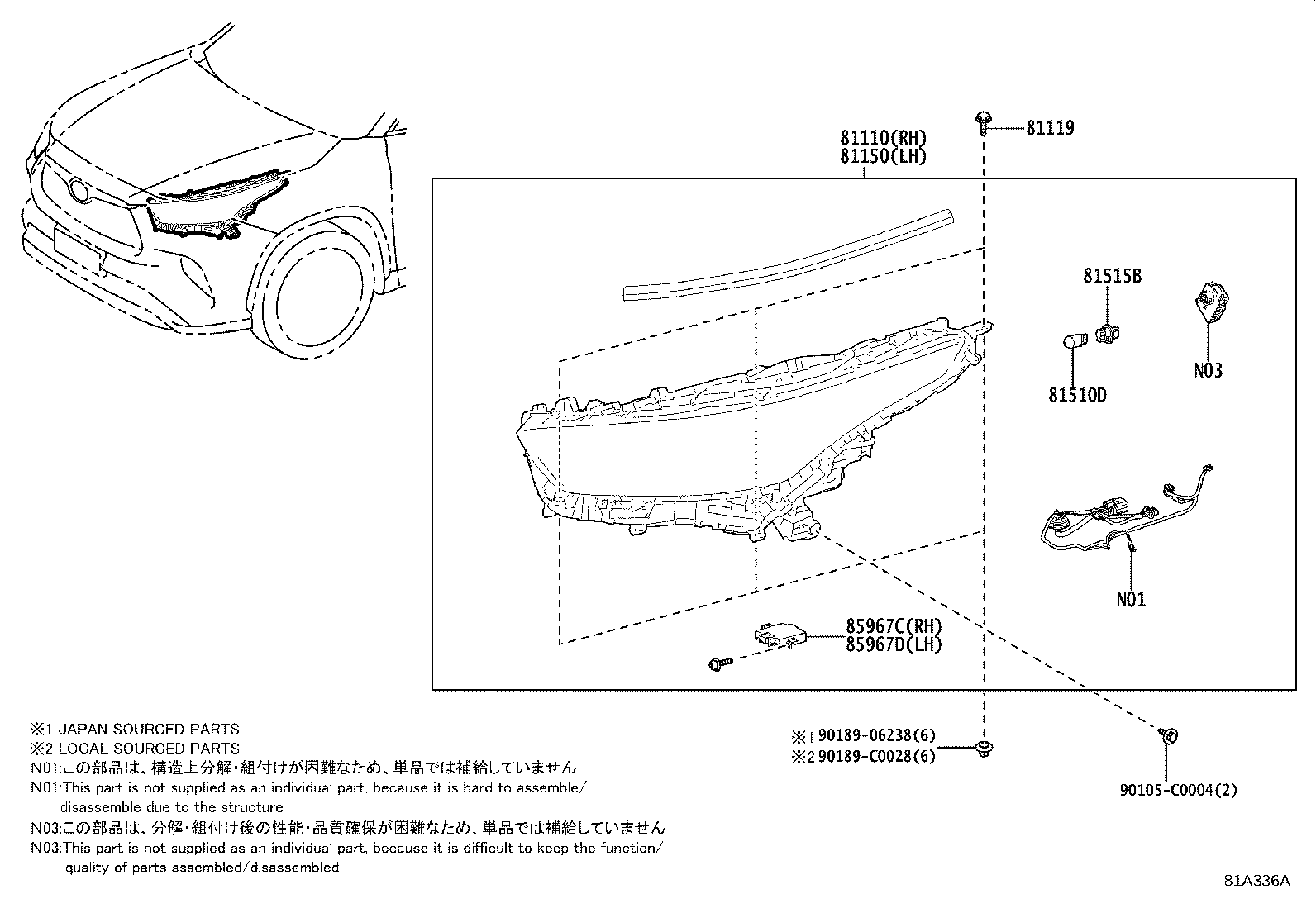

Figure 81A335A 81A335A 2021-08 → — Figure 81A336A 81A336A 2021-08 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81119 Screw, Headlamp
81150 Headlamp Assy, LH
81510D Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
85967C Computer, Light Control Led, RH
85967D Computer, Light Control Led, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
