Toyota Highlander (CHINA)

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 520330 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 2 illustrations

Illustrations

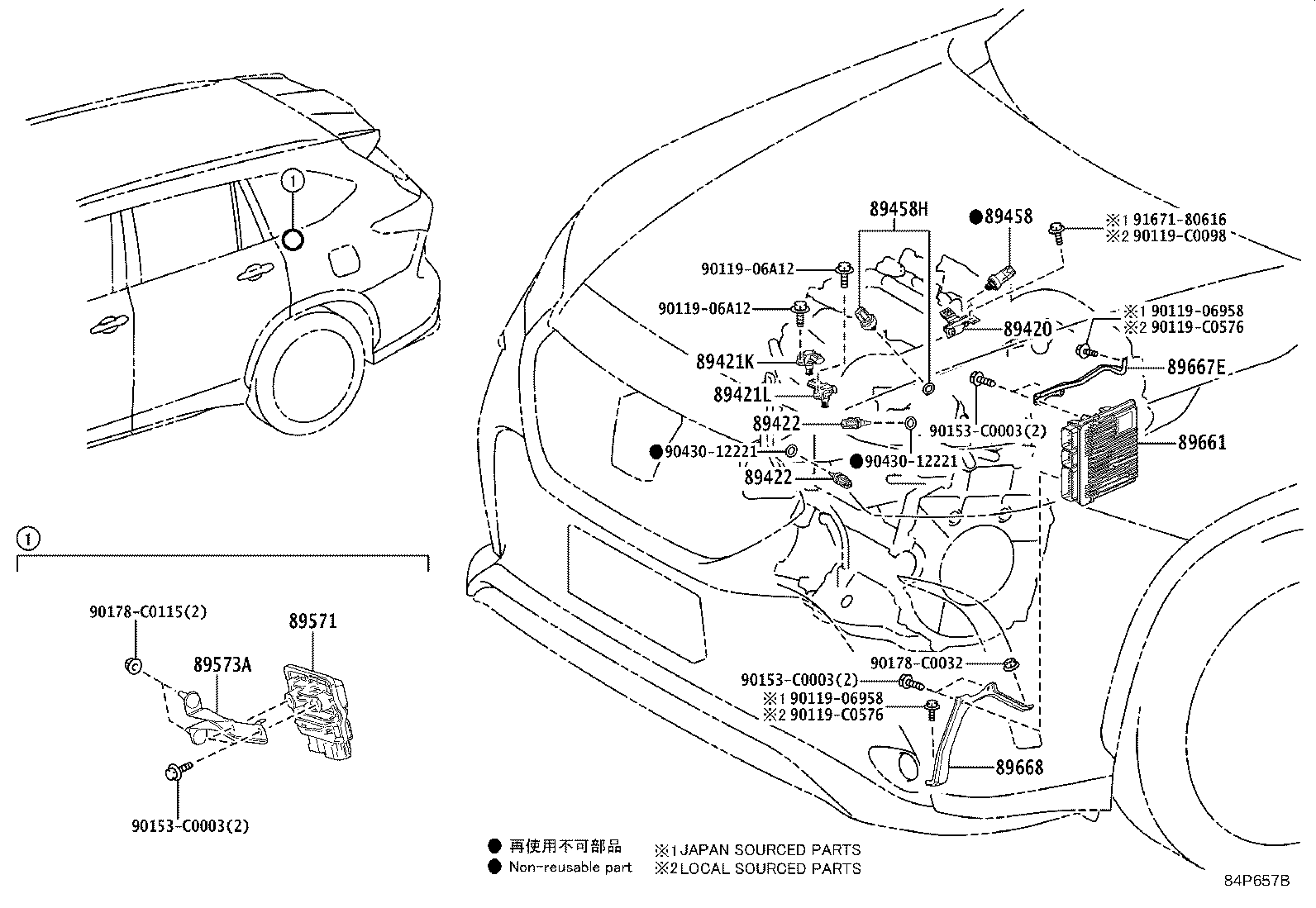

Figure 84N232B 84N232B 2021-08 → — Figure 84P657B 84P657B 2022-09 → —

Part groups

PNCDescription
89420 Sensor Assy, Vacuum
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89448D Sensor, Oil Pressure & Temperature
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89571 Computer, Fuel Pump Control
89573 Bracket, Fuel Pump Control Computer
89573A Bracket, Fuel Pump Control Computer, NO.2
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
