Toyota Highlander (CHINA)

2021-08 → present · chassis AXUH7#,SXUA75 · catalogue 520330 · General

Supported model Data version 2024-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

10 part groups · 2 illustrations

Illustrations

Figure 868711B

868711B 2021-08 → 2024-05

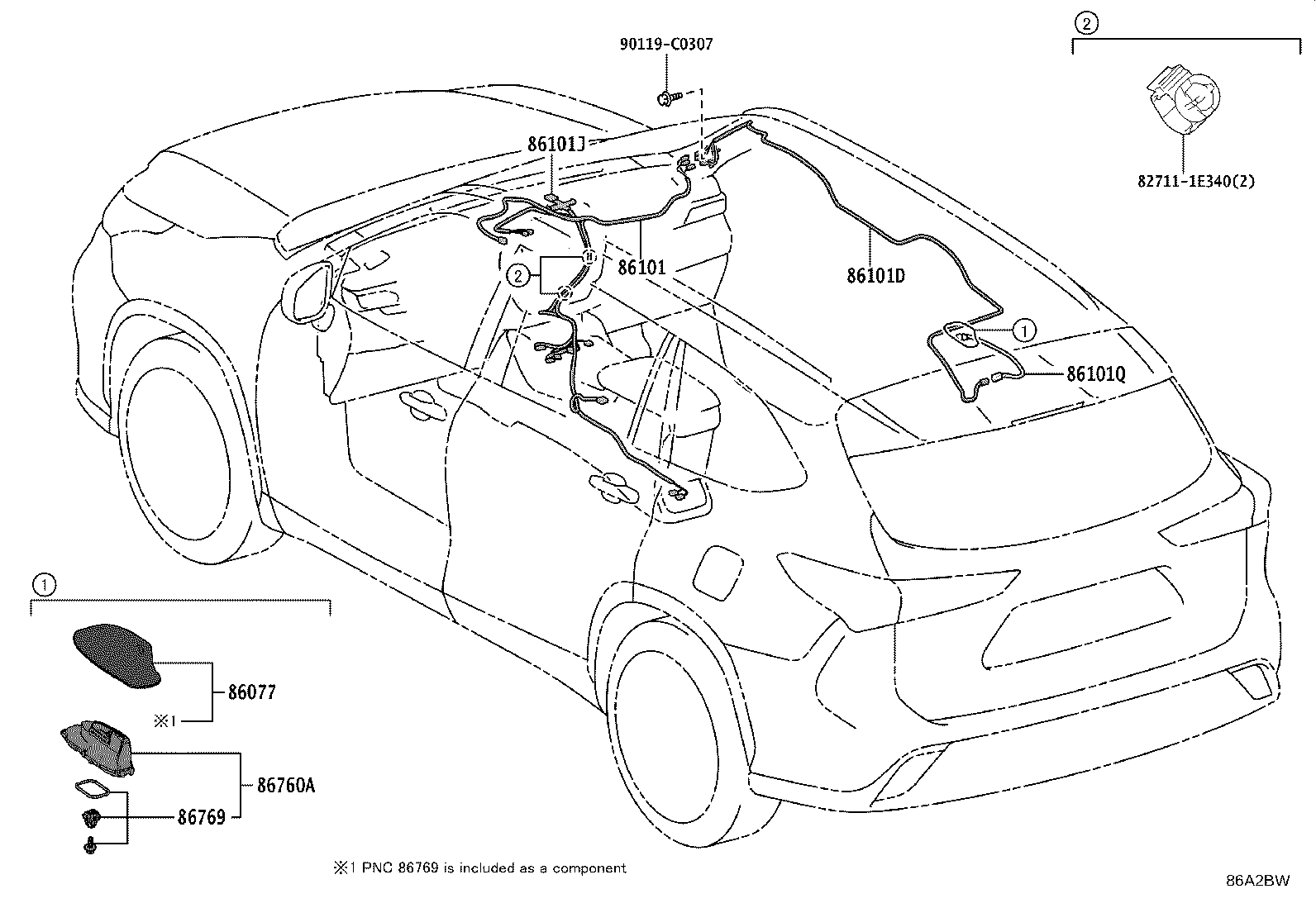

Figure 86A2BW

86A2BW 2024-05 → —

Part groups

PNC	Description
86077	Cover Kit, Antenna
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86101Q	Cord Sub-assy, Antenna, NO.4
86101R	Cord Sub-assy, Antenna, NO.5
86101V	Cord Sub-assy, Antenna, NO.6
86300B	Antenna Assy, Amplifier, NO.1
86760A	Antenna Assy, Telephone
86769	Housing, Roof Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
