Heating & Air Conditioning - Water Piping

28 part groups · 8 illustrations

Illustrations

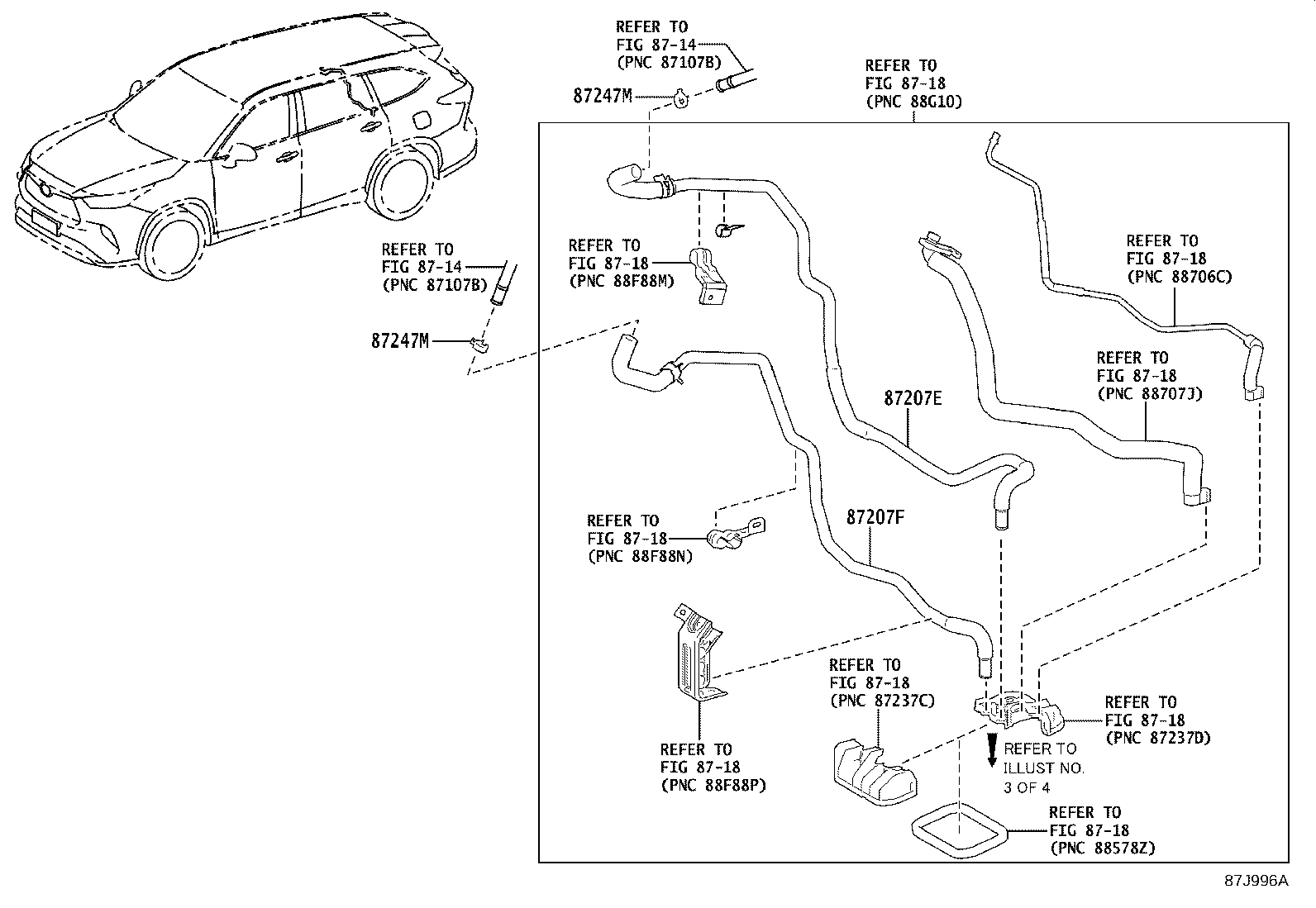

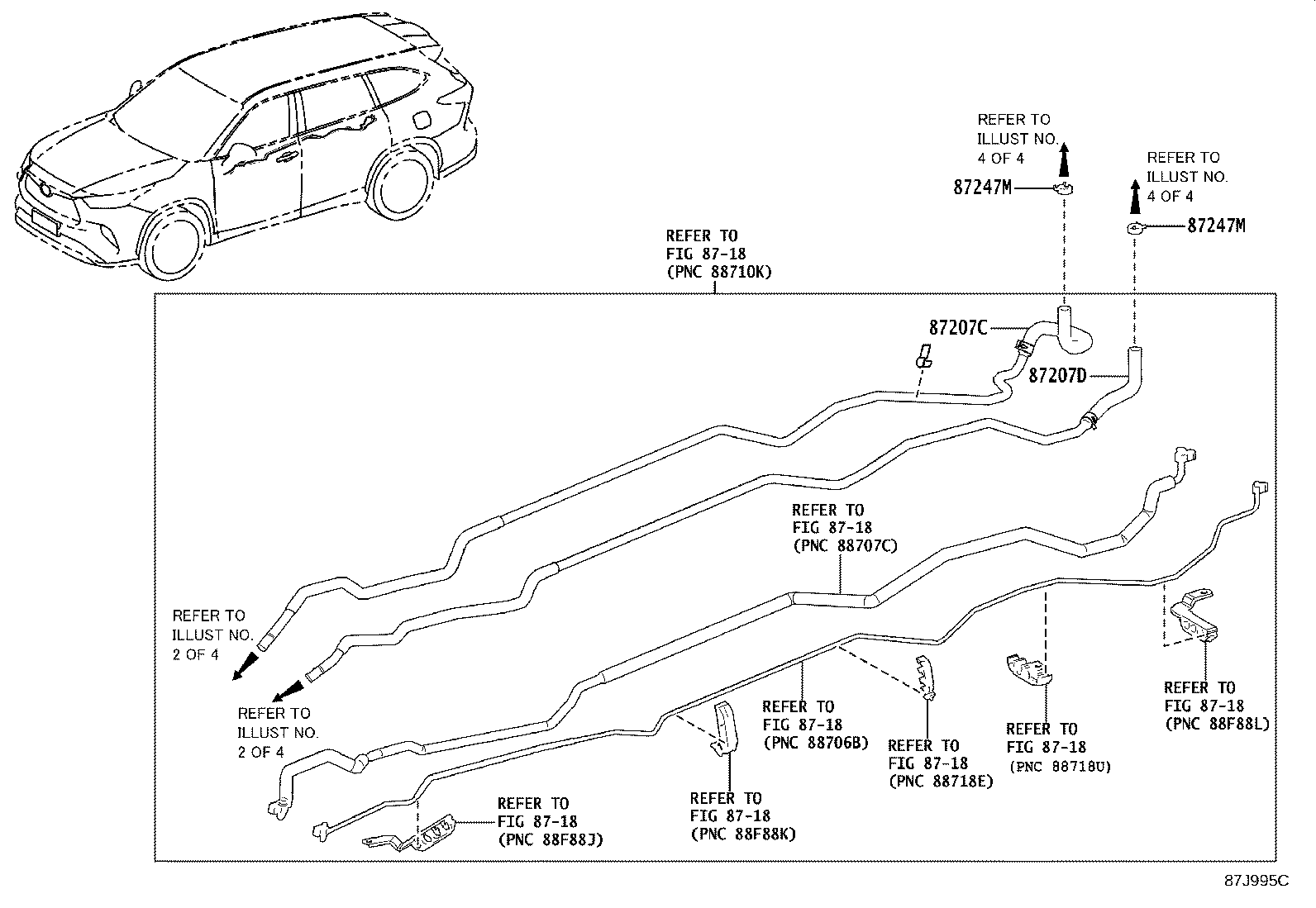

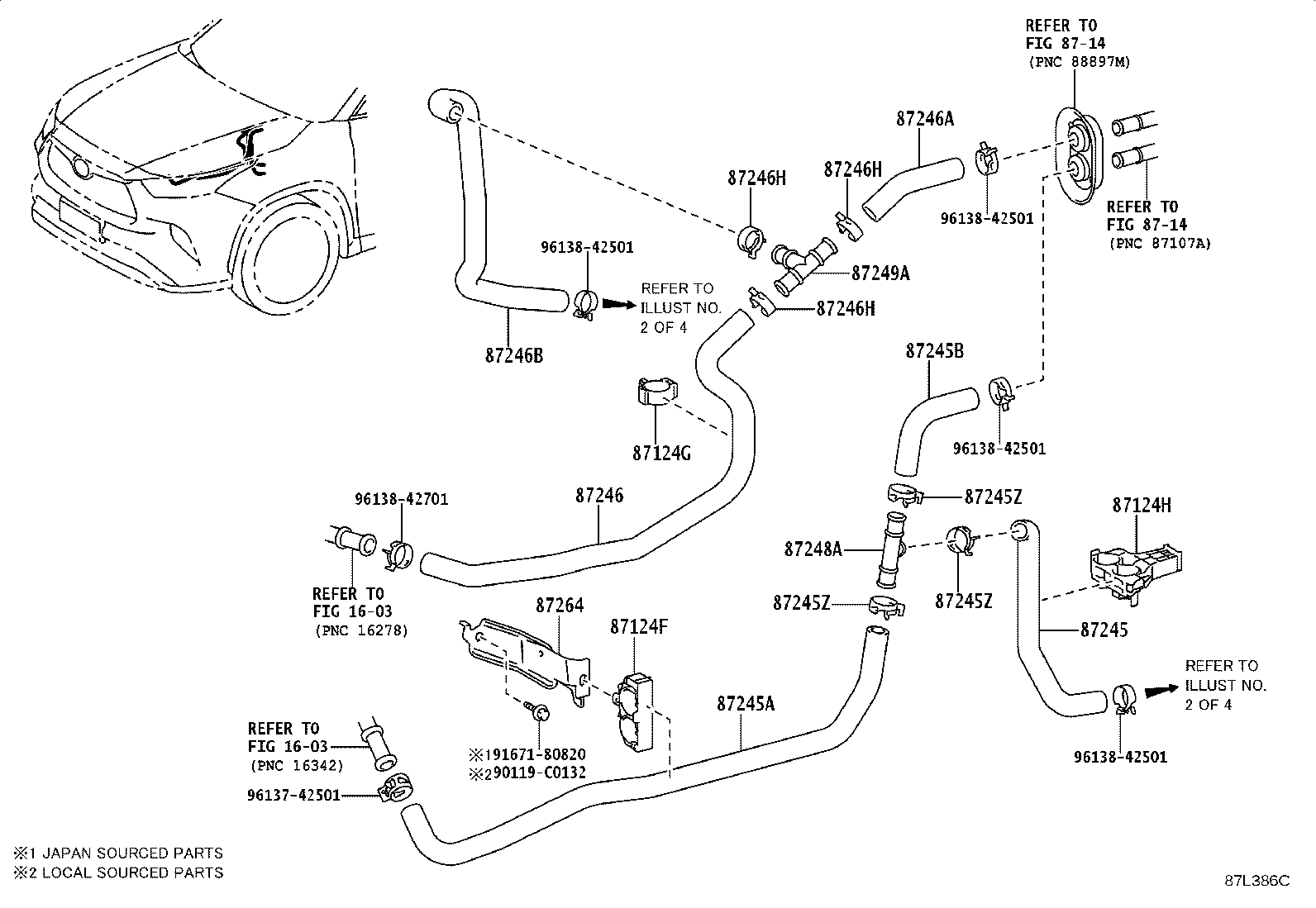

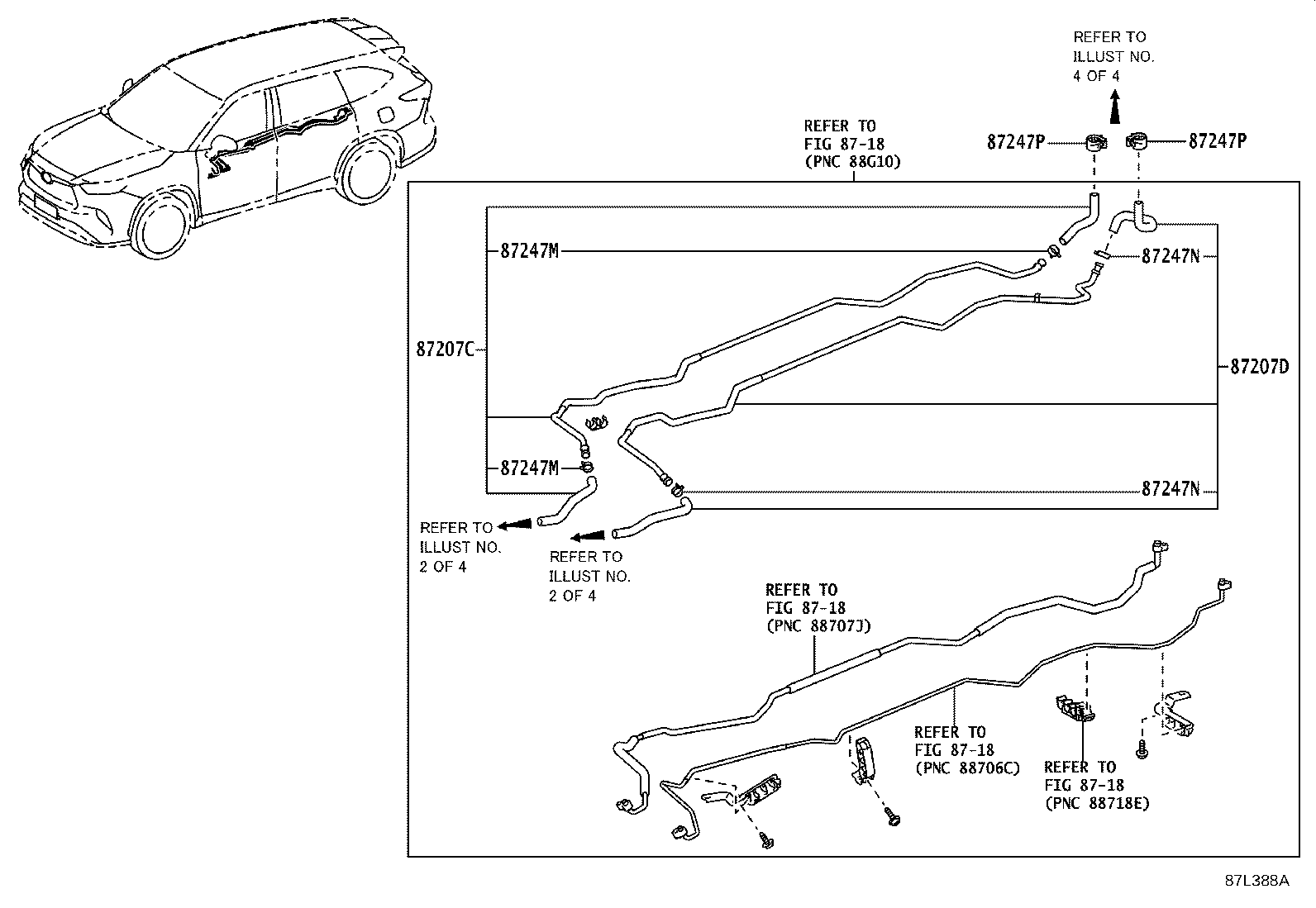

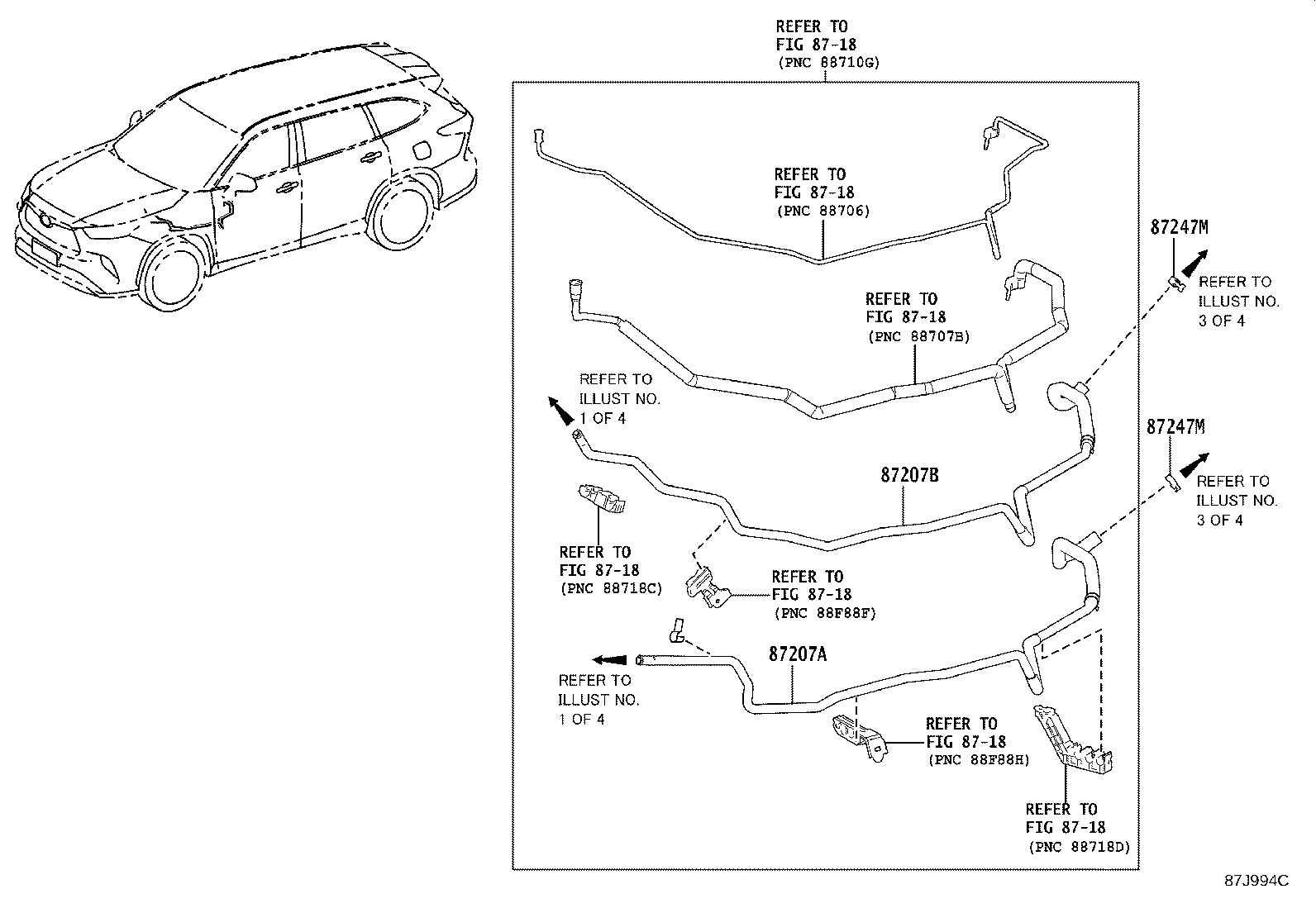

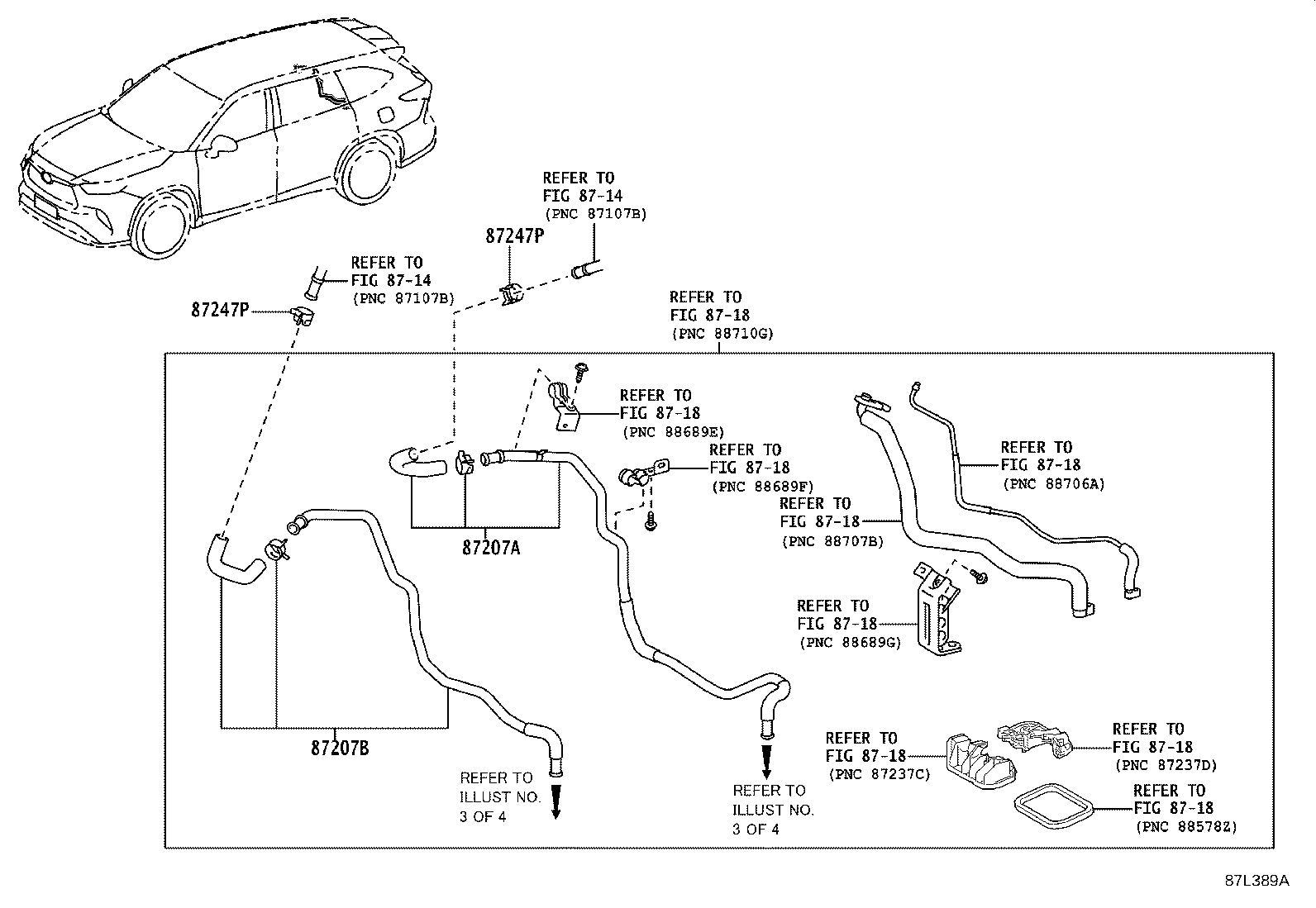

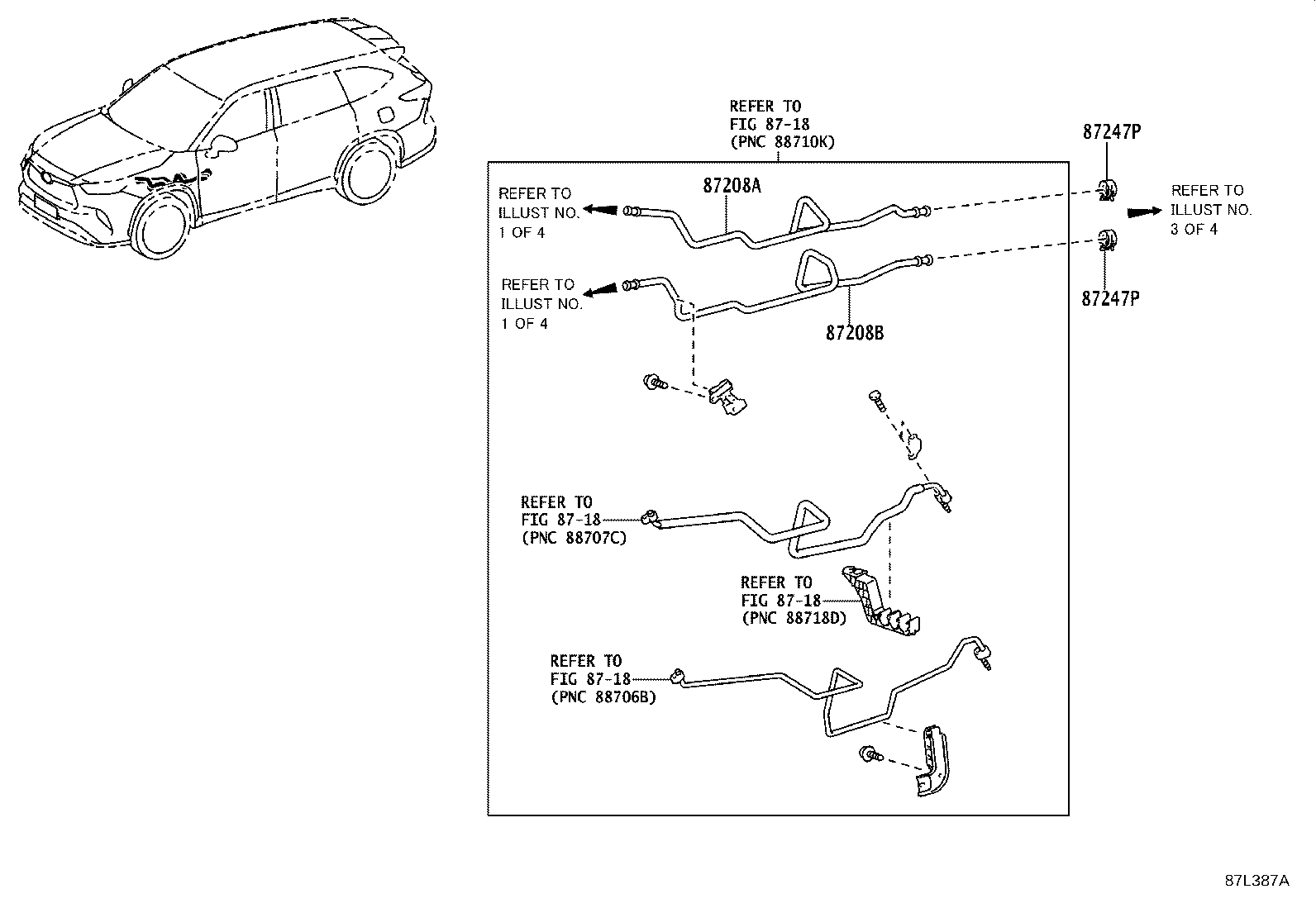

Figure 87J993C 87J993C 2021-08 → — Figure 87J994C 87J994C 2021-08 → — Figure 87J995C 87J995C 2021-08 → — Figure 87J996A 87J996A 2021-08 → — Figure 87L386C 87L386C 2022-09 → — Figure 87L387A 87L387A 2022-09 → — Figure 87L388A 87L388A 2022-09 → — Figure 87L389B 87L389B 2022-09 → —

Part groups

PNCDescription
87124F Clamp, Heater Hose, NO.1
87124G Clamp, Heater Hose, NO.2
87124H Clamp, Heater Hose, NO.3
87207A Pipe & Hose Sub-assy, Water A
87207B Pipe & Hose Sub-assy, Water B
87207C Pipe & Hose Sub-assy, Water C
87207D Pipe & Hose Sub-assy, Water D
87207E Pipe & Hose Sub-assy, Water E
87207F Pipe & Hose Sub-assy, Water F
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87209 Hose Sub-assy, Water
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246H Clip OR Clamp(FOR HEATER WATER HOSE)
87247M Clip, Hose
87247N Clip, Hose
87247P Clip, Hose
87248A Pipe, Heater Water Inlet, A
87249A Pipe, Heater Water Outlet, A
87264 Bracket, Heater Water Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
