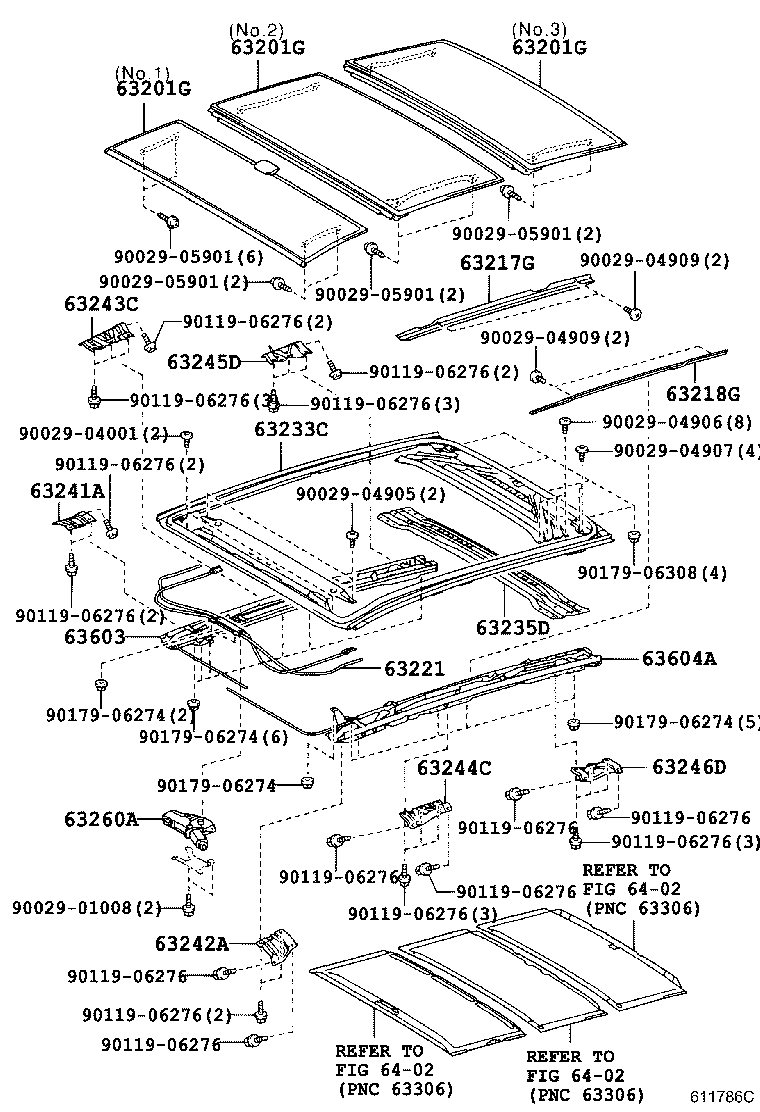

Exploded illustration 611786C 63201G — GLASS SUB-ASSY, SLIDING ROOF (10 parts) 63201G — GLASS SUB-ASSY, SLIDING ROOF (10 parts) 9002905901 — not listed in this catalogue 9002905901 — not listed in this catalogue 63243C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, RH (2 parts) 9011906276 — not listed in this catalogue 9002905901 — not listed in this catalogue 9002905901 — not listed in this catalogue 9002904909 — not listed in this catalogue 9002904909 — not listed in this catalogue 9002904906 — not listed in this catalogue 9002904907 — not listed in this catalogue 63217G — GARNISH, SLIDING ROOF SIDE, RH (4 parts) 63218G — GARNISH, SLIDING ROOF SIDE, LH (4 parts) 9017906308 — not listed in this catalogue 63604A — RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH (2 parts) 9017906274 — not listed in this catalogue 63246D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH (2 parts) 63235D — FRAME, SLIDING ROOF HOUSING, CENTER (2 parts) 9002904905 — not listed in this catalogue 63221 — CASING, SLIDING ROOF CABLE GUIDE (2 parts) 63244C — BRACKET, SLIDING ROOF HOUSING CENTER MOUNTING, LH (2 parts) 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 63603 — RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH (2 parts) 63241A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH (2 parts) 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 63260A — GEAR SUB-ASSY, SLIDING ROOF DRIVE (7 parts) 9002901008 — not listed in this catalogue 63242A — BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH (2 parts) 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 6402 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 63233C — PANEL, SLIDING ROOF HOUSING (2 parts) 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 9011906276 — not listed in this catalogue 63245D — BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH (2 parts) 9002904001 — not listed in this catalogue 63201G — GLASS SUB-ASSY, SLIDING ROOF (10 parts)
611786C · 17 callouts, 34 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
47 parts on this figure
Part number Description Fitment Price
63201G — Glass Sub-assy, Sliding Roof
63201-48040 note Glass Sub-assy, Sliding Roof
2003-02 → 2006-01 ended
MCU35 RHD —
63201-48050 note Glass Sub-assy, Sliding Roof
2003-02 → 2006-01 ended
MCU35 RHD —
63201-48060 note Glass Sub-assy, Sliding Roof
2003-02 → 2006-01 ended
MCU35 RHD —
63201-48100 note Glass Sub-assy, Sliding Roof
2003-02 → 2004-07 ended
MCU3# —
63201-48101 note Glass Sub-assy, Sliding Roof
2004-07 → 2005-04 ended
MCU3# —
63201-48130 note Glass Sub-assy, Sliding Roof
2005-05 → 2006-01 ended
MCU3# —
63201-48040 note Glass Sub-assy, Sliding Roof
2006-01 → 2008-12 ended
GSU35 EUR —
63201-48050 note Glass Sub-assy, Sliding Roof
2006-01 → 2008-12 ended
GSU35 EUR —
63201-48060 note Glass Sub-assy, Sliding Roof
2006-01 → 2008-12 ended
GSU35 EUR —
63201-48130 note Glass Sub-assy, Sliding Roof
2006-01 → 2008-12 ended
GSU35 —
63217G — Garnish, Sliding Roof Side, RH
63217-48020 note Garnish, Sliding Roof Side, RH
2003-02 → 2006-01 ended
MCU35 RHD —
63217-48030 note Garnish, Sliding Roof Side, RH
2003-02 → 2006-01 ended
MCU3# —
63217-48020 note Garnish, Sliding Roof Side, RH
2006-01 → 2008-12 ended
GSU35 EUR —
63217-48030 note Garnish, Sliding Roof Side, RH
2006-01 → 2008-12 ended
GSU35 —
63218G — Garnish, Sliding Roof Side, LH
63218-48020 note Garnish, Sliding Roof Side, LH
2003-02 → 2006-01 ended
MCU35 RHD —
63218-48030 note Garnish, Sliding Roof Side, LH
2003-02 → 2006-01 ended
MCU3# —
63218-48020 note Garnish, Sliding Roof Side, LH
2006-01 → 2008-12 ended
GSU35 EUR —
63218-48030 note Garnish, Sliding Roof Side, LH
2006-01 → 2008-12 ended
GSU35 —
63221 — Casing, Sliding Roof Cable Guide
63221-48020 note Casing, Sliding Roof Cable Guide
2003-02 → 2006-01 ended
MCU35 RHD —
63221-48020 note Casing, Sliding Roof Cable Guide
2006-01 → 2008-12 ended
GSU35 EUR —
63233C — Panel, Sliding Roof Housing
63233-48040 note Panel, Sliding Roof Housing
2003-02 → 2006-01 ended
MCU35 RHD —
63233-48040 note Panel, Sliding Roof Housing
2006-01 → 2008-12 ended
GSU35 EUR —
63235D — Frame, Sliding Roof Housing, Center
63235-48030 note Frame, Sliding Roof Housing, Center
2003-02 → 2006-01 ended
MCU35 RHD —
63235-48030 note Frame, Sliding Roof Housing, Center
2006-01 → 2008-12 ended
GSU35 EUR —
63241A — Bracket, Sliding Roof Housing Front Mounting, RH
63241-48030 note Bracket, Sliding Roof Housing Front Mounting, RH
2003-02 → 2006-01 ended
MCU35 RHD —
63241-48030 note Bracket, Sliding Roof Housing Front Mounting, RH
2006-01 → 2008-12 ended
GSU35 EUR —
63242A — Bracket, Sliding Roof Housing Front Mounting, LH
63242-48010 note Bracket, Sliding Roof Housing Front Mounting, LH
2003-02 → 2006-01 ended
MCU35 RHD —
63242-48010 note Bracket, Sliding Roof Housing Front Mounting, LH
2006-01 → 2008-12 ended
GSU35 EUR —
63243C — Bracket, Sliding Roof Housing Center Mounting, RH
63243-48030 note Bracket, Sliding Roof Housing Center Mounting, RH
2003-02 → 2006-01 ended
MCU35 RHD —
63243-48030 note Bracket, Sliding Roof Housing Center Mounting, RH
2006-01 → 2008-12 ended
GSU35 EUR —
63244C — Bracket, Sliding Roof Housing Center Mounting, LH
63244-48010 note Bracket, Sliding Roof Housing Center Mounting, LH
2003-02 → 2006-01 ended
MCU35 RHD —
63244-48010 note Bracket, Sliding Roof Housing Center Mounting, LH
2006-01 → 2008-12 ended
GSU35 EUR —
63245D — Bracket, Sliding Roof Housing Rear Mounting, RH
63245-48020 note Bracket, Sliding Roof Housing Rear Mounting, RH
2003-02 → 2006-01 ended
MCU35 RHD —
63245-48020 note Bracket, Sliding Roof Housing Rear Mounting, RH
2006-01 → 2008-12 ended
GSU35 EUR —
63246D — Bracket, Sliding Roof Housing Rear Mounting, LH
63246-48010 note Bracket, Sliding Roof Housing Rear Mounting, LH
2003-02 → 2006-01 ended
MCU35 RHD —
63246-48010 note Bracket, Sliding Roof Housing Rear Mounting, LH
2006-01 → 2008-12 ended
GSU35 EUR —
63260A — Gear Sub-assy, Sliding Roof Drive
63260-48060 note Gear Sub-assy, Sliding Roof Drive
2003-02 → 2004-12 ended
MCU3# —
63260-48060 note Gear Sub-assy, Sliding Roof Drive
2005-01 → 2006-01 ended
MCU3# —
63260-48070 note Gear Sub-assy, Sliding Roof Drive
2003-02 → 2006-01 ended
MCU35 RHD —
63260-48060 note Gear Sub-assy, Sliding Roof Drive
2006-01 → 2006-08 ended
GSU35 —
63260-48061 note Gear Sub-assy, Sliding Roof Drive
2006-08 → 2008-12 ended
GSU35 —
63260-48070 note Gear Sub-assy, Sliding Roof Drive
2006-01 → 2006-12 ended
GSU35 EUR —
63260-48071 note Gear Sub-assy, Sliding Roof Drive
2007-01 → 2008-12 ended
GSU35 EUR —
63603 — Rail Sub-assy, Sliding Roof Drive, RH
63603-48040 note Rail Sub-assy, Sliding Roof Drive, RH
2003-02 → 2006-01 ended
MCU35 RHD —
63603-48040 note Rail Sub-assy, Sliding Roof Drive, RH
2006-01 → 2008-12 ended
GSU35 EUR —
63604A — Rail Sub-assy, Sliding Roof Drive, LH
63604-48040 note Rail Sub-assy, Sliding Roof Drive, LH
2003-02 → 2006-01 ended
MCU35 RHD —
63604-48040 note Rail Sub-assy, Sliding Roof Drive, LH
2006-01 → 2008-12 ended
GSU35 EUR —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
