Toyota Lexus RX270/350/450H
2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · General
Supported model
Data version 2016-03
Parking Brake & Cable

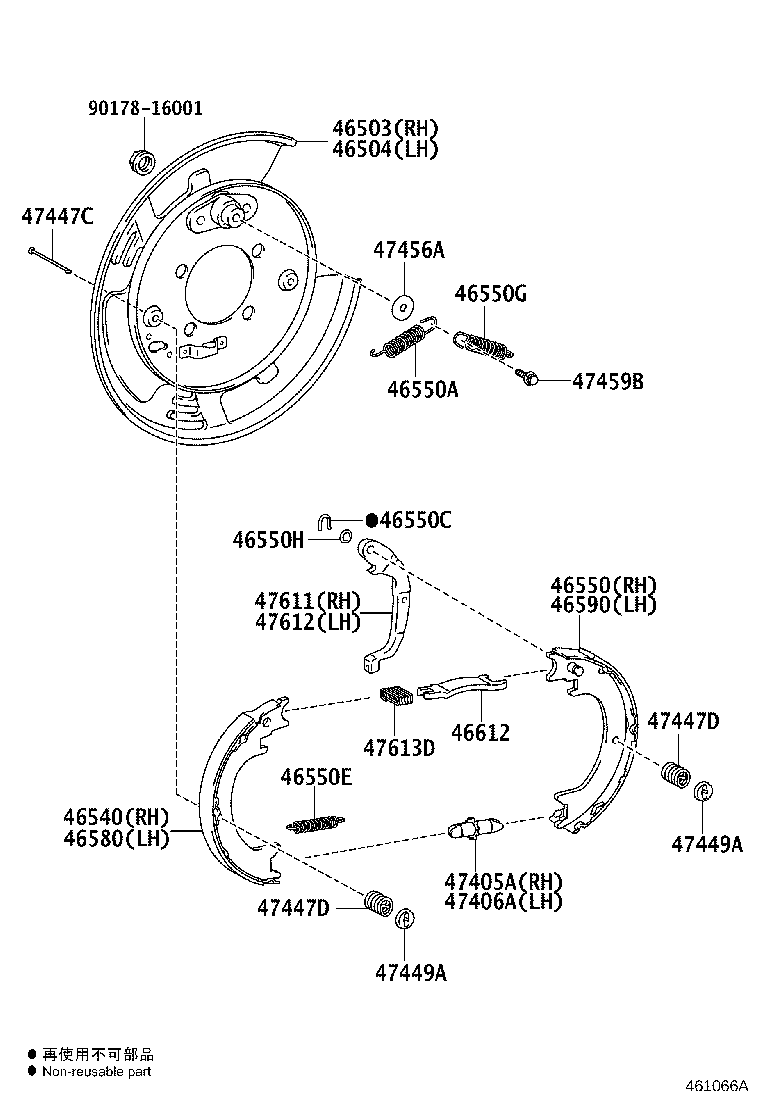

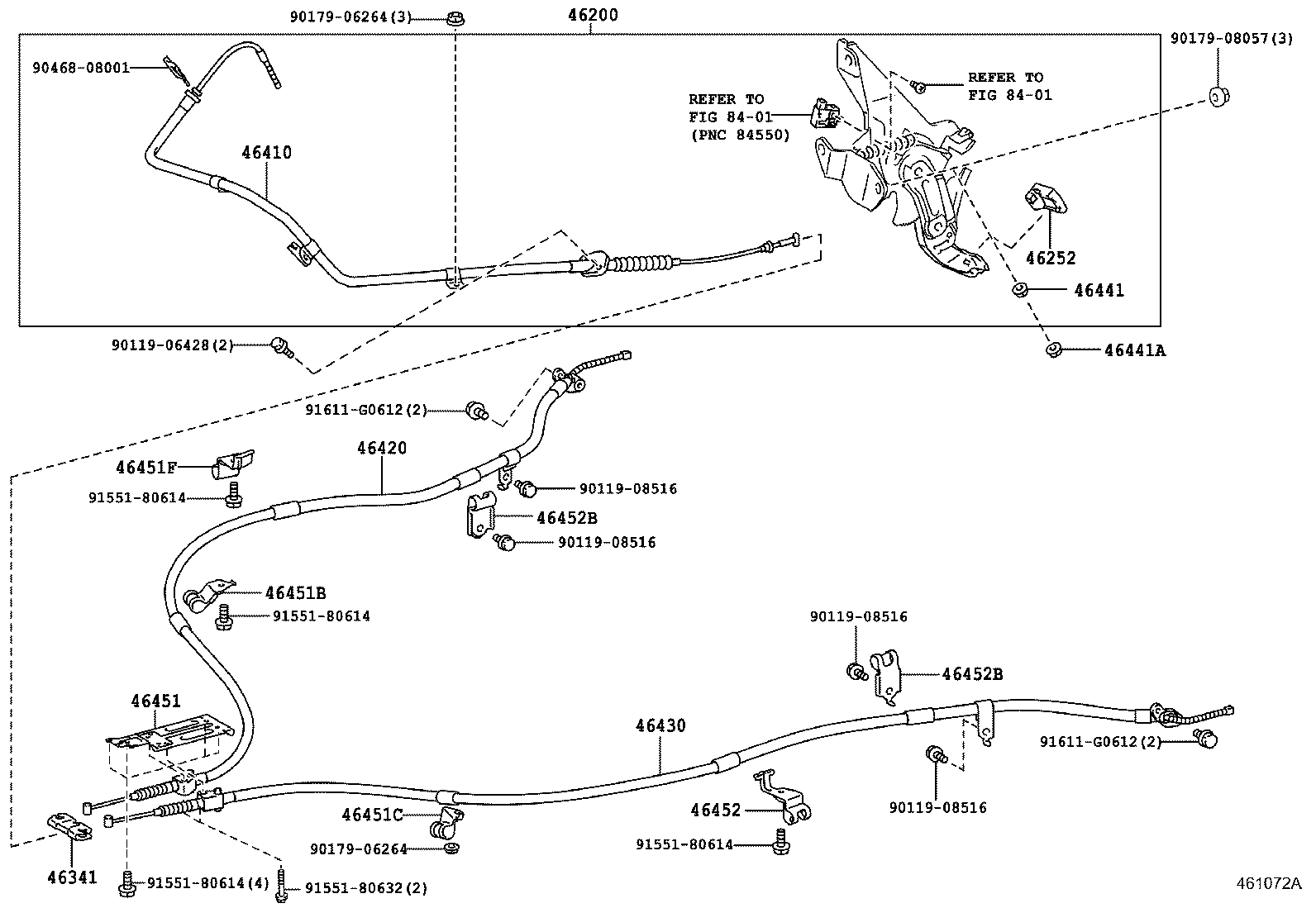

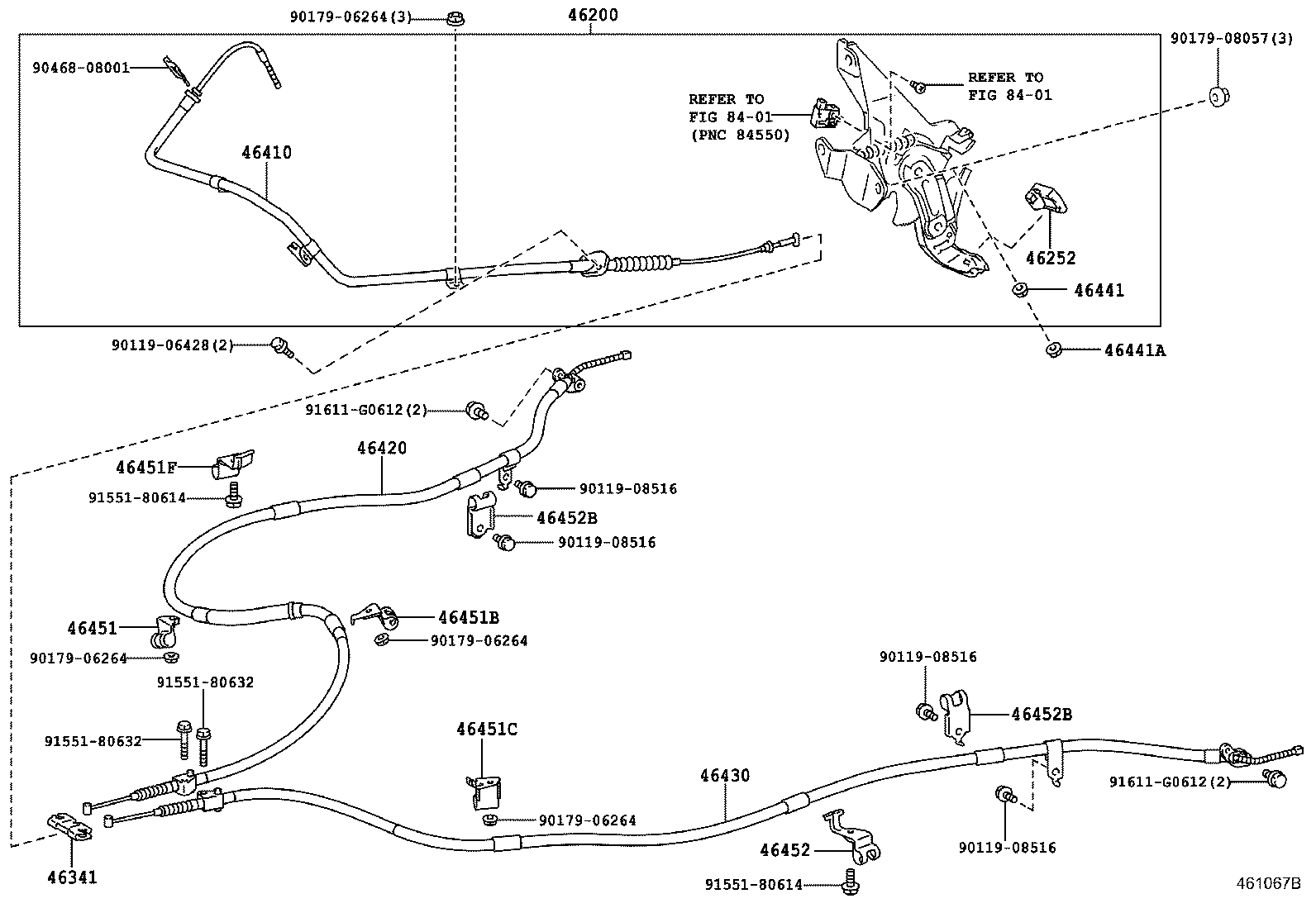

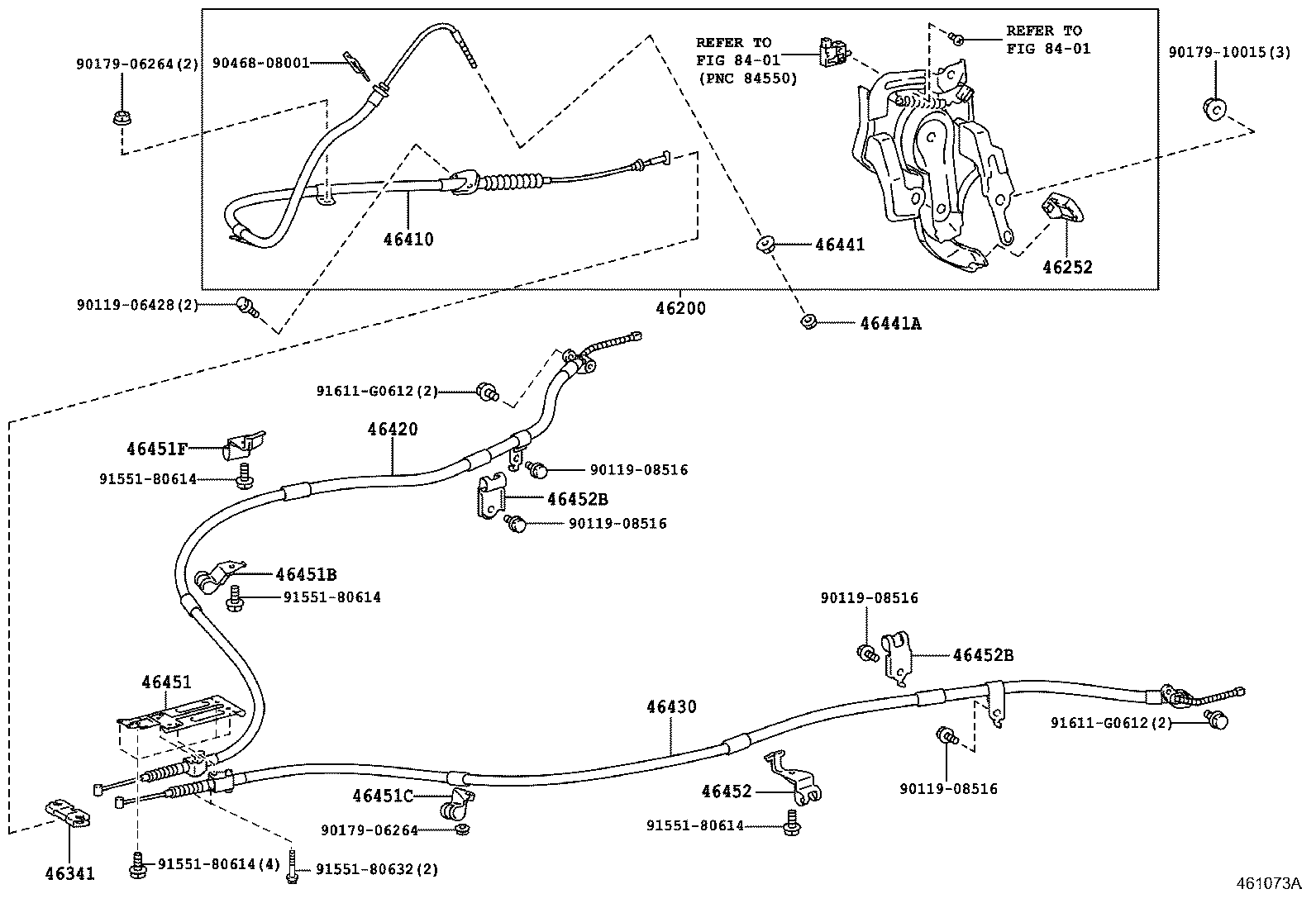

36 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 46200 | Pedal Assy, Parking Brake Control |
| 46252 | Pad, Parking Pedal |
| 46341 | Equalizer, Parking Brake |
| 46410 | Cable Assy, Parking Brake, NO.1 |
| 46420 | Cable Assy, Parking Brake, NO.2 |
| 46430 | Cable Assy, Parking Brake, NO.3 |
| 46441 | Nut, Wire Adjusting, NO.1 |
| 46441A | Nut, Wire Adjusting, NO.2 |
| 46451 | Bracket, Cable Support |
| 46451B | Bracket, Parking Brake Cable Support |
| 46451C | Bracket, Parking Brake Cable Support, NO.1 |
| 46451F | Bracket, Cable Support |
| 46452 | Bracket, Parking Brake Cable Support, NO.2 |
| 46452B | Bracket, Cable Support, NO.2 |
| 46503 | Plate Sub-assy, Parking Brake, RH |
| 46504 | Plate Sub-assy, Parking Brake, LH |
| 46540 | Shoe Assy, Parking Brake, RH OR Center NO.1 |
| 46550 | Shoe Assy, Parking Brake, RH OR Center NO.2 |
| 46550A | Spring, Tension, NO.1(FOR PARKING BRAKE SHOE RETURN) |
| 46550C | Washer, Type C(FOR PARKING BRAKE SHOE) |
| 46550E | Spring, Tension, NO.2(FOR PARKING BRAKE SHOE RETURN) |
| 46550G | Spring, Tension, NO.3(FOR PARKING BRAKE SHOE RETURN) |
| 46550H | Shim(FOR PARKING BRAKE SHOE) |
| 46580 | Shoe Assy, Parking Brake, LH NO.1 |
| 46590 | Shoe Assy, Parking Brake, LH NO.2 |
| 46612 | Strut, Parking Brake Shoe Lever |
| 47405A | Screw Set, Shoe Adjusting, RH(FOR PARKING BRAKE) |
| 47406A | Screw Set, Shoe Adjusting, LH(FOR PARKING BRAKE) |
| 47447C | Pin, Shoe Hold Down Spring(FOR PARKING BRAKE) |
| 47447D | Spring, Compression(FOR PARKING BRAKE SHOE HOLD DOWN) |
| 47449A | Cup, Shoe Hold Down Spring, NO.1(FOR PARKING BRAKE) |
| 47456A | Plate, Shoe Guide(FOR PARKING BRAKE) |
| 47459B | Bolt, Shoe Guide Plate Set(FOR PARKING BRAKE) |
| 47611 | Lever, Parking Brake Shoe, RH |
| 47612 | Lever, Parking Brake Shoe, LH |
| 47613D | Spring, Compression(FOR PARKING BRAKE SHOE STRUT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
