Toyota Lexus RX270/350/450H

2008-12 → 2015-09 · chassis AGL10,GGL15,GYL1# · catalogue 521230 · General

Supported model Data version 2016-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 4 illustrations

Illustrations

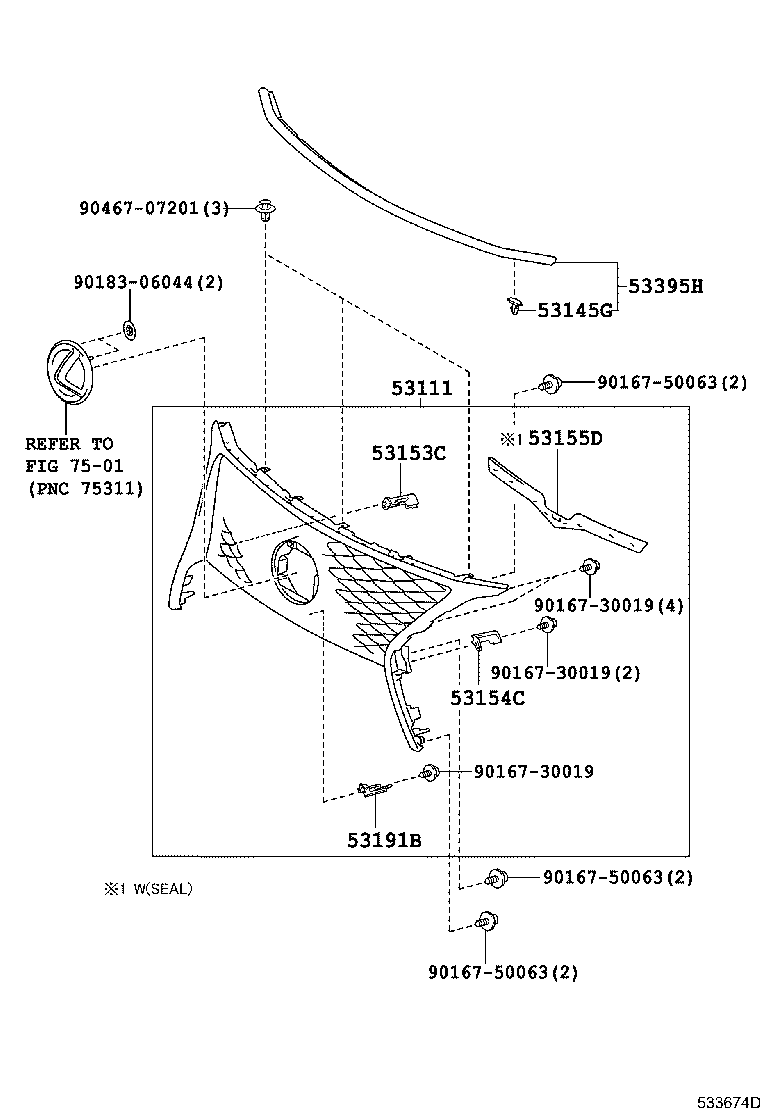

Figure 532917D 532917D 2008-12 → 2012-03 Figure 532978D 532978D 2009-03 → 2012-03 Figure 533673D 533673D 2012-03 → — Figure 533674D 533674D 2012-03 → —

Part groups

PNCDescription
53111 Grille, Radiator
53145G Clip, Radiator Grille
53153C Guide, Radiator Grille Side Air, RH
53154C Guide, Radiator Grille Side Air, LH
53155D Seal, Radiator Grille, NO.1
53191B Retainer, Radiator Grilee, Upper
53395H Seal, Hood TO Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
