Toyota Harrier

2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

31 part groups · 3 illustrations

Illustrations

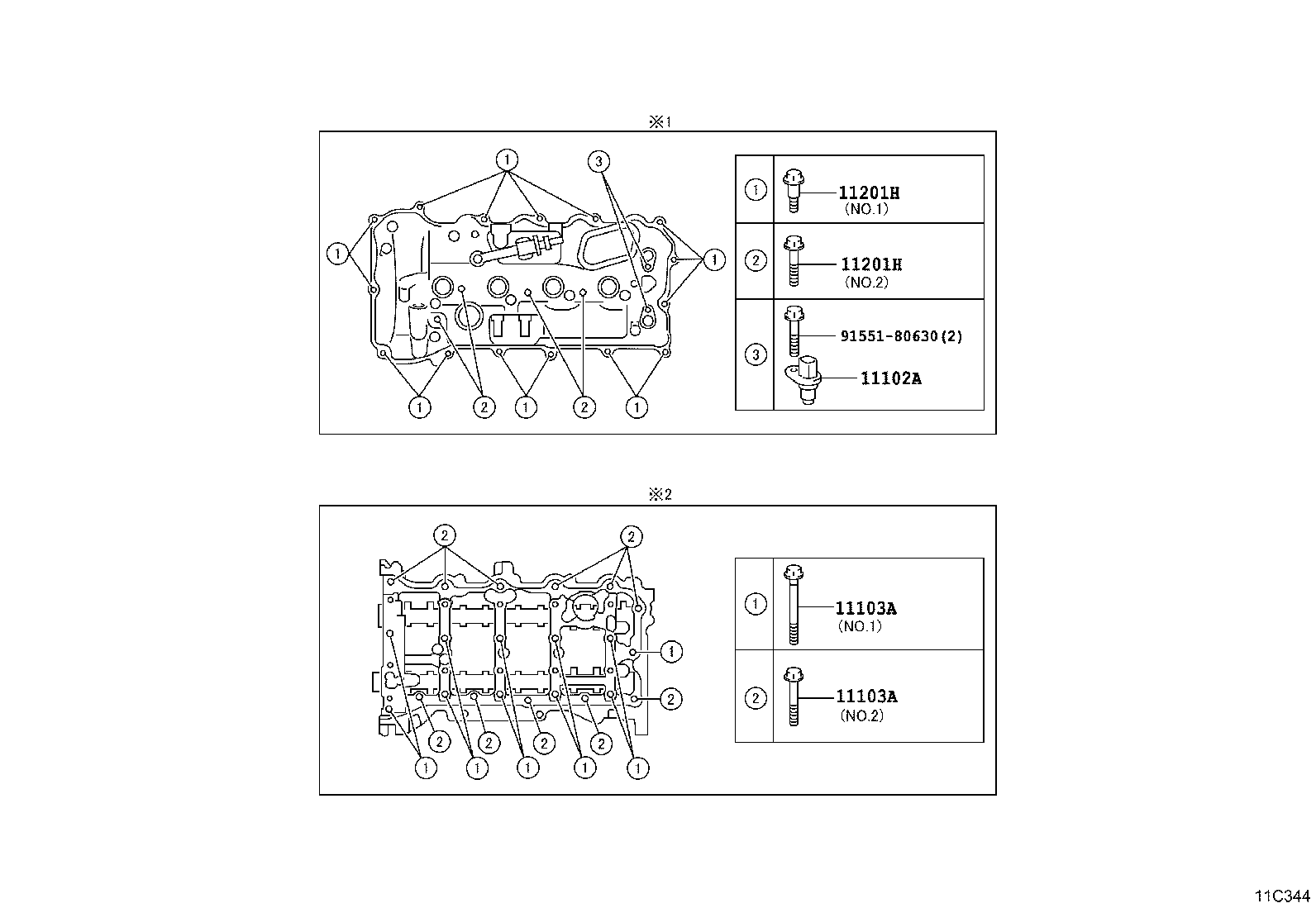

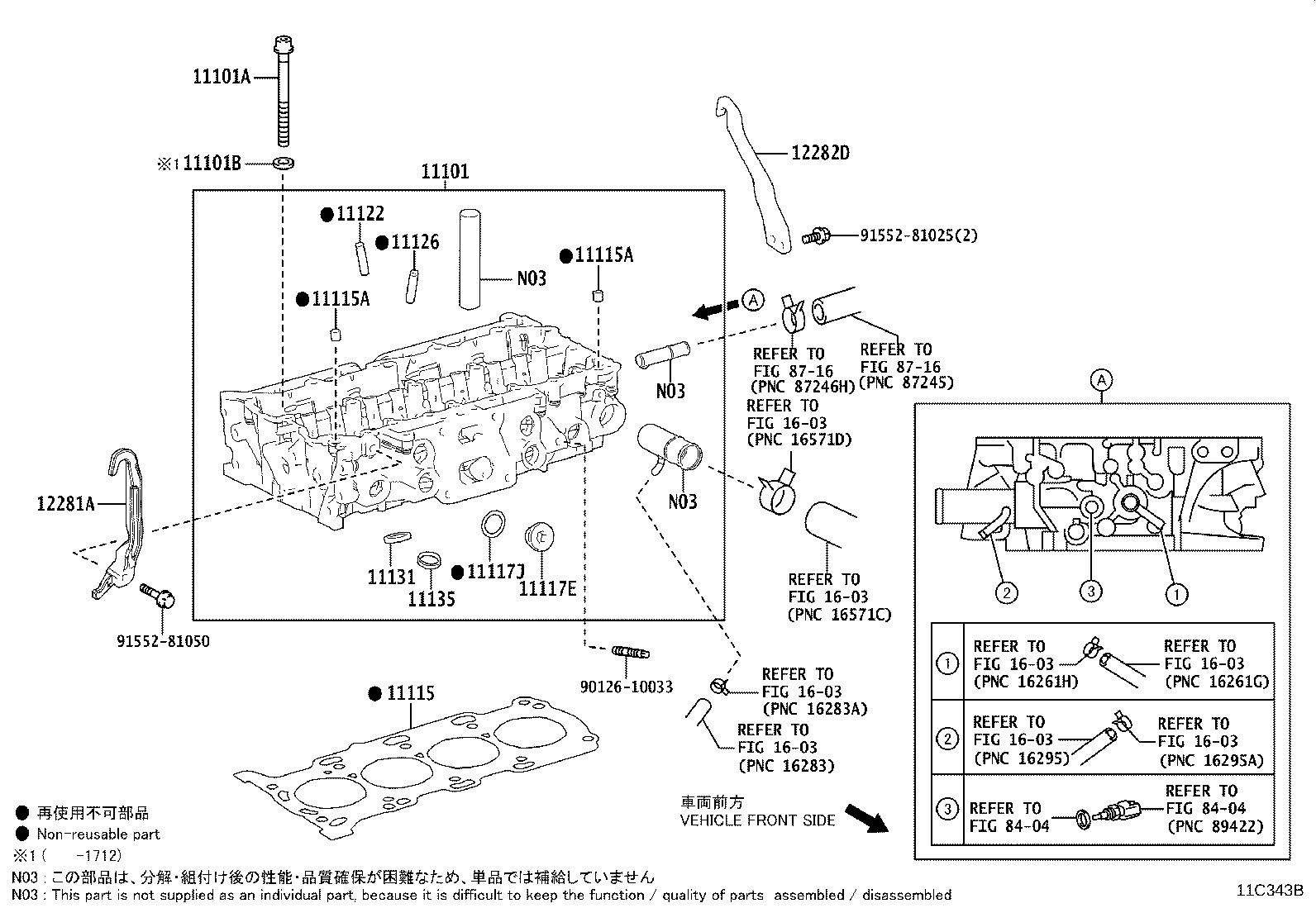

Figure 11C342D 11C342D 2017-05 → — Figure 11C343B 11C343B 2017-05 → — Figure 11C344 11C344 2017-05 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101J Valve Assy, Camshaft Timing Oil Control
11102A Sensor, Camshaft Position
11103 Housing Sub-assy, Camshaft
11103A Bolt(FOR CAMSHAFT HOUSING SET)
11115 Gasket, Cylinder Head
11115A Pin, Ring
11117E Plug, W/Head Straight Screw, NO.1
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151H Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
11159H Gasket, Camshaft Bearing Cap Oil Hole
11191A Gasket(FOR SPARK PLUG TUBE)
11201 Cover Sub-assy, Cylinder Head
11201H Bolt(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12601B Cover Sub-assy, Engine, NO.1
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
15707H Pipe Sub-assy, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
