Cylinder Block

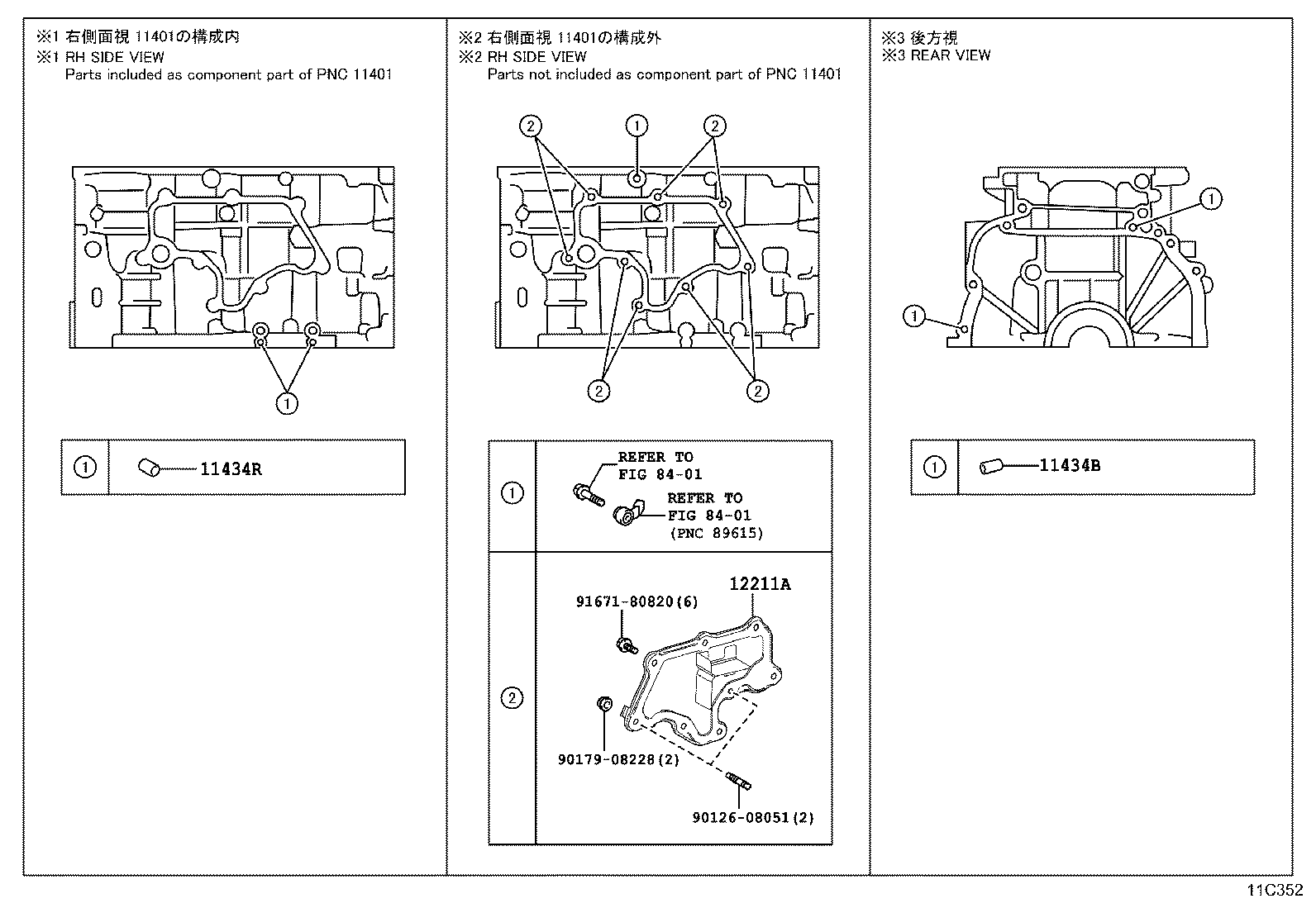

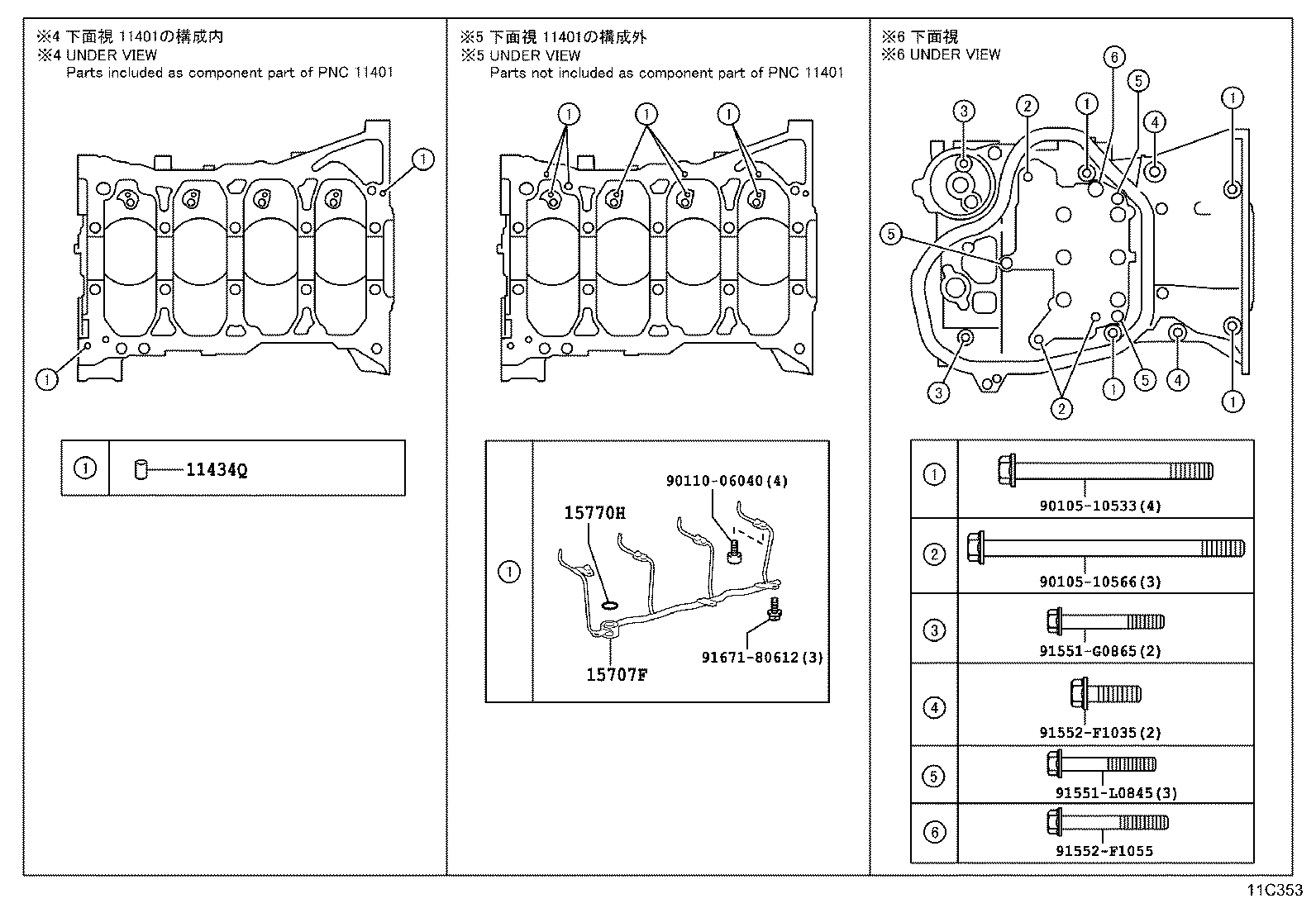

25 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11401 | Block Sub-assy, Cylinder |
| 11401L | Seal, Engine Rear Oil |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434N | Pin, Straight(FOR WATER INLET HOUSING) |
| 11434Q | Pin, Straight(FOR CRANKCASE) |
| 11434R | Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12211A | Case, Ventilation, NO.1 |
| 13620B | Balancer Assy, Engine |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15707F | Pipe Sub-assy, Oil |
| 15770H | Gasket(FOR OIL PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
