Toyota Harrier

2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

25 part groups · 2 illustrations

Illustrations

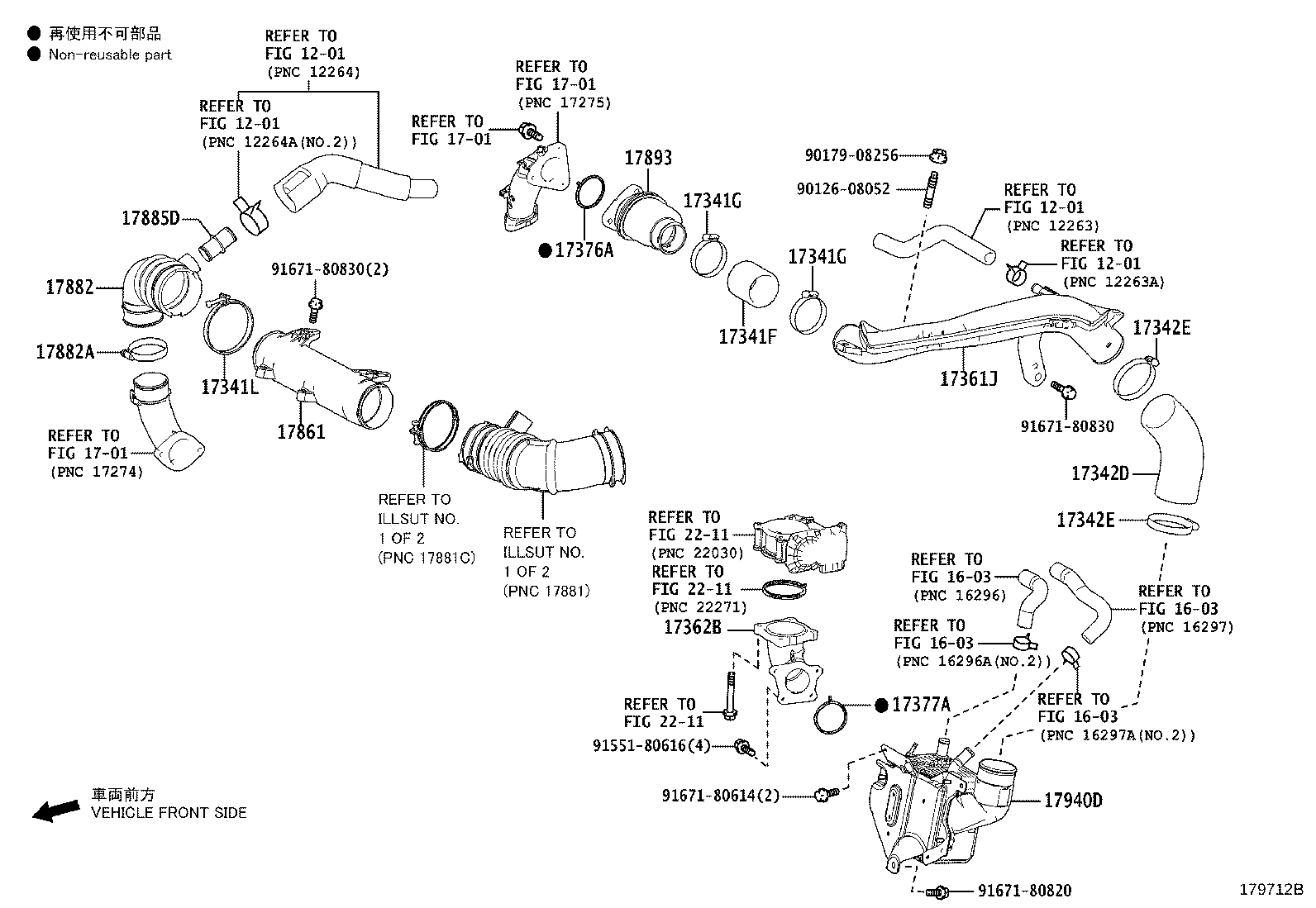

Figure 179713 179713 2017-05 → — Figure 179712B 179712B 2017-05 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17376A Gasket, Air Tube
17377A Gasket, Air Tube, NO.2
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17885D Pipe, Air Cleaner, NO.2
17893 Resonator, Intake Air
17940D Intercooler Assy
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
