Toyota Harrier

2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

17 part groups · 2 illustrations

Illustrations

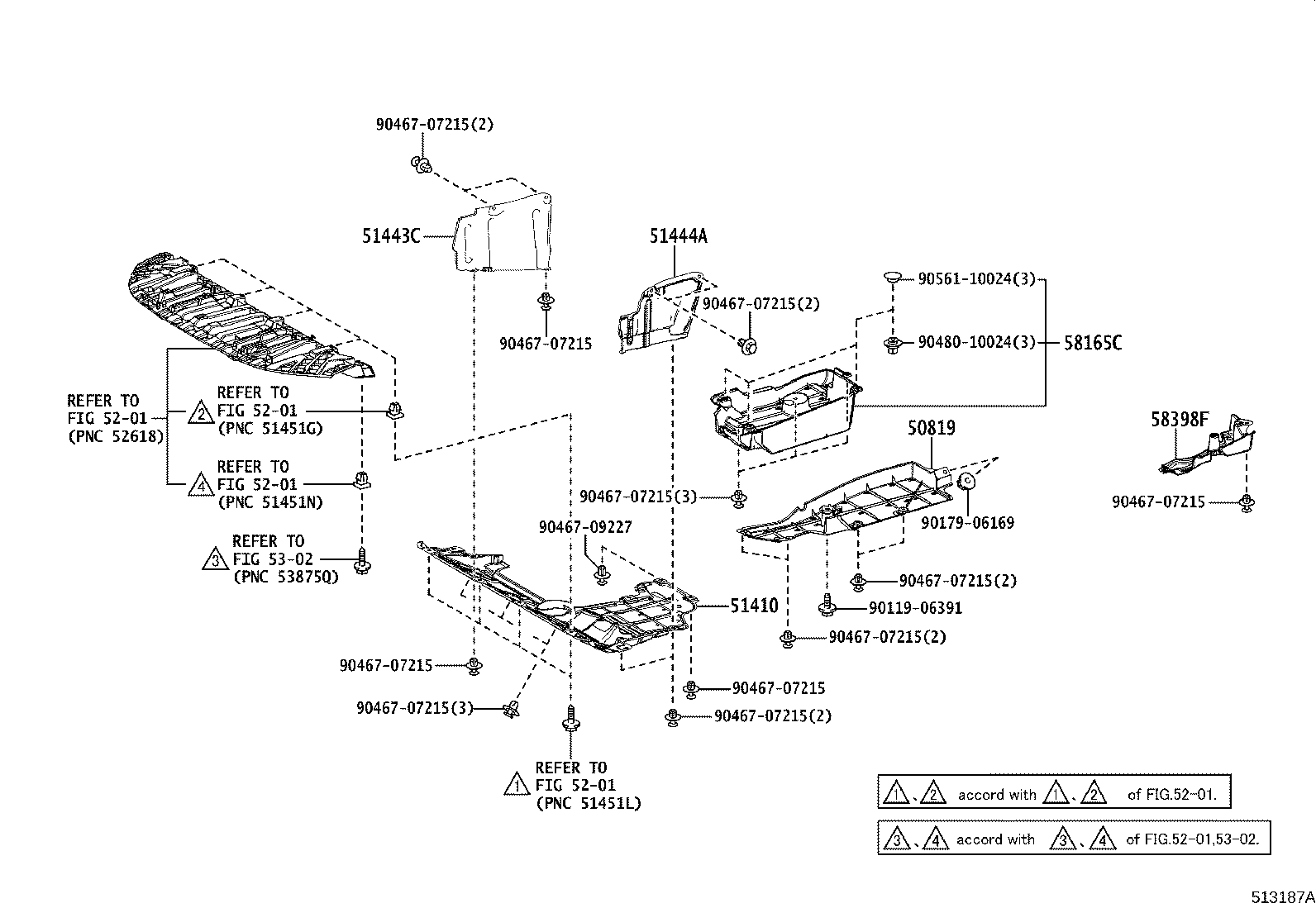

Figure 513186 513186 2017-05 → — Figure 513187A 513187A 2017-05 → —

Part groups

PNCDescription
50819 Cover, Front Floor
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51410 Cover Assy, Engine Under, NO.1
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
52255B Brace, Front Suspension Member
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52276 Cushion, Rear Suspension Member, Rear Lower
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
57104E Member Sub-assy, Front Cross
58165C Cover, Front Floor, RH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
