Toyota Harrier

2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

26 part groups · 2 illustrations

Illustrations

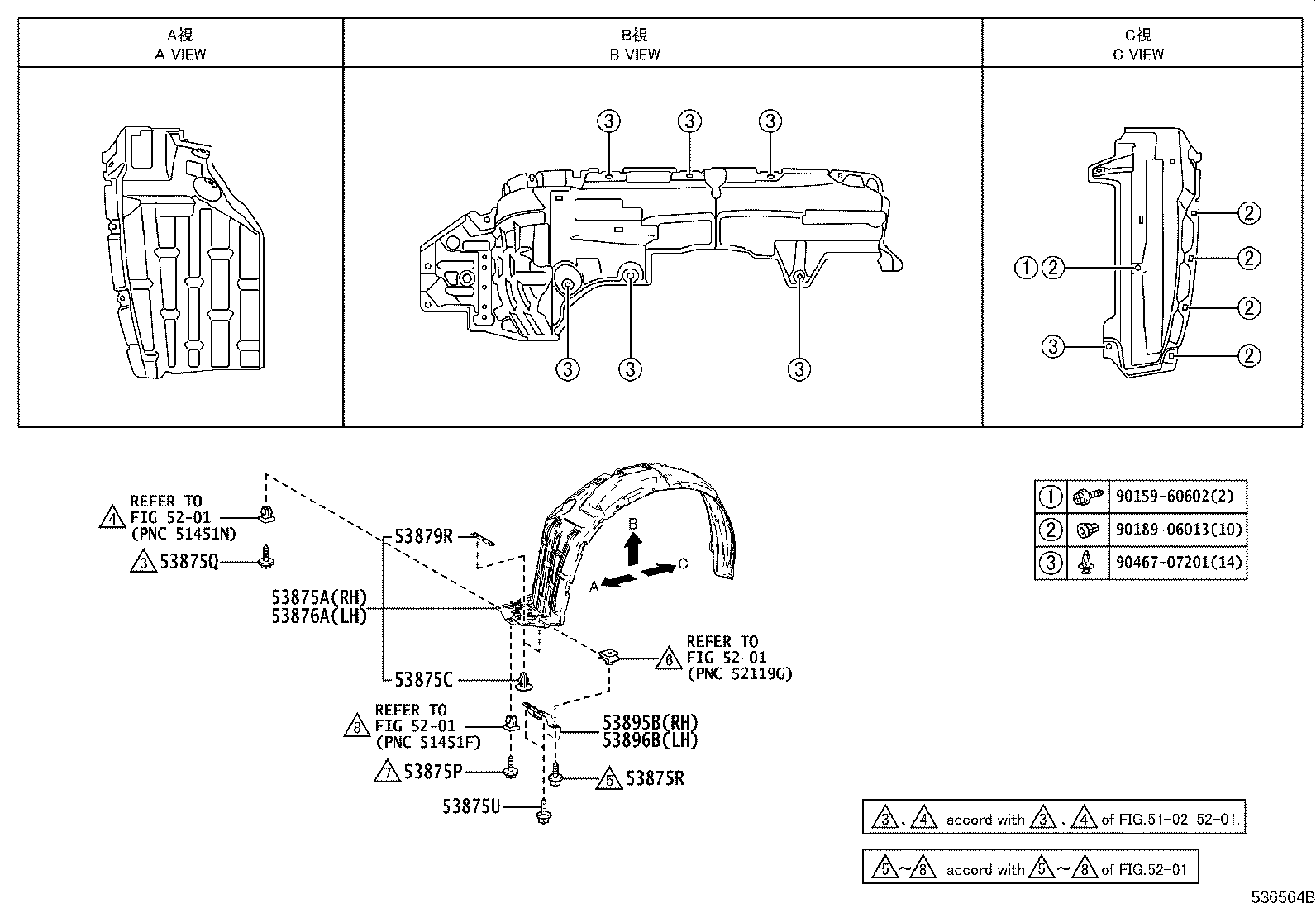

Figure 535269B 535269B 2017-05 → — Figure 536564B 536564B 2017-05 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53807A Shield Sub-assy, Fender Splash, Rear RH
53808D Reinforcement Sub-assy, Front Fender, Top LH
53813D Extension, Front Fender
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857B Retainer, Front Wheel Opening Extension, RH
53858B Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875U Screw, NO.4
53876A Liner, Front Fender, LH
53879R Retainer, Front Fender Liner
53895B Shield, Front Fender Splash, Front RH
53896B Shield, Front Fender Splash, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
