Toyota Harrier

2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General

Supported model Data version 2020-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

21 part groups · 2 illustrations

Illustrations

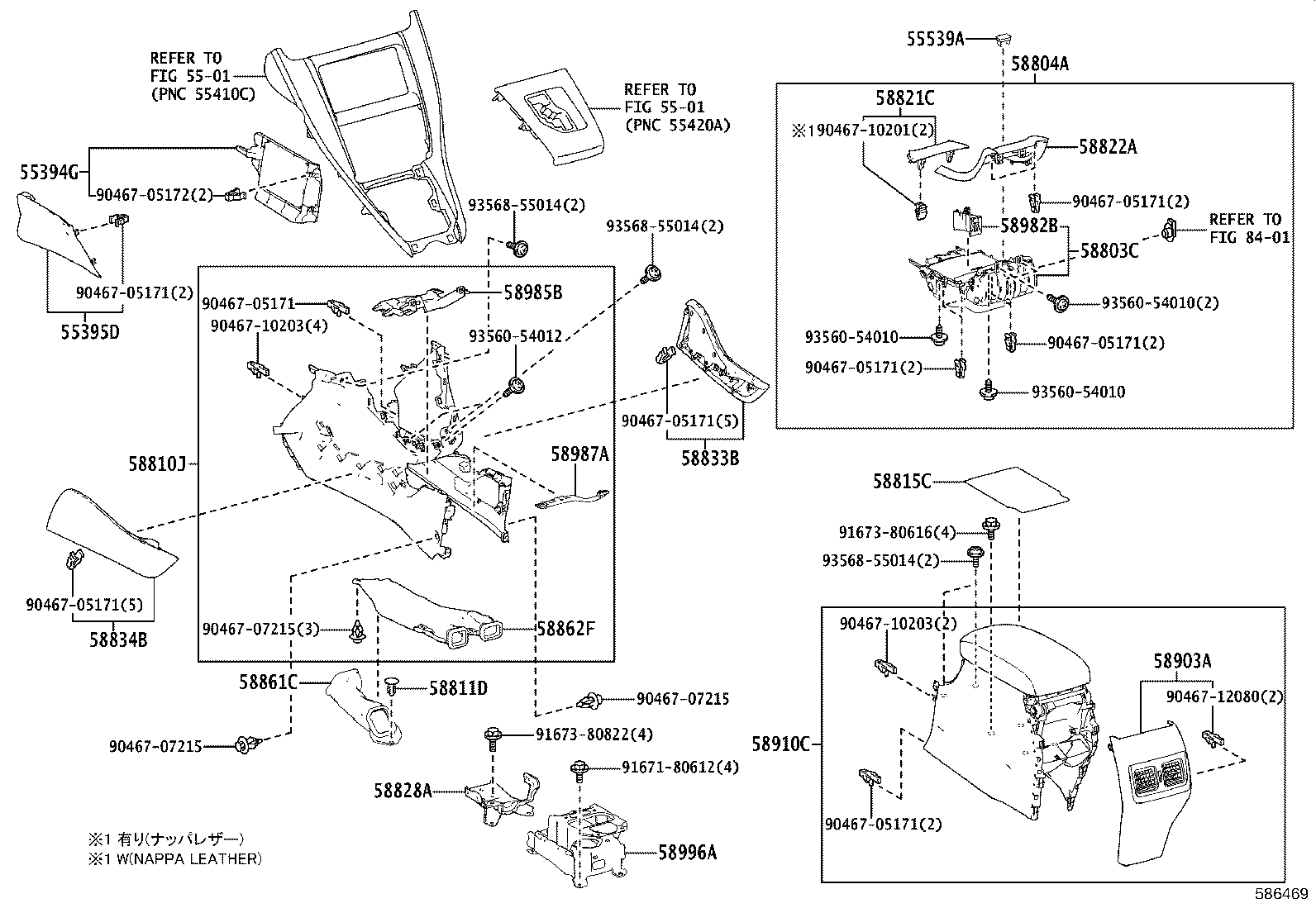

Figure 585123C 585123C 2017-05 → 2017-08 Figure 586469 586469 2017-08 → —

Part groups

PNCDescription
55394G Cover, Instrument Panel Brace, Inner NO.1 RH
55395D Cover, Instrument Panel Brace, Inner NO.1 LH
55539A Cover, Spare Switch Hole
58803C Box Sub-assy, Console Cup Holder
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58815C Carpet, Console Box
58821C Panel, Console, Upper
58822A Panel, Console, Upper Rear
58828A Bracket, Console Box, Lower
58833B Garnish, Console Upper Panel, NO.1
58834B Garnish, Console Upper Panel, NO.2
58861C Duct, Console Box, NO.1
58862F Duct, Console Box, NO.2
58903A Panel Sub-assy, Console Rear End
58910C Box Assy, Console, Rear
58982B Retainer, Console Box, NO.3
58985B Retainer, Console Box, NO.1
58987A Retainer, Console Box, NO.2
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
