Toyota Harrier
2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General
Supported model
Data version 2020-06

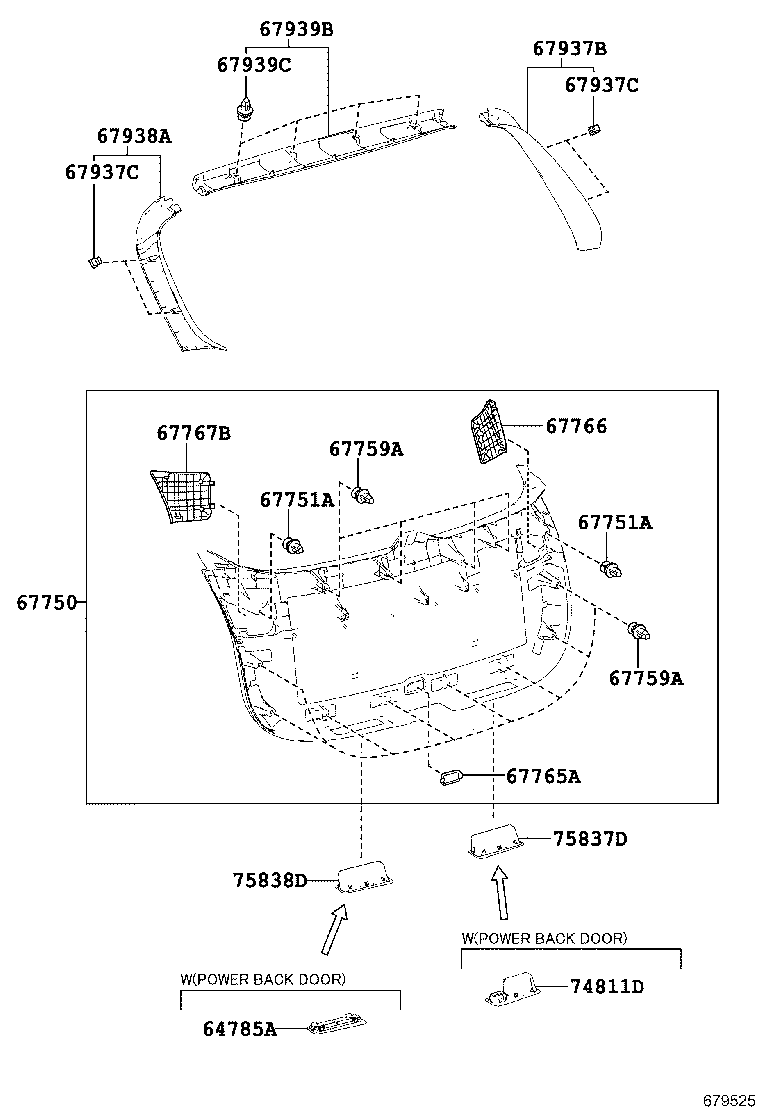

Back Door Panel & Glass
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62785F | Spacer, Back Door Glass |
| 64785A | Base, Back Door Trim |
| 64818C | Spacer, Back Window Glass, NO.1 |
| 64819B | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67372A | Weight, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67759A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67765A | Cover, Back Door Service Hole, NO.1 |
| 67766 | Cover, Back Door Service Hole, NO.2 |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67837L | Seal, Door Dust Proof |
| 67837N | Seal, Back Door Dust Proof |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 75575D | Moulding, Back Window, Lower |
| 75837D | Cover, Back Door Finish, RH |
| 75838D | Cover, Back Door Finish, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
