Toyota Harrier
2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General
Supported model
Data version 2020-06
Seat Belt & Child Restraint Seat

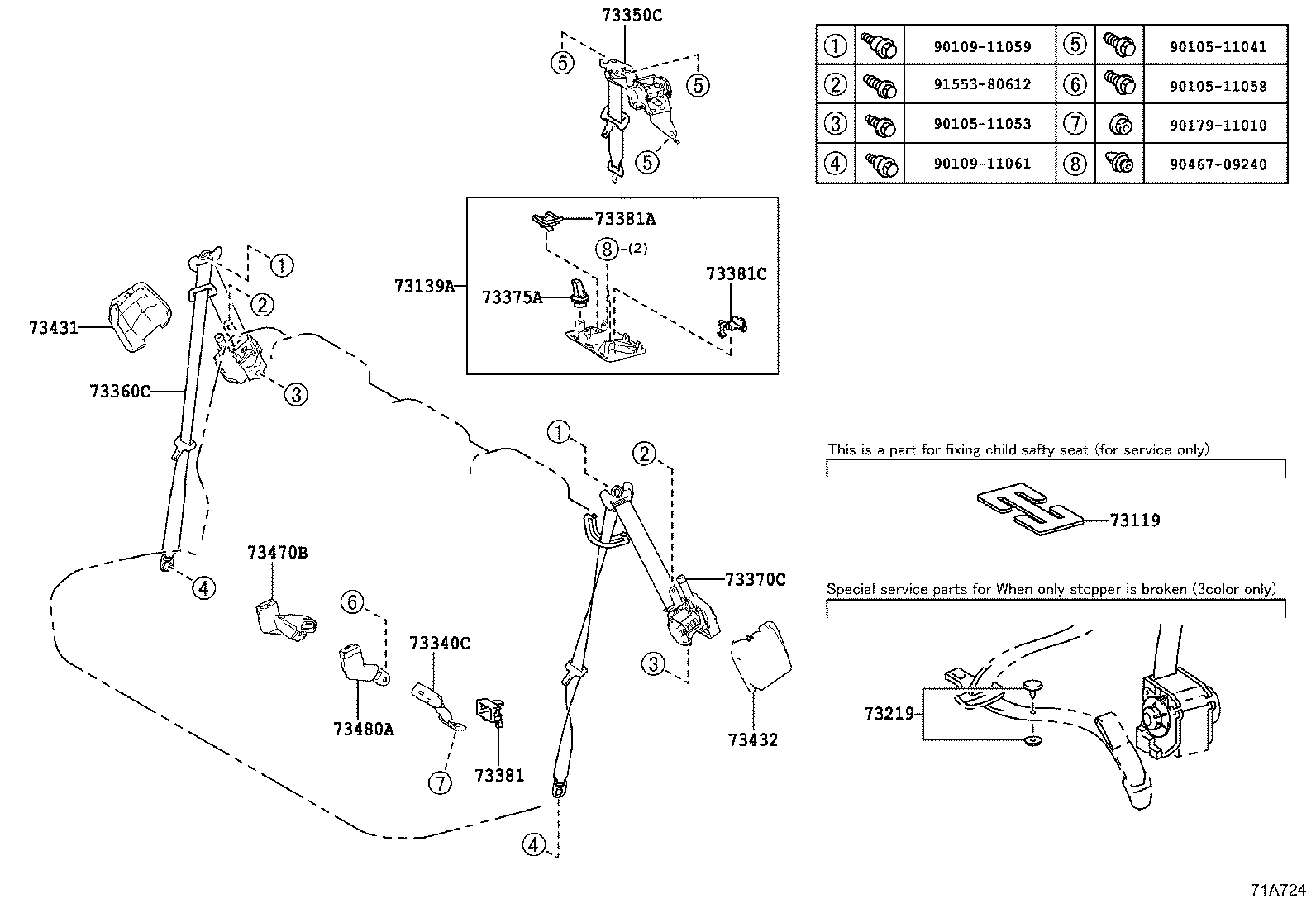

23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73119 | Plate, Seat Belt Webbing Clip |
| 73139A | Cover, Seat Belt Anchor |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73340C | Belt Assy, Rear Seat Lap Type, Center LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73375A | Clip, Rear Seat Belt Cover |
| 73381 | Holder, Rear Seat Belt |
| 73381A | Holder, Rear Seat Belt NO.2 |
| 73381C | Holder, Seat Belt |
| 73431 | Cover, Rear Seat Belt Retractor, RH |
| 73432 | Cover, Rear Seat Belt Retractor, LH |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480A | Belt Assy, Rear Seat, Inner LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
