Toyota Harrier
2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General
Supported model
Data version 2020-06
Wiring & Clamp
61 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|

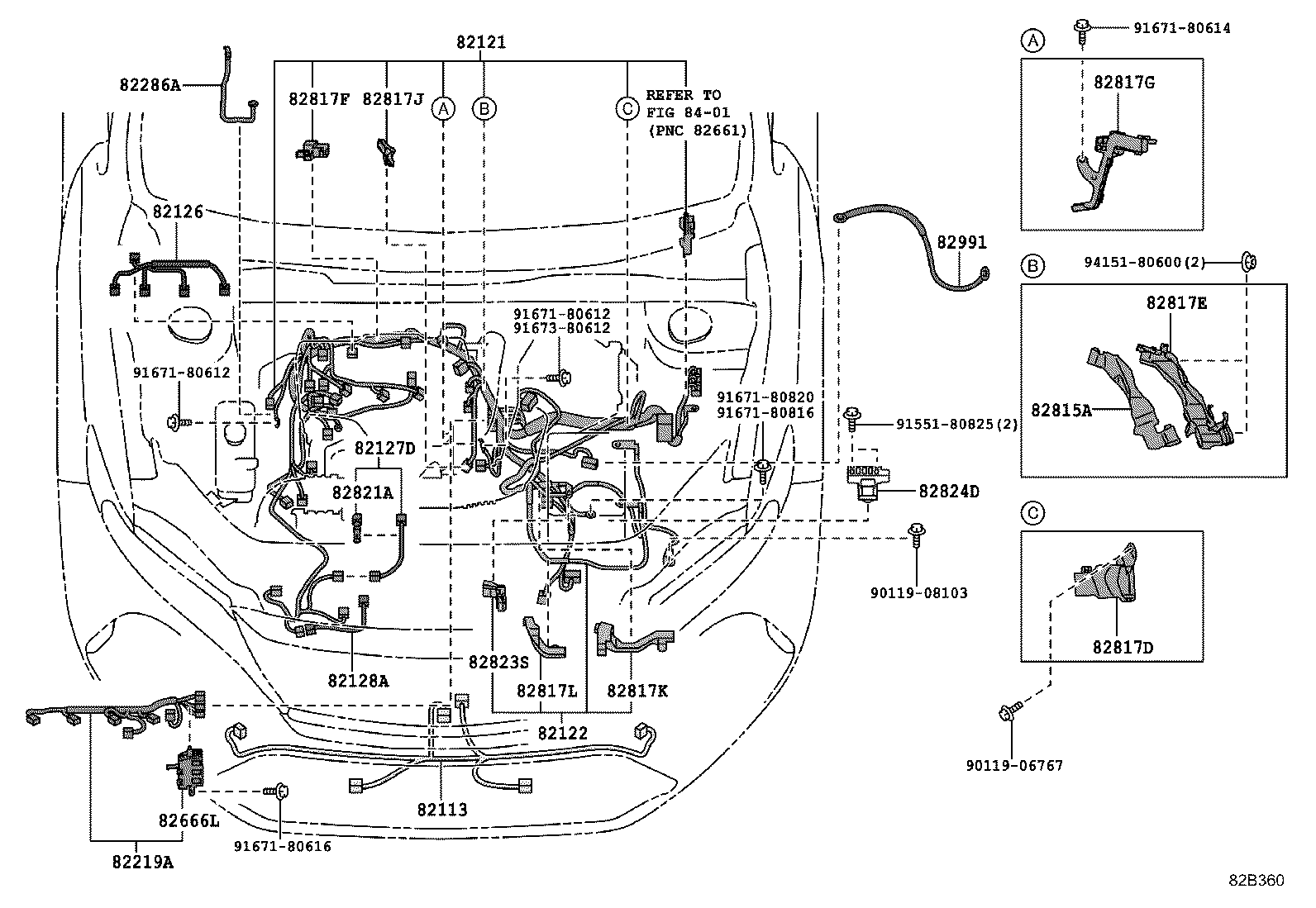

| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |

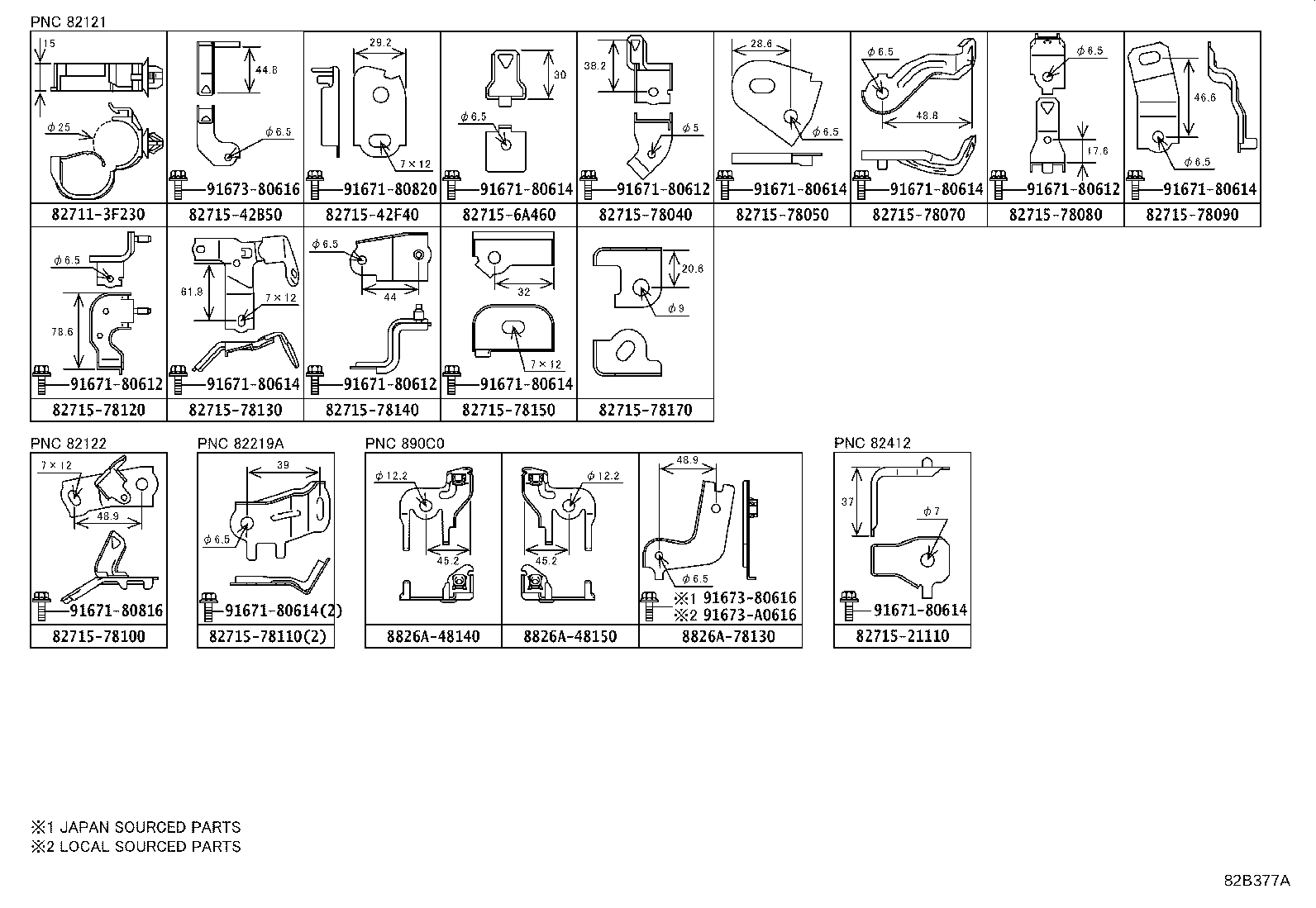

| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82126 | Wire, Engine |
| 82127D | Wire, Engine, NO.7 |
| 82128A | Wire, Engine, NO.8 |

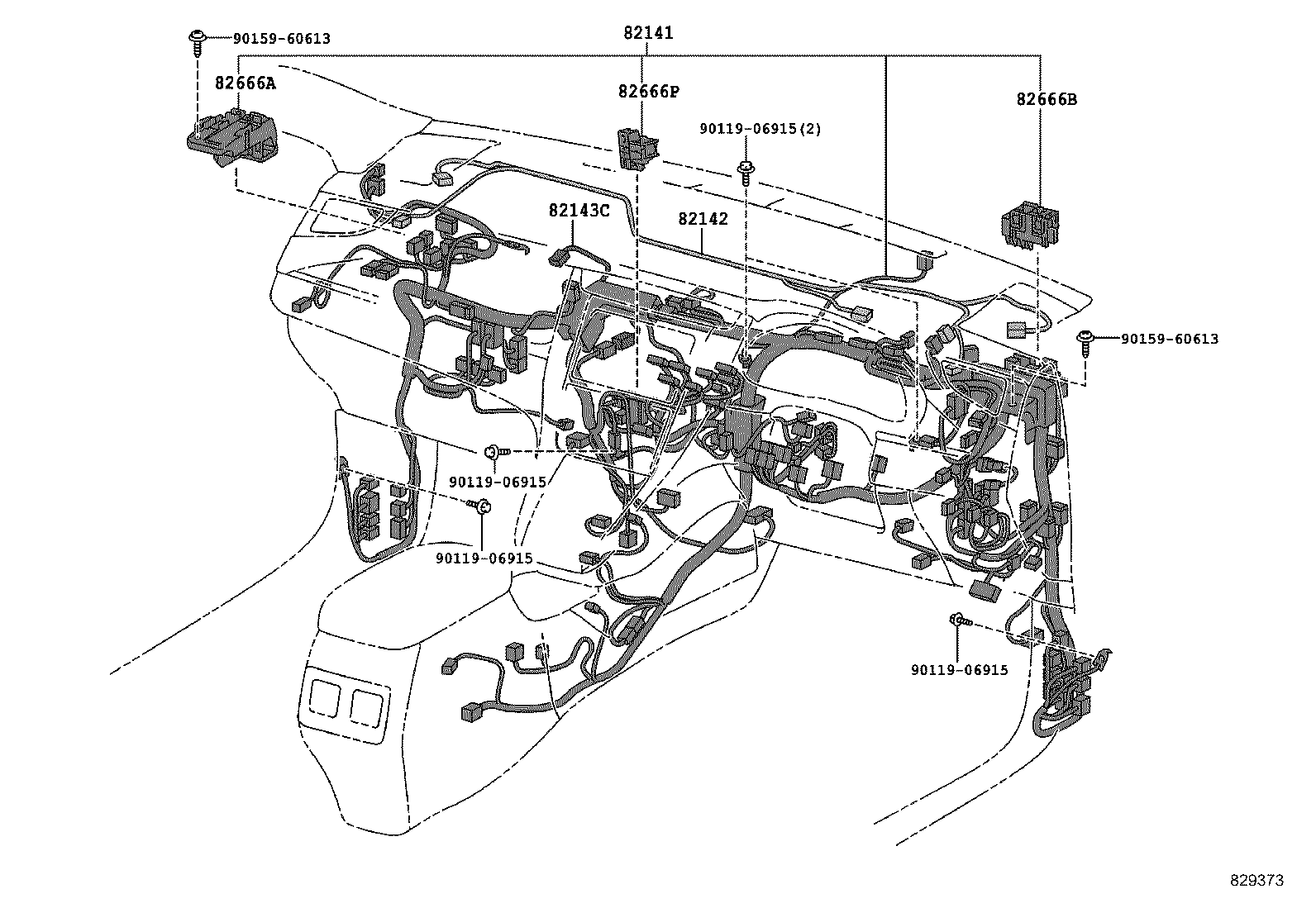

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |
| 82143C | Wire, Instrument Panel, NO.3 |

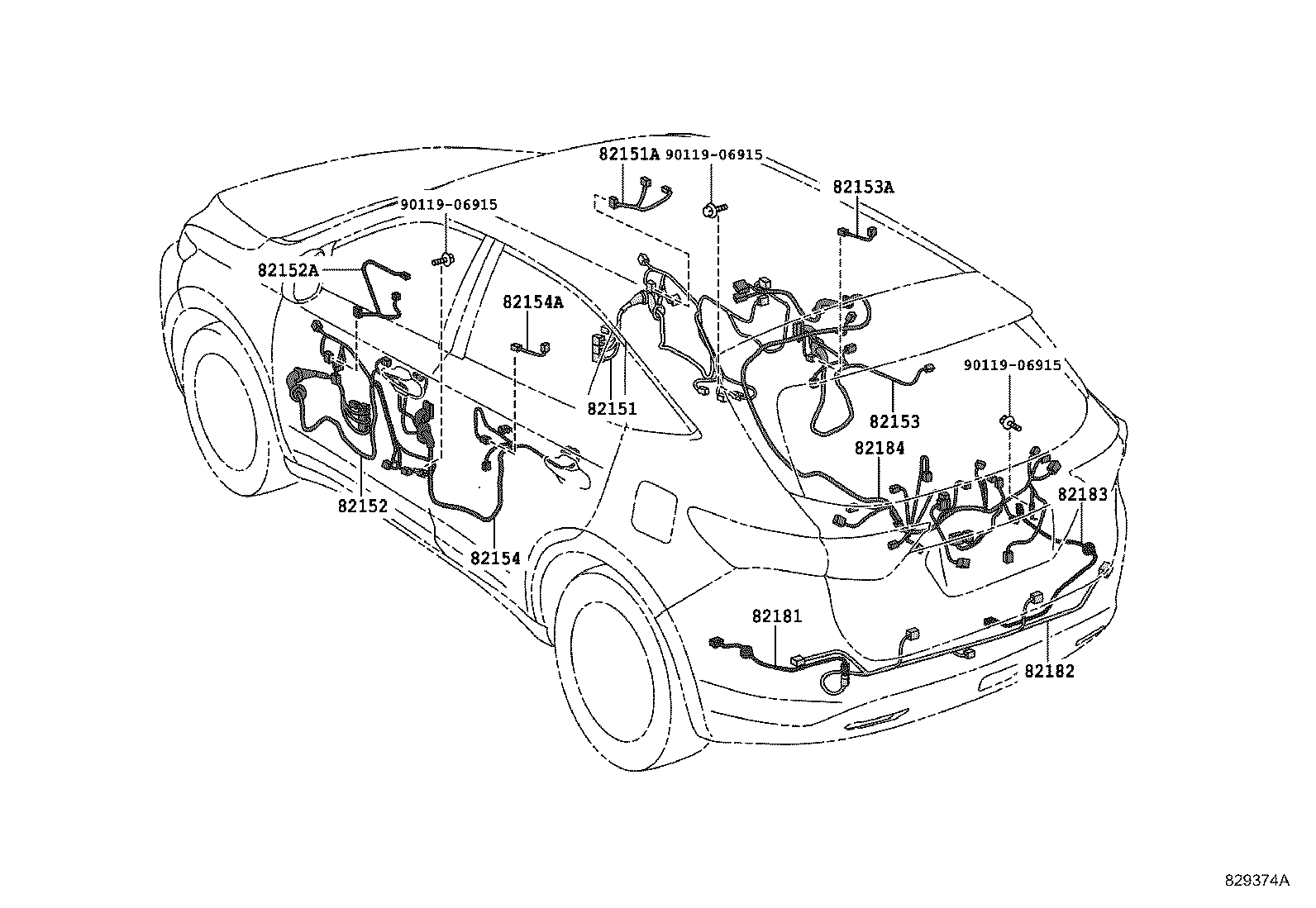

| 82151 | Wire, Front Door, RH |
| 82151A | Wire, Front Door, NO.2, RH |
| 82152 | Wire, Front Door, LH |
| 82152A | Wire, Front Door, NO.2, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82153A | Wire, Rear Door, RH |
| 82154 | Wire, Rear Door, NO.2 |
| 82154A | Wire, Rear Door, LH |

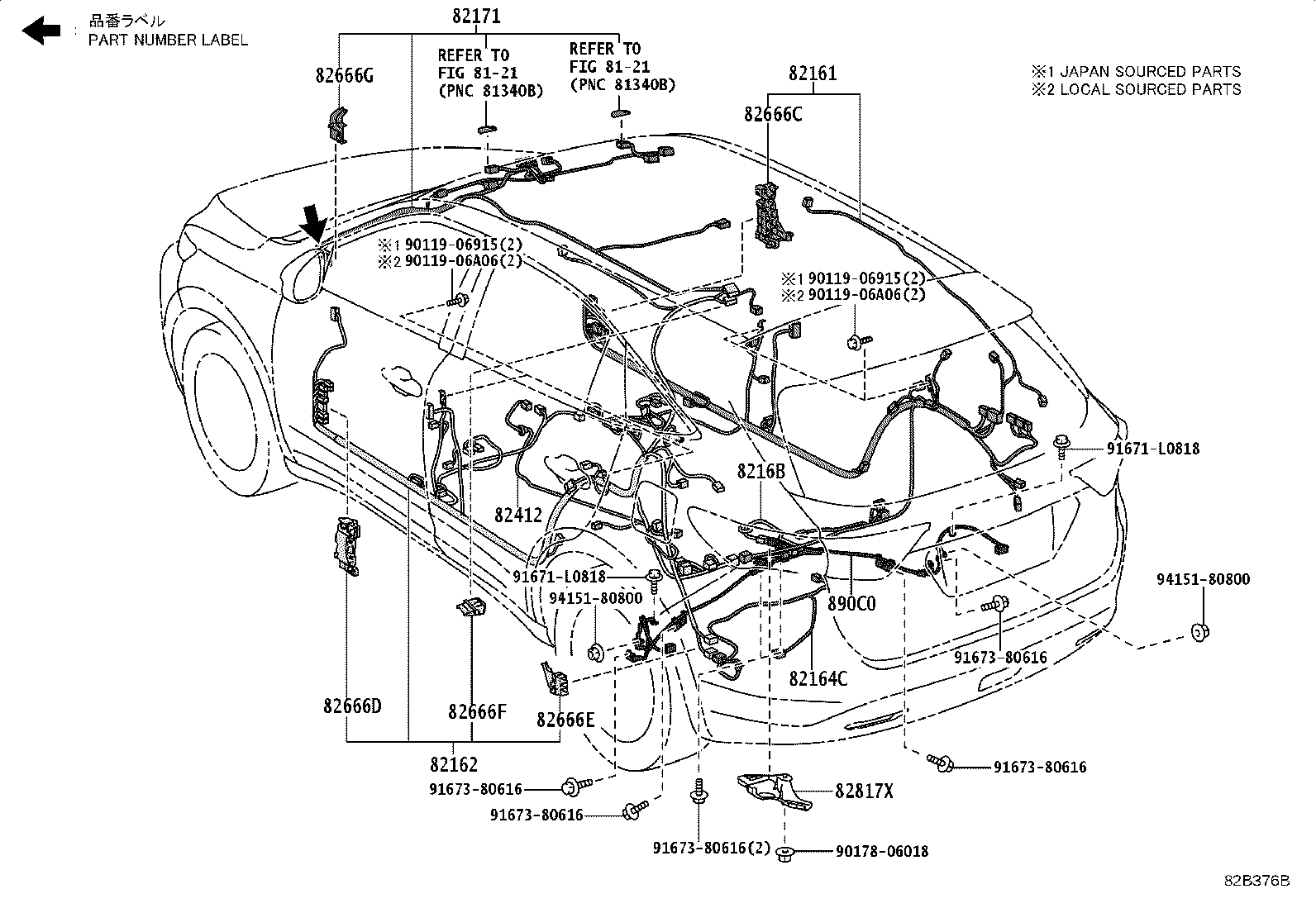

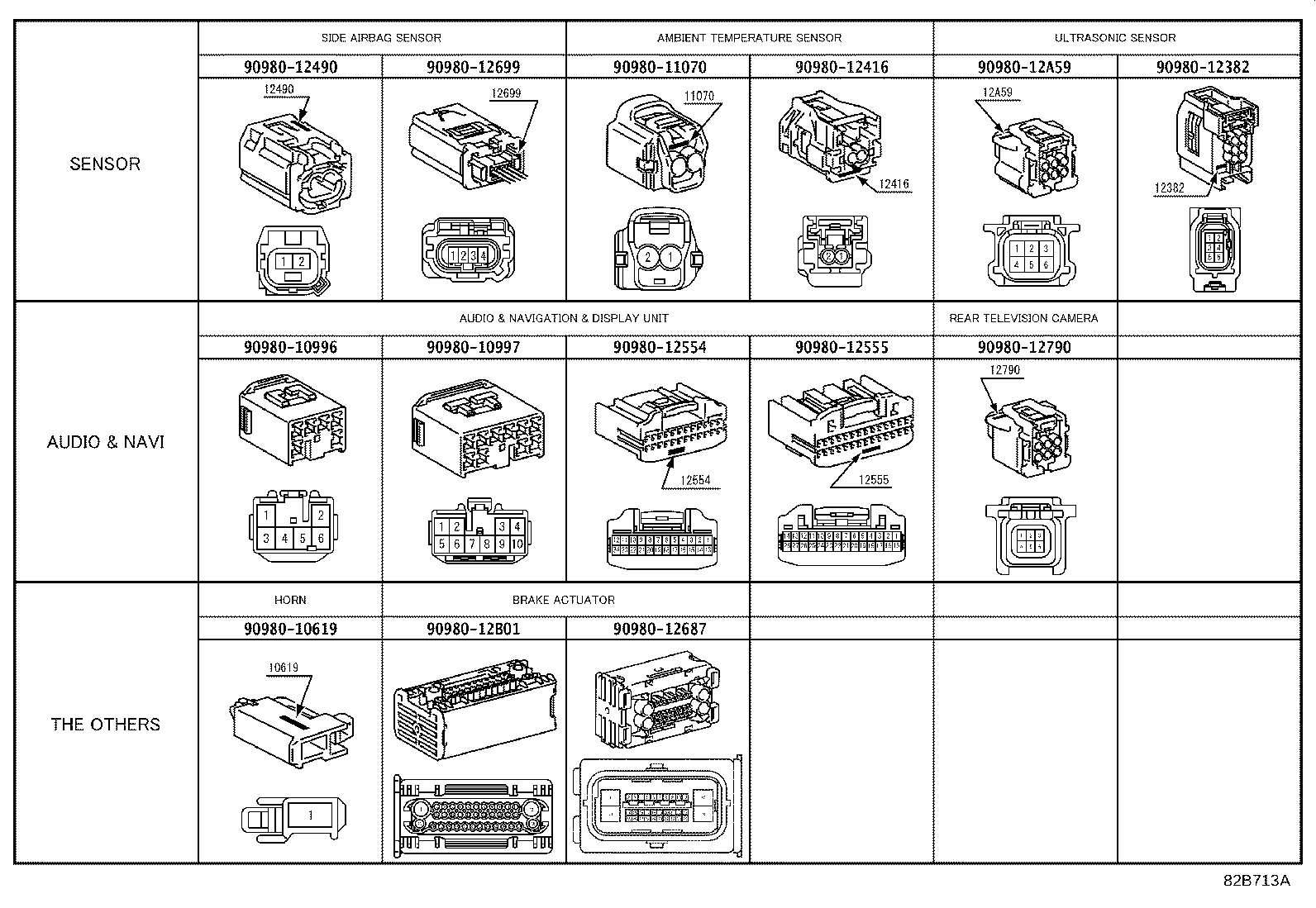

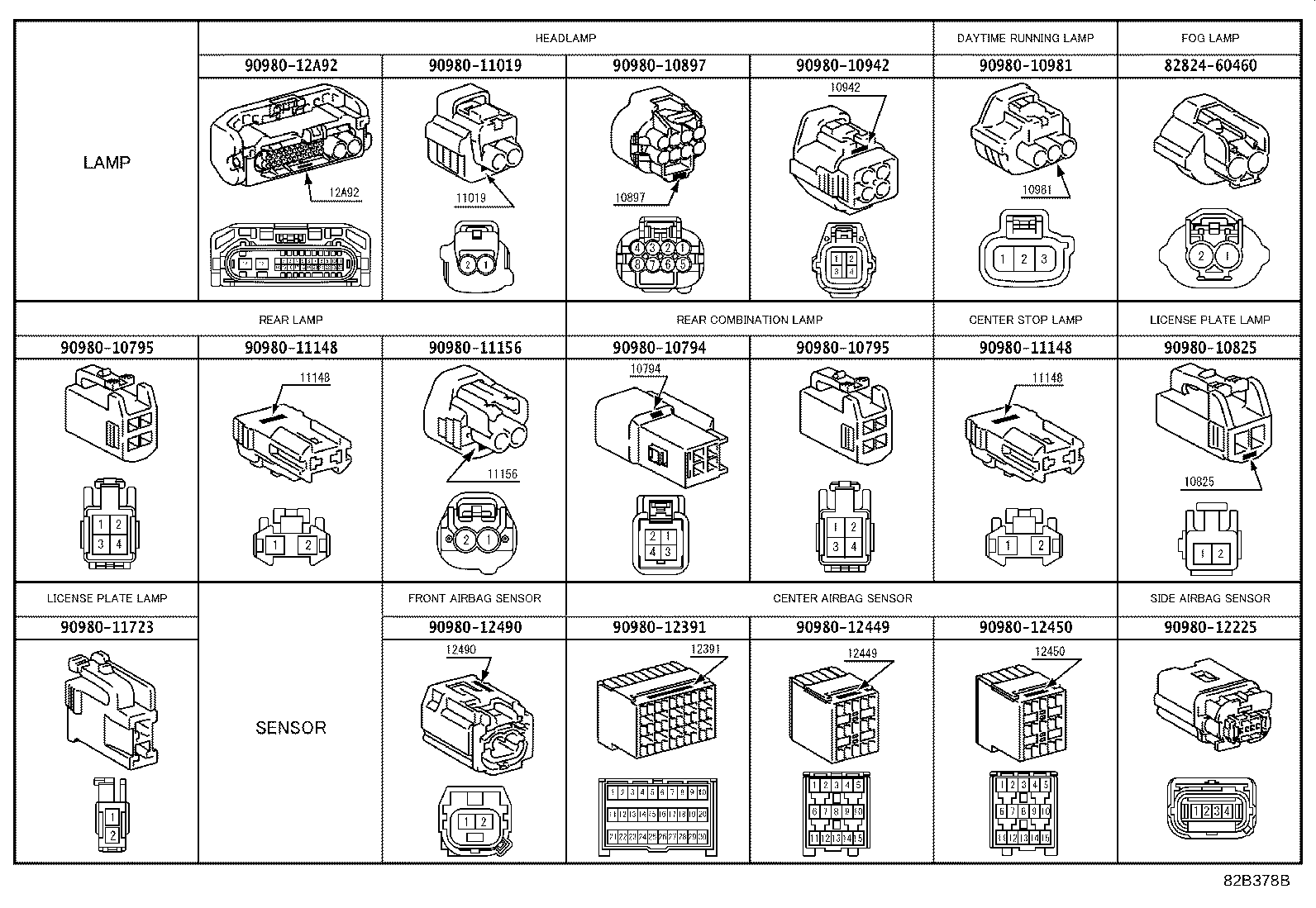

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164C | Wire, Floor, NO.4 |
| 8216B | Wire, Floor NO.8 |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |
| 82184 | Wire, Back Door, NO.1 |
| 82191 | Wire, Front Seat, RH |
| 82192 | Wire, Front Seat, LH |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 82219A | Wire, Sensor |
| 82286A | Wire, Earth, NO.2 |
| 82412 | Wire, Fuel Gage |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666P | Holder, Connector NO.11 |
| 82815A | Cover, Wiring Harness Protector |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82821A | Cover, Connector |
| 82823S | Cap, Starter Terminal |
| 82824D | Connector, Wiring Harness |
| 82930 | Condenser Assy, Wiring Harness, NO.1 |
| 82991 | Wire, Fusible Link Repair |
| 890C0 | Wire Assy, Parking Brake, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
