Toyota Harrier
2017-05 → 2020-05 · chassis ASU60 · catalogue 521340 · General
Supported model
Data version 2020-06
Mirror
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87915A | Cover, Outer Mirror, RH |
| 87915B | Cover, Outer Mirror, Lower RH |
| 87931 | Outer Mirror, RH |
| 87939 | Cover, Outer Mirror Hole, RH |

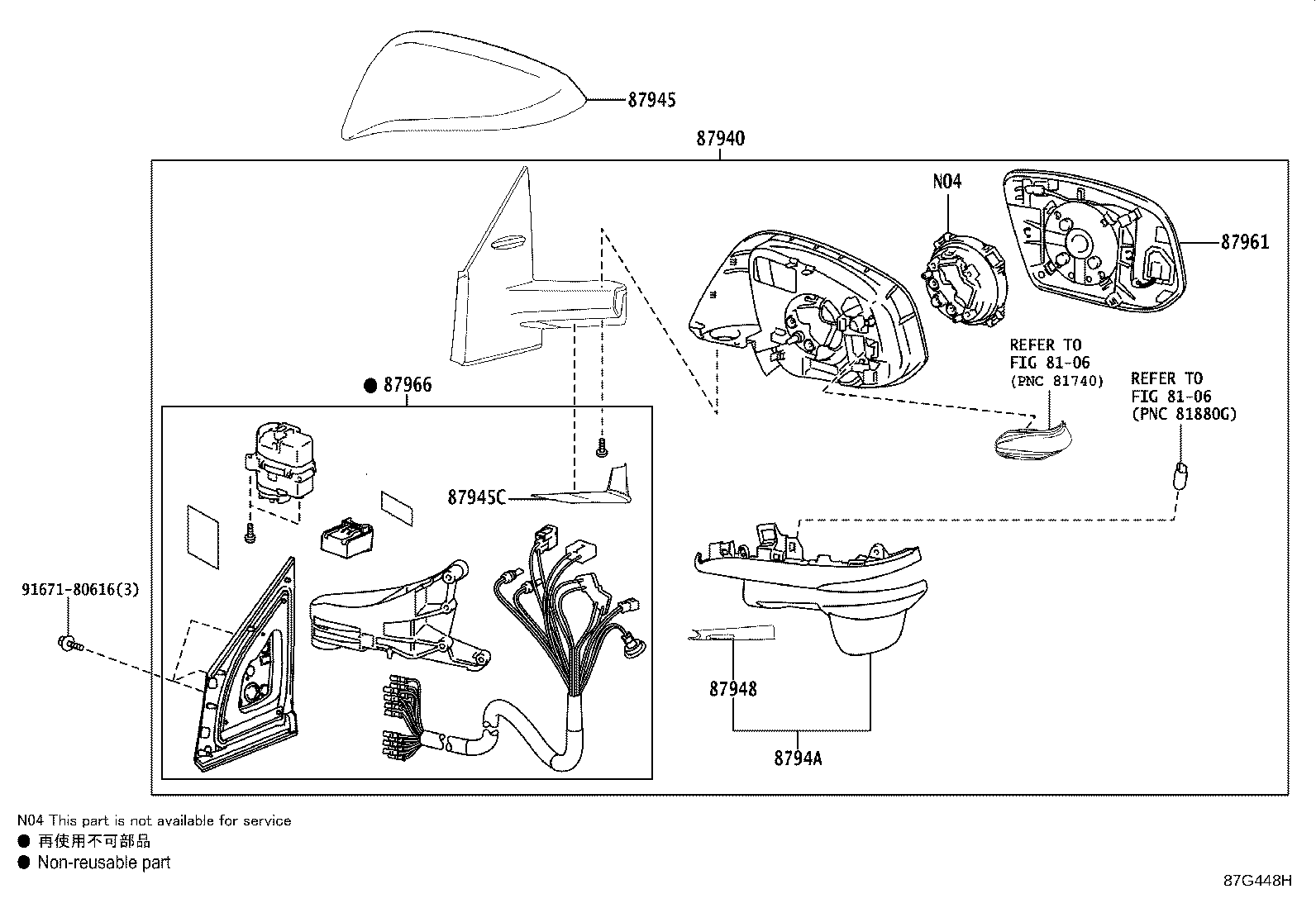

| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945C | Cover, Outer Mirror, Lower LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 8794A | Cover, Outer Mirror, LH NO.2 |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
