Heating & Air Conditioning - Control & Air Duct

15 part groups · 3 illustrations

Illustrations

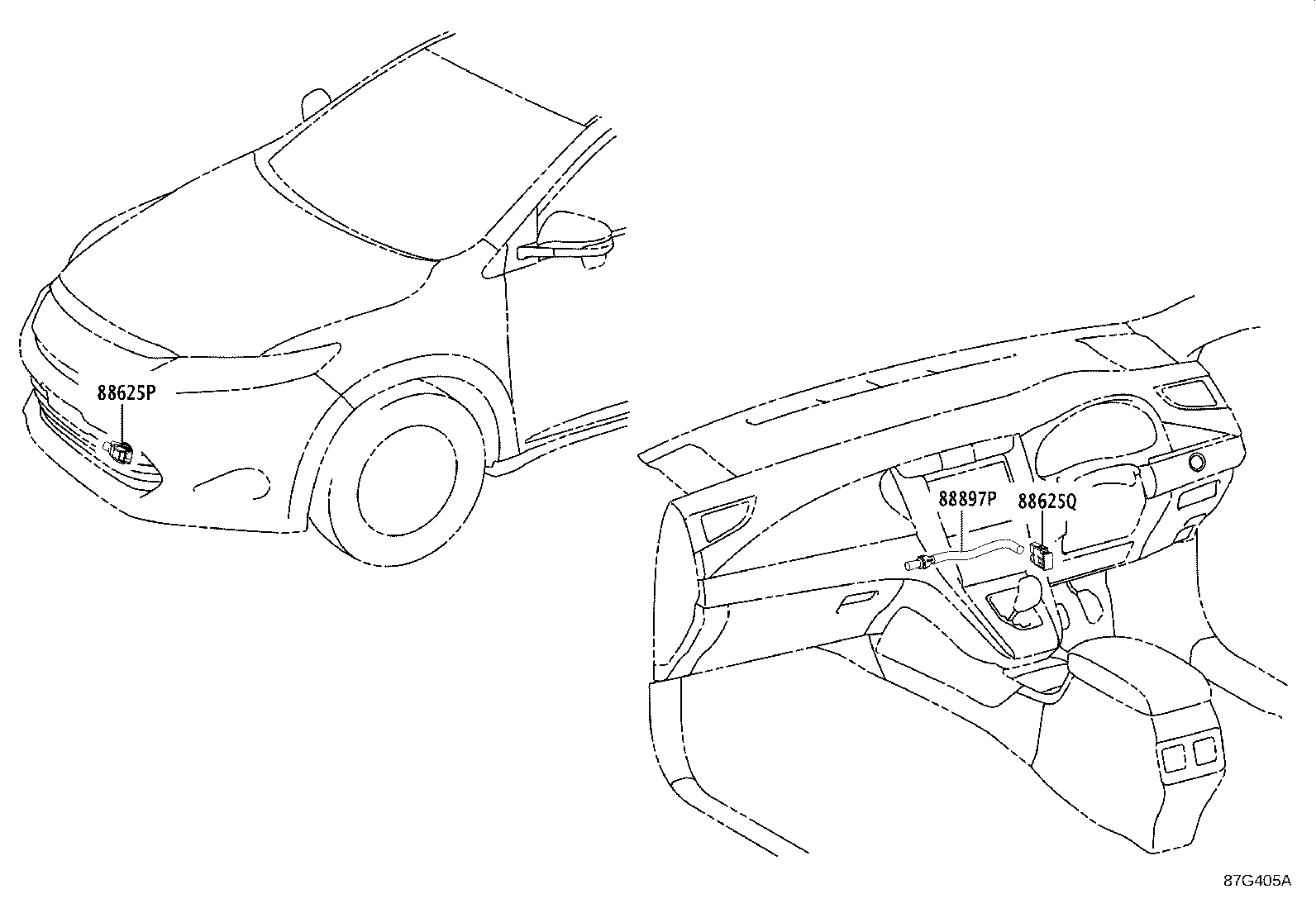

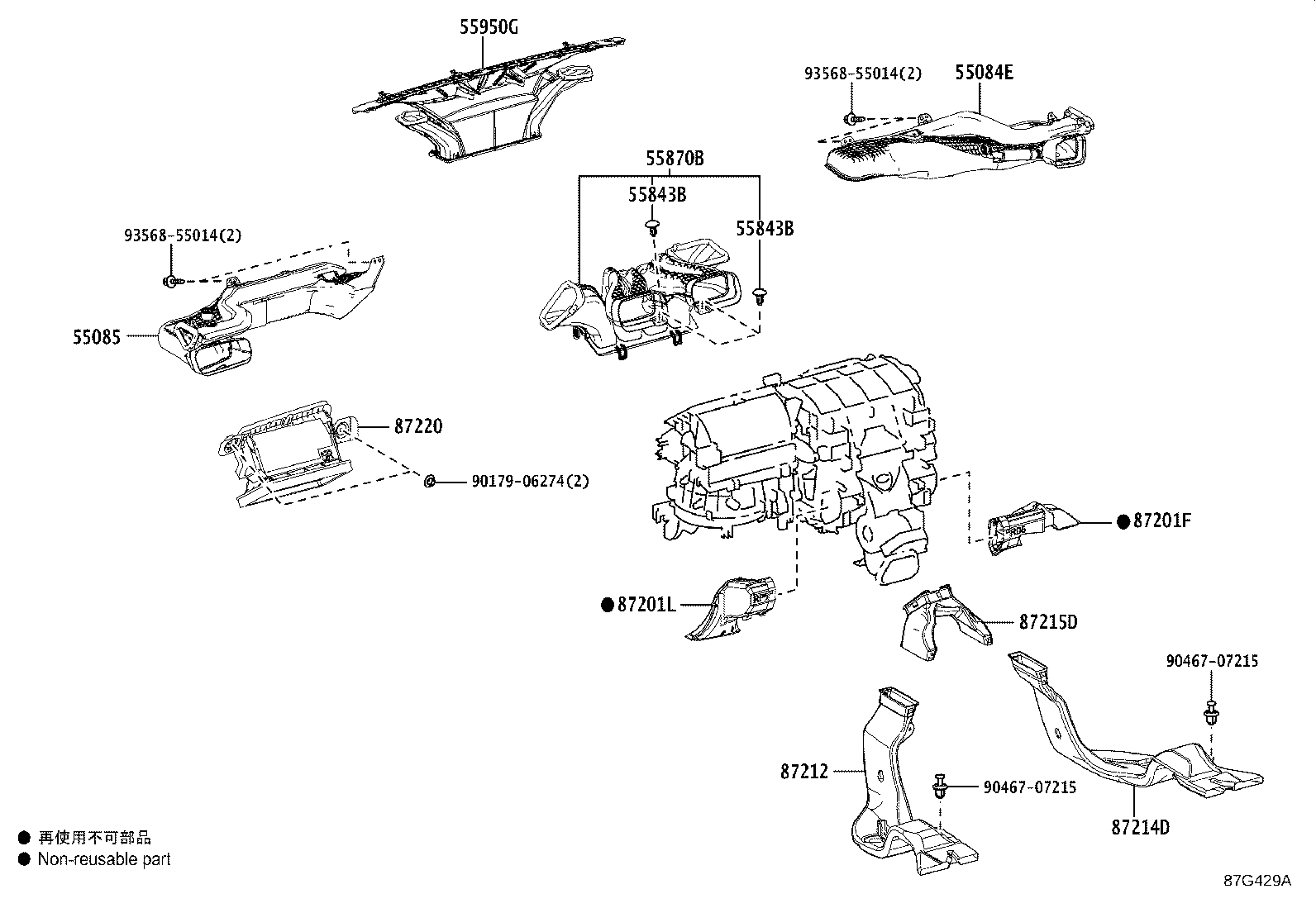

Figure 87G428A 87G428A 2017-05 → — Figure 87G429A 87G429A 2017-05 → — Figure 87G405A 87G405A 2017-05 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55843B Clip, Heater TO Register Duct
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55950G Nozzle Assy, Defroster
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87212 Duct, Air, Rear NO.1
87214D Duct, Air, Rear NO.3
87215D Duct, Air, Rear NO.4
87220 Duct Assy, Air
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
