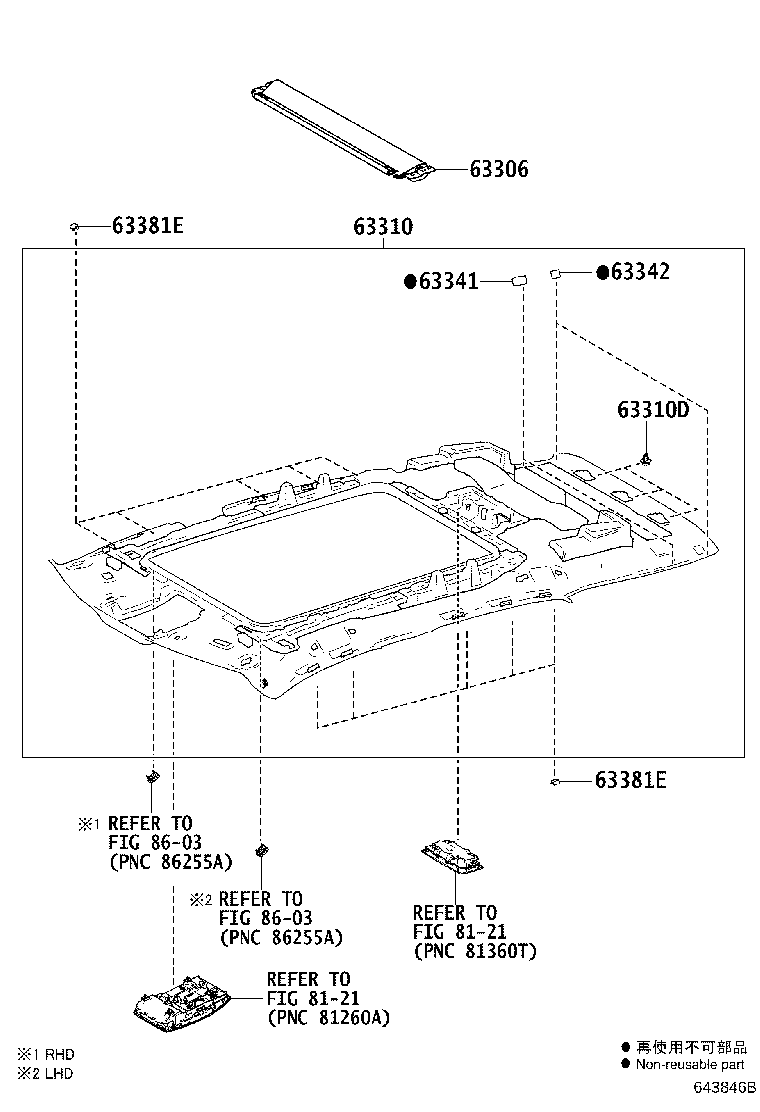

Exploded illustration 643846B 63310 — HEADLINING ASSY, ROOF (89 parts) 63306 — TRIM SUB-ASSY, SUNSHADE (61 parts) 63381E — RETAINER, ROOF HEADLINING TRIM, FRONT (2 parts) 63341 — PAD, ROOF SILENCER, NO.1 (3 parts) 63342 — PAD, ROOF SILENCER, NO.2 (2 parts) 63310D — CLIP, ROOF HEADLINING (3 parts) 63381E — RETAINER, ROOF HEADLINING TRIM, FRONT (2 parts) 8121 — not listed in this catalogue 8121 — not listed in this catalogue 8603 — not listed in this catalogue 8603 — not listed in this catalogue
643846B · 7 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
160 parts on this figure
Part number Description Fitment Price
63306 — Trim Sub-assy, Sunshade
63306-48180-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GYL25 CHI —
63306-48180-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25 CHI —
63306-48180-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GYL25 CHI —
63306-48180-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25 CHI —
63306-48180-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25 CHI —
63306-48180-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GYL25 CHI —
63306-48180-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25 CHI —
63306-48180-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GYL25 CHI —
63306-48180-C0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25 CHI —
63306-48180-C0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25 CHI —
63306-48190-A0 note Trim Sub-assy, Sunshade
2015-10 → 2019-08 ended
GYL25 CHI —
63306-48190-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25;AGL20,GGL2#,GYL25 GCC,GEN —
63306-48190-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GGL25,GYL25 RHD —
63306-48190-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20 CHI —
63306-48190-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GGL25,GYL25 RHD —
63306-48190-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25;AGL20,GGL2#,GYL25 GCC,GEN —
63306-48190-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GYL25 CHI —
63306-48190-C0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GGL25,GYL25 RHD —
63306-48190-C0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL25;AGL20,GGL2#,GYL25 GCC,GEN —
63306-48200-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GGL25,GYL25 RHD —
63306-48200-A0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL2#,GGL2#,GYL25 GCC,GEN —
63306-48200-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GGL25,GYL25 RHD —
63306-48200-B1 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL2#,GGL2#,GYL25 GCC,GEN —
63306-48200-C0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL20,GGL25,GYL25 RHD —
63306-48200-C0 note Trim Sub-assy, Sunshade
2015-09 → 2019-08 ended
AGL2#,GGL2#,GYL25 GCC,GEN —
63306-48180-A2 note Trim Sub-assy, Sunshade
2019-08 → 2020-06 ended
AGL2#,GYL25 CHI —
63306-48180-A2 note Trim Sub-assy, Sunshade
2019-08 → 2020-09 ended
AGL2#,GYL25 CHI —
63306-48180-B3 note Trim Sub-assy, Sunshade
2019-08 → 2020-09 ended
AGL20,GYL25 CHI —
63306-48180-B3 note Trim Sub-assy, Sunshade
2019-08 → 2020-09 ended
AGL25 CHI —
63306-48180-B3 note Trim Sub-assy, Sunshade
2019-08 → 2020-06 ended
AGL25 CHI —
63306-48180-B3 note Trim Sub-assy, Sunshade
2019-08 → 2020-06 ended
AGL20,GYL25 CHI —
63306-48180-C1 note Trim Sub-assy, Sunshade
2019-08 → 2020-06 ended
AGL25 CHI —
63306-48180-C1 note Trim Sub-assy, Sunshade
2019-08 → 2020-09 ended
AGL25 CHI —
63306-48190-A0 note Trim Sub-assy, Sunshade
2019-08 → 2021-09 ended
AGL20 CHI —
63306-48190-A0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL20,GGL25,GYL25 RHD —
63306-48190-A0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL25,GYL25;AGL20,GGL2# GCC,GEN —
63306-48190-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
AGL20 RHD;GGL25,GYL25 GCC —
63306-48190-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
AGL20 RHD —
63306-48190-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
AGL25 CHI;AGL20 LHD GEN;GGL25,GYL25 +1 —
63306-48190-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
GGL25,GYL25 RHD —
63306-48190-B1 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL25,GGL20 GCC,GEN;GGL25,GYL25 LHD GEN —
63306-48190-B1 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
GYL25 CHI —
63306-48190-B1 note Trim Sub-assy, Sunshade
2019-08 → 2021-09 ended
AGL20 CHI —
63306-48190-B1 note Trim Sub-assy, Sunshade
2019-08 → 2020-07 ended
AGL20 GEN;GYL25 GCC;GGL25,GYL25 RHD;AGL25,GGL25 +1 —
63306-48190-B1 note Trim Sub-assy, Sunshade
2019-08 → 2020-07 ended
AGL20,GGL25,GYL25 RHD —
63306-48190-C0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL20,GGL25,GYL25 RHD —
63306-48190-C0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL25;AGL20,GGL2#,GYL25 GCC,GEN —
63306-48200-A0 note Trim Sub-assy, Sunshade
2020-09 → 2022-09 ended
AGL2#,GYL25 CHI —
63306-48200-A0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL2#,GGL2#,GYL25 GCC,GEN —
63306-48200-A0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL20,GGL25,GYL25 RHD —
63306-48200-B1 note Trim Sub-assy, Sunshade
2019-08 → 2020-07 ended
AGL20,GGL25,GYL25 RHD —
63306-48200-B1 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL25,GGL20 GCC,GEN;GGL25,GYL25 LHD GEN —
63306-48200-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
AGL25 CHI —
63306-48200-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
AGL20,GGL25,GYL25 RHD —
63306-48200-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
AGL20 LHD GEN;GGL25,GYL25 RHD —
63306-48200-B1 note Trim Sub-assy, Sunshade
2020-07 → 2022-09 ended
AGL20 RHD;GGL25,GYL25 GCC —
63306-48200-B1 note Trim Sub-assy, Sunshade
2019-08 → 2020-07 ended
AGL20 GEN;GGL25,GYL25 RHD;GGL25,GYL25 GCC —
63306-48200-B1 note Trim Sub-assy, Sunshade
2020-09 → 2022-09 ended
AGL20,GYL25 CHI —
63306-48200-C0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL20,GGL25,GYL25 RHD —
63306-48200-C0 note Trim Sub-assy, Sunshade
2020-09 → 2022-09 ended
AGL25 CHI —
63306-48200-C0 note Trim Sub-assy, Sunshade
2019-08 → 2022-09 ended
AGL2#,GGL2#,GYL25 GCC,GEN —
63310 — Headlining Assy, Roof
63310-48500-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48500-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48500-C0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48501-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48501-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48501-C0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48510-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48510-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48510-C0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48511-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48511-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48511-C0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48560-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48560-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48560-C0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48561-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48561-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48561-C0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 RHD —
63310-48570-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48570-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48570-C0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48571-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48571-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48571-C0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48580-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL20,GYL25 CHI —
63310-48580-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48580-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL25 CHI —
63310-48580-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48580-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL20,GYL25 CHI —
63310-48580-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL25 CHI —
63310-48580-C0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48580-C0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL25 CHI —
63310-48581-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
GYL25 CHI —
63310-48581-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL20 CHI —
63310-48581-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL25 CHI —
63310-48581-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48581-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL25 CHI —
63310-48581-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL20,GYL25 CHI —
63310-48581-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48581-C0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL25 CHI —
63310-48581-C0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48590-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL25,GGL2# LHD;AGL20,GYL25 LHD (GCC,GEN) —
63310-48590-A0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL20,GYL25 CHI —
63310-48590-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL25,GGL2# LHD;AGL20,GYL25 LHD (GCC,GEN) —
63310-48590-B1 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL20,GYL25 CHI —
63310-48590-C0 note Headlining Assy, Roof
2015-09 → 2018-08 ended
AGL25,GGL2# LHD;AGL20,GYL25 LHD (GCC,GEN) —
63310-48591-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL20 CHI —
63310-48591-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL25,GGL2# LHD;AGL20,GYL25 LHD (GCC,GEN) —
63310-48591-A0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
GYL25 CHI —
63310-48591-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL20,GYL25 CHI —
63310-48591-B1 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL25,GGL2# LHD;AGL20,GYL25 LHD (GCC,GEN) —
63310-48591-C0 note Headlining Assy, Roof
2018-08 → 2019-08 ended
AGL25,GGL2# LHD;AGL20,GYL25 LHD (GCC,GEN) —
63310-48501-A0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL25,GYL25 RHD —
63310-48501-B1 note Headlining Assy, Roof
2019-08 → —
AGL25 RHD —
63310-48501-B1 note Headlining Assy, Roof
2019-08 → —
AGL20 RHD —
63310-48501-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 RHD —
63310-48501-C0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL25,GYL25 RHD —
63310-48511-A0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL25,GYL25 RHD —
63310-48511-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 RHD —
63310-48511-B1 note Headlining Assy, Roof
2019-08 → —
AGL25 RHD —
63310-48511-B1 note Headlining Assy, Roof
2019-08 → —
AGL20 RHD —
63310-48511-C0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL25,GYL25 RHD —
63310-48561-A0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL25,GYL25 RHD —
63310-48561-B1 note Headlining Assy, Roof
2019-08 → —
AGL25 RHD —
63310-48561-B1 note Headlining Assy, Roof
2019-08 → —
AGL20 RHD —
63310-48561-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 RHD —
63310-48561-C0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL25,GYL25 RHD —
63310-48571-A0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48571-B1 note Headlining Assy, Roof
2019-08 → —
AGL20 LHD GEN —
63310-48571-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 GCC —
63310-48571-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 LHD GEN;AGL25,GGL20 LHD +1 —
63310-48571-C0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48581-A0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GYL25 CHI —
63310-48581-A0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48581-B1 note Headlining Assy, Roof
2019-08 → —
AGL25 CHI —
63310-48581-B1 note Headlining Assy, Roof
2019-08 → —
AGL20,GYL25 CHI —
63310-48581-B1 note Headlining Assy, Roof
2019-08 → —
AGL20 LHD GEN —
63310-48581-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 GCC —
63310-48581-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 LHD GEN;AGL25,GGL20 LHD +1 —
63310-48581-C0 note Headlining Assy, Roof
2019-08 → —
AGL2#,GGL2#,GYL25 LHD (GCC,GEN) —
63310-48581-C0 note Headlining Assy, Roof
2019-08 → —
AGL25 CHI —
63310-48591-A0 note Headlining Assy, Roof
2019-08 → —
AGL20 LHD GEN;AGL25,GGL2#,GYL25 LHD —
63310-48591-A0 note Headlining Assy, Roof
2019-08 → 2021-09 ended
AGL20 CHI —
63310-48591-B1 note Headlining Assy, Roof
2019-08 → 2021-09 ended
AGL20 CHI —
63310-48591-B1 note Headlining Assy, Roof
2019-08 → —
GYL25 CHI —
63310-48591-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 GCC —
63310-48591-B1 note Headlining Assy, Roof
2019-08 → —
AGL25 CHI;AGL20 LHD GEN —
63310-48591-B1 note Headlining Assy, Roof
2019-08 → —
GGL25,GYL25 LHD GEN;AGL25,GGL20 LHD +1 —
63310-48591-C0 note Headlining Assy, Roof
2019-08 → —
AGL25,GGL2# LHD;AGL20,GYL25 LHD (GCC,GEN) —
63310D — Clip, Roof Headlining
90467-09240 Clip, Roof Headlining
2015-09 → 2019-08 ended
AGL2#,GGL2#,GYL25 —
90467-09240 Clip, Roof Headlining
2019-08 → 2021-11 ended
AGL2#,GGL2#,GYL25 —
90467-09245 Clip, Roof Headlining
2021-12 → —
AGL2#,GGL2#,GYL25 —
63341 — Pad, Roof Silencer, NO.1
62641-48010 Pad, Roof Silencer, NO.1
2015-09 → 2019-08 ended
AGL2#,GGL2#,GYL25 —
62641-48010 Pad, Roof Silencer, NO.1
2019-08 → 2021-12 ended
AGL2#,GGL2#,GYL25 —
62642-48010 Pad, Roof Silencer, NO.1
2021-12 → —
AGL2#,GGL2#,GYL25 —
63342 — Pad, Roof Silencer, NO.2
62642-48010 Pad, Roof Silencer, NO.2
2015-09 → 2019-08 ended
AGL2#,GGL2#,GYL25 —
62642-48010 Pad, Roof Silencer, NO.2
2019-08 → —
AGL2#,GGL2#,GYL25 —
63381E — Retainer, Roof Headlining Trim, Front
63381-30120 Retainer, Roof Headlining Trim, Front
2015-09 → 2019-08 ended
AGL2#,GGL2#,GYL25 —
63381-30120 Retainer, Roof Headlining Trim, Front
2019-08 → —
AGL2#,GGL2#,GYL25 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
