Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL2#,GYL25 · catalogue 521350 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

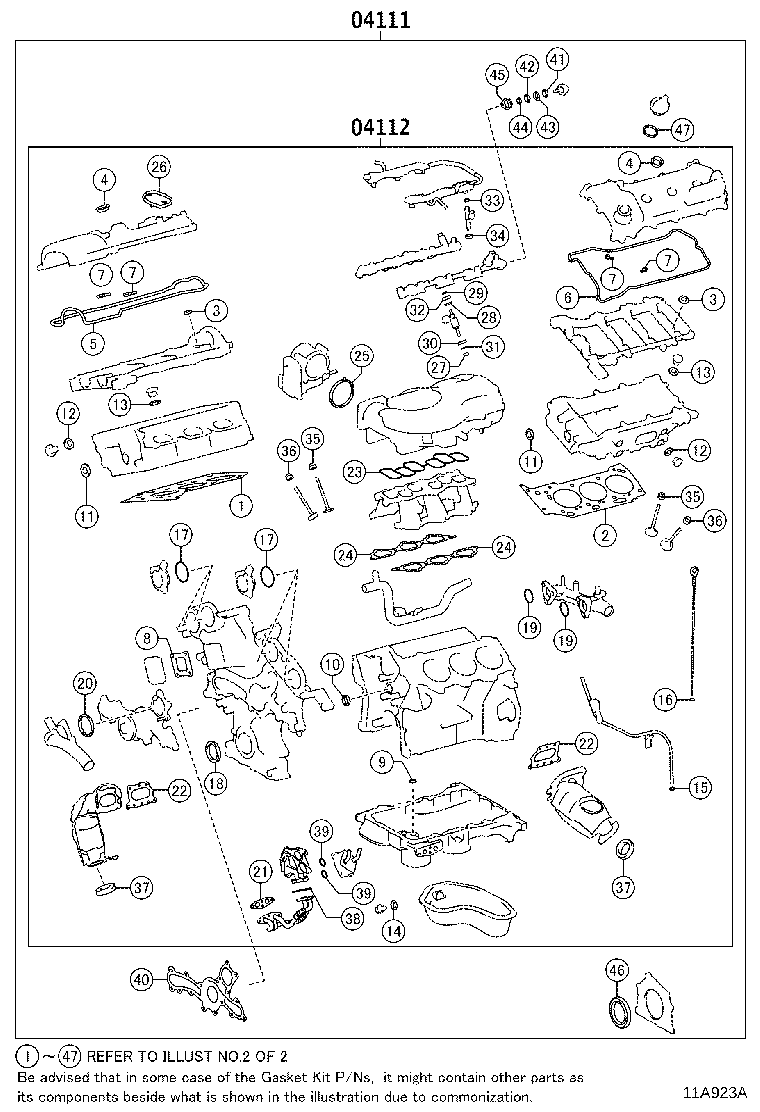

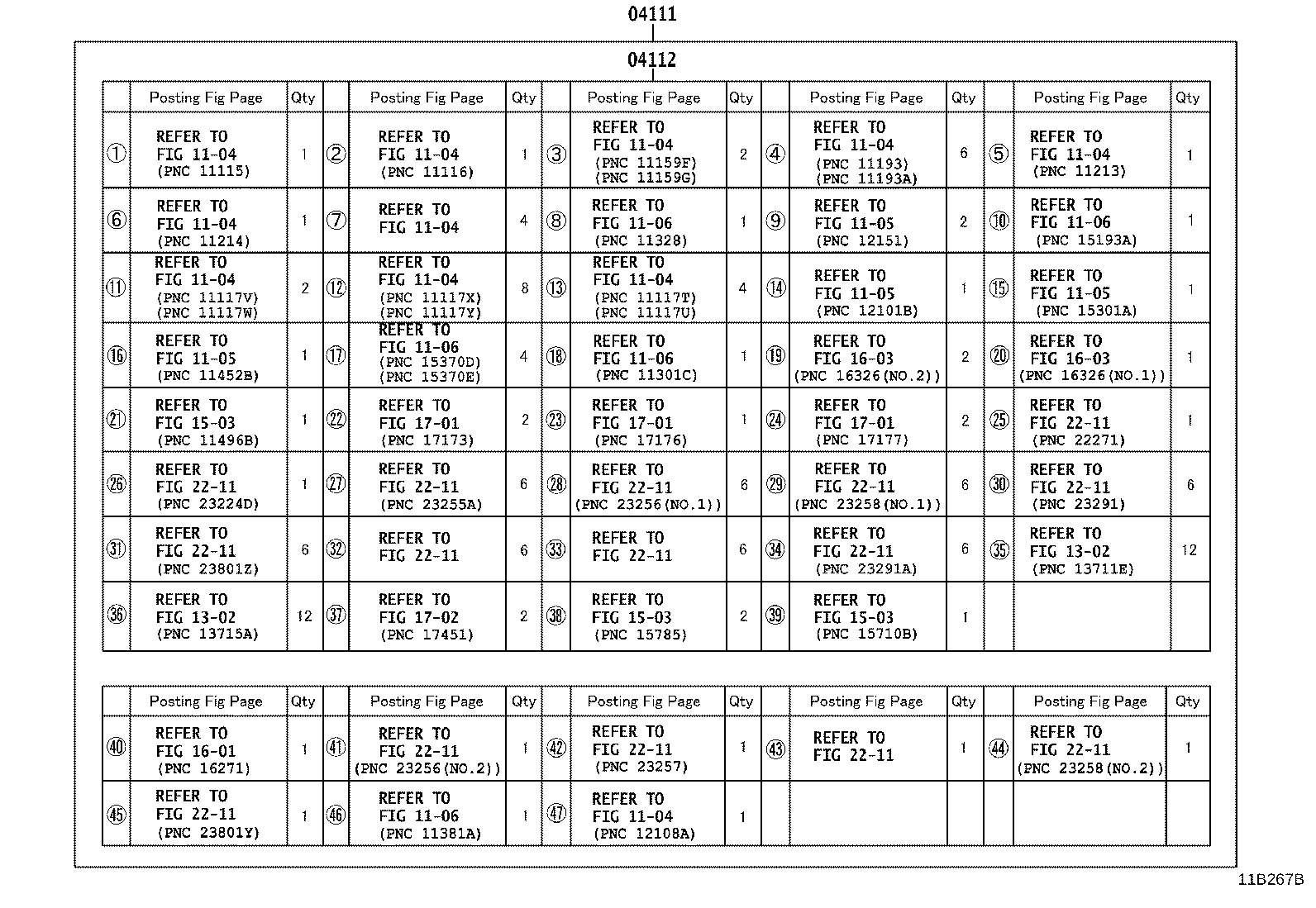

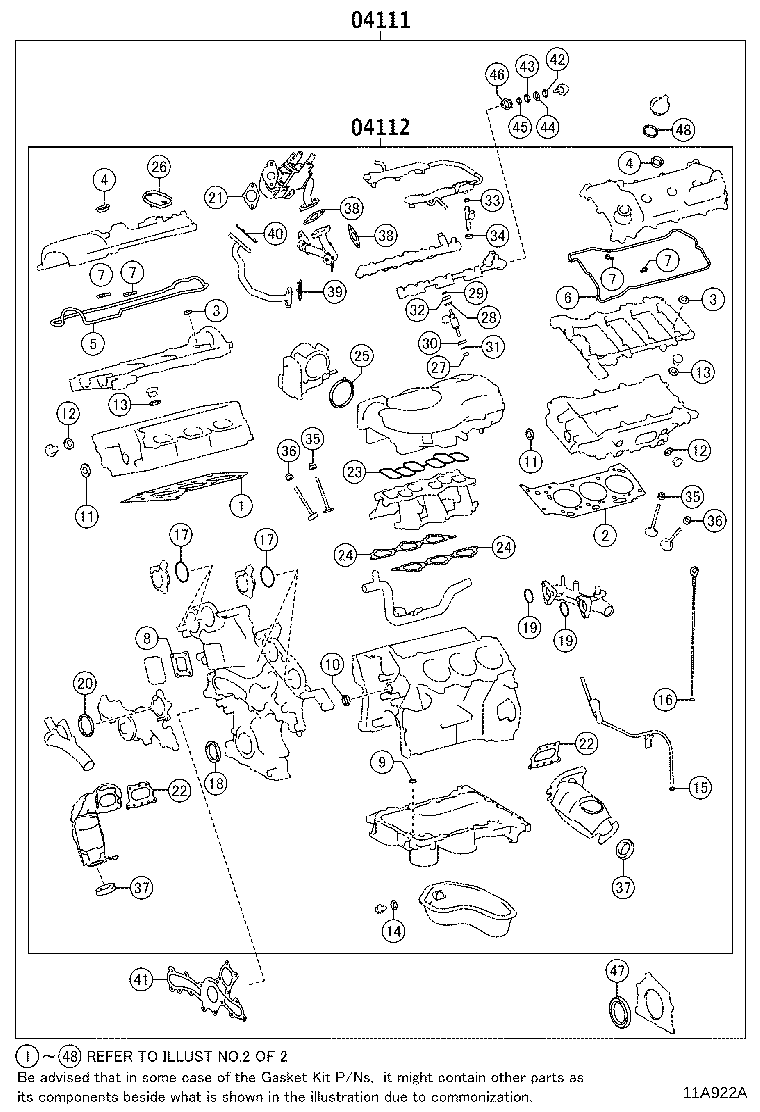

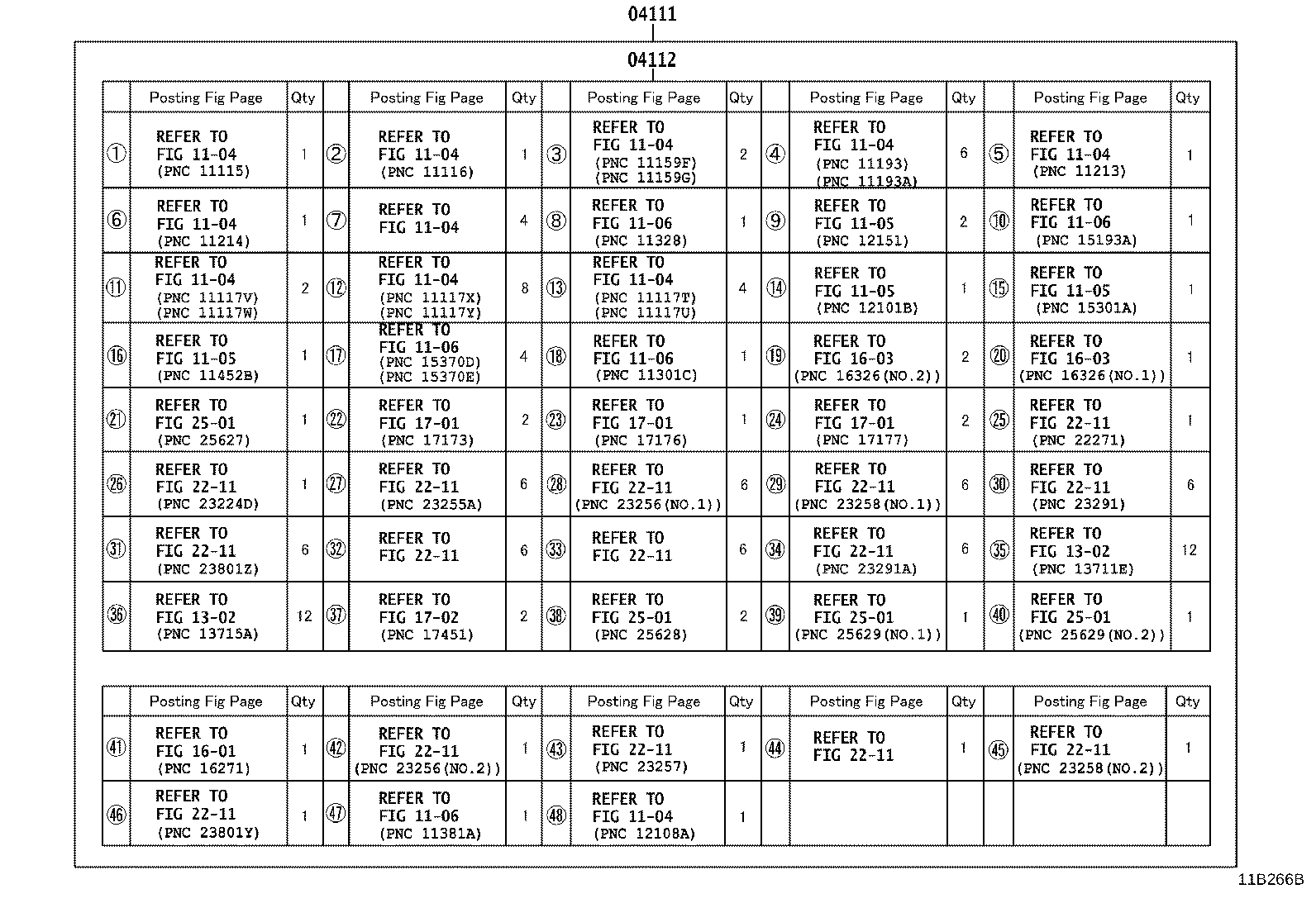

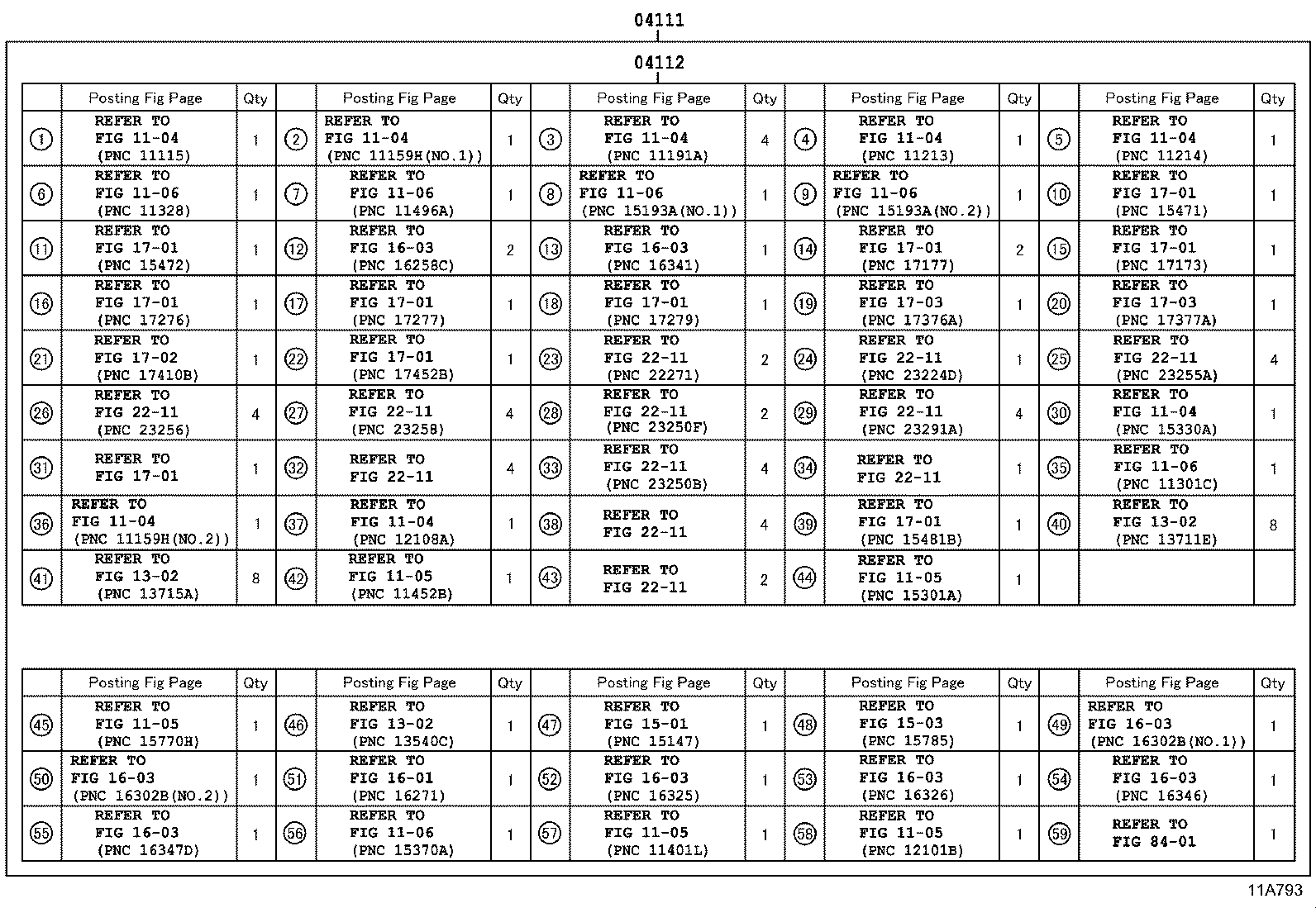

Figure 11A792A 11A792A 2015-09 → — Figure 11A793 11A793 2015-09 → — Figure 11A923A 11A923A 2015-09 → — Figure 11A922A 11A922A 2015-10 → — Figure 11B266B 11B266B 2015-10 → — Figure 11B267B 11B267B 2015-09 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
