Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL2#,GYL25 · catalogue 521350 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 3 illustrations

Illustrations

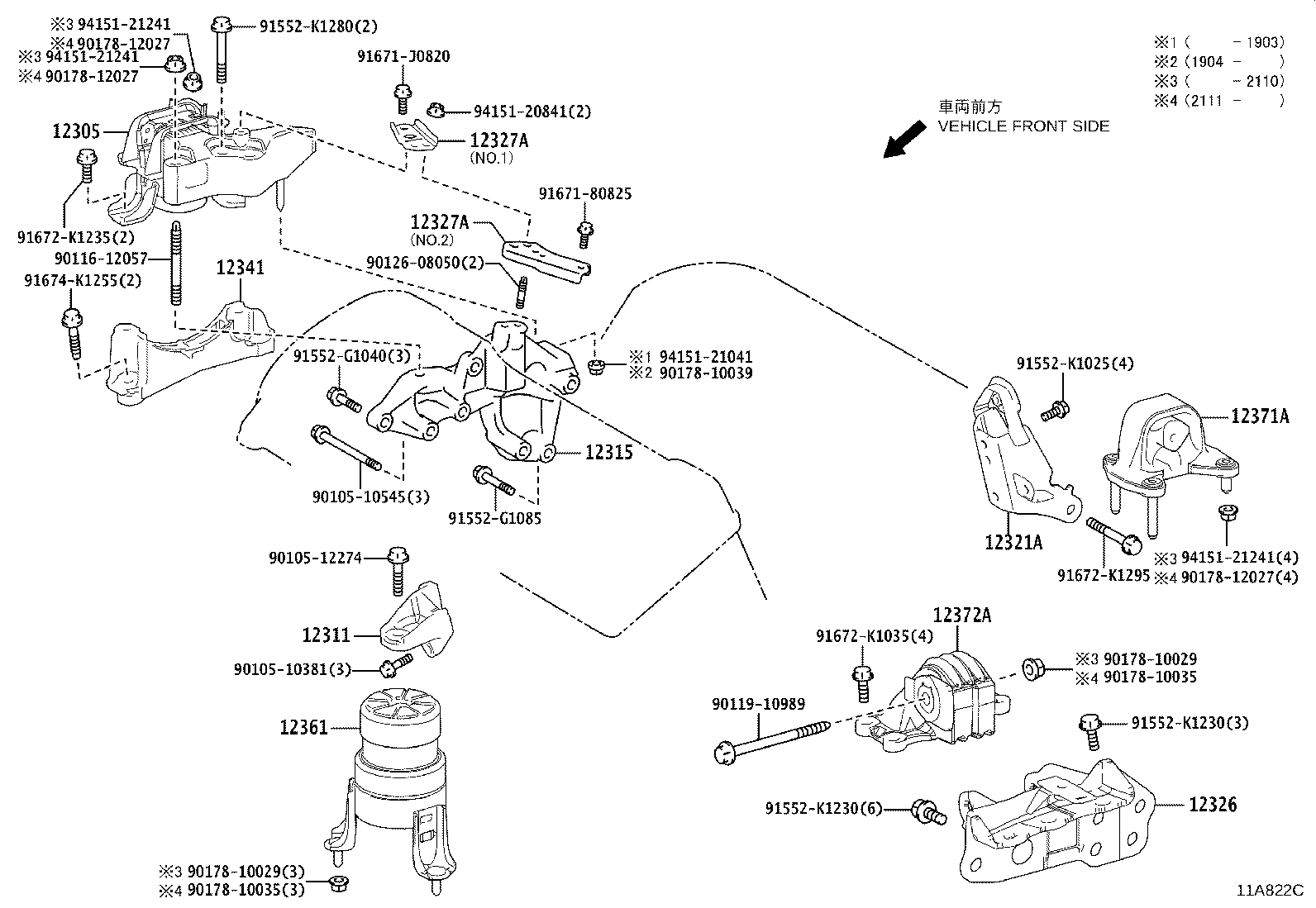

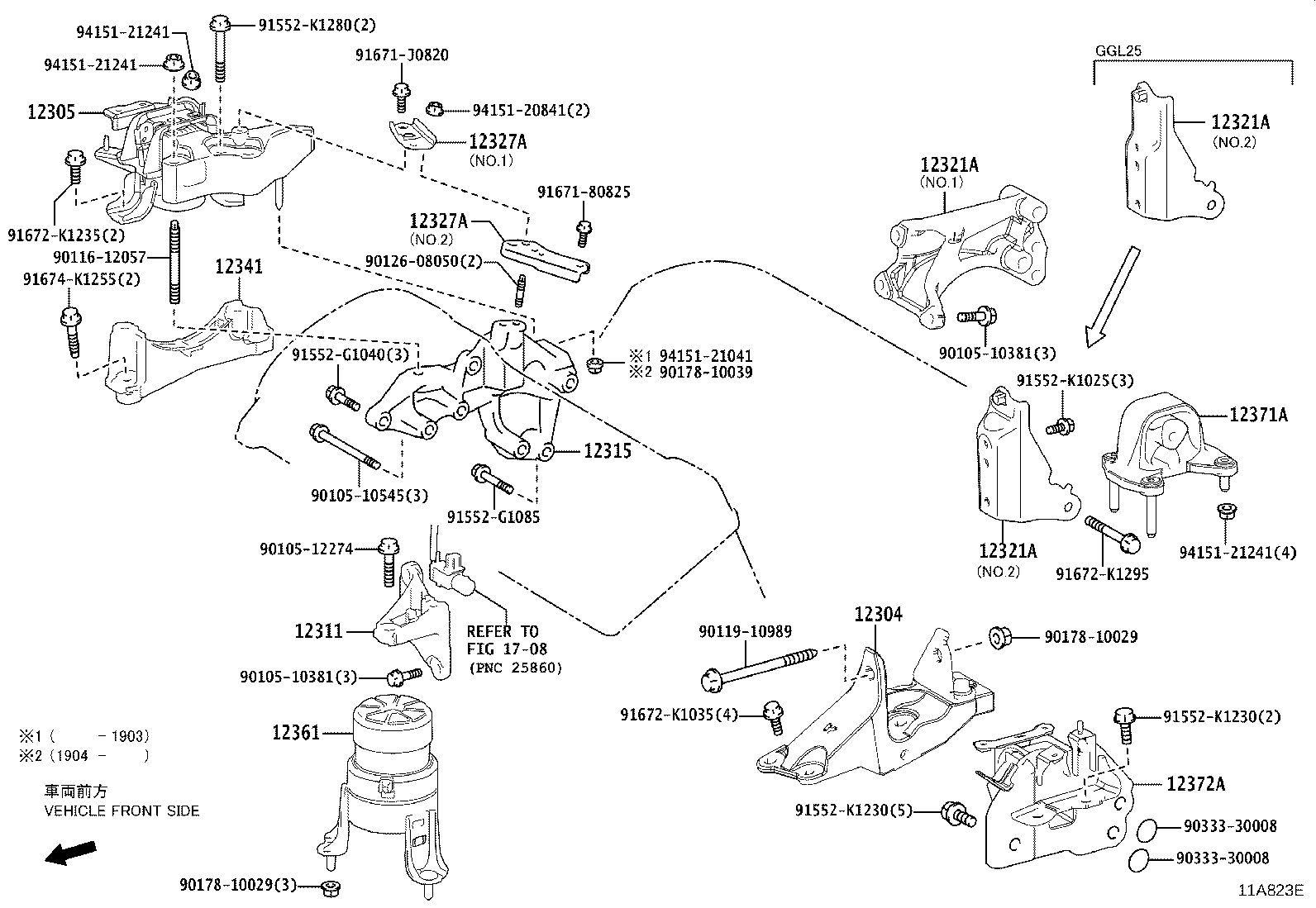

Figure 11A739D 11A739D 2015-09 → — Figure 11A823E 11A823E 2015-09 → — Figure 11A822C 11A822C 2015-10 → —

Part groups

PNCDescription
12304 Bracket Sub-assy, Engine Mounting, LH
12305 Insulator Sub-assy, Engine Mounting, RH
12311 Bracket, Engine Mounting, Front NO.1 RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12326 Bracket, Engine Mounting Stay
12327A Stay, Engine Mounting, NO.2 RH
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12361 Insulator, Engine Mounting, Front
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
