Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL2#,GYL25 · catalogue 521350 · General

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 2 illustrations

Illustrations

Figure 166120B

166120B 2015-09 → —

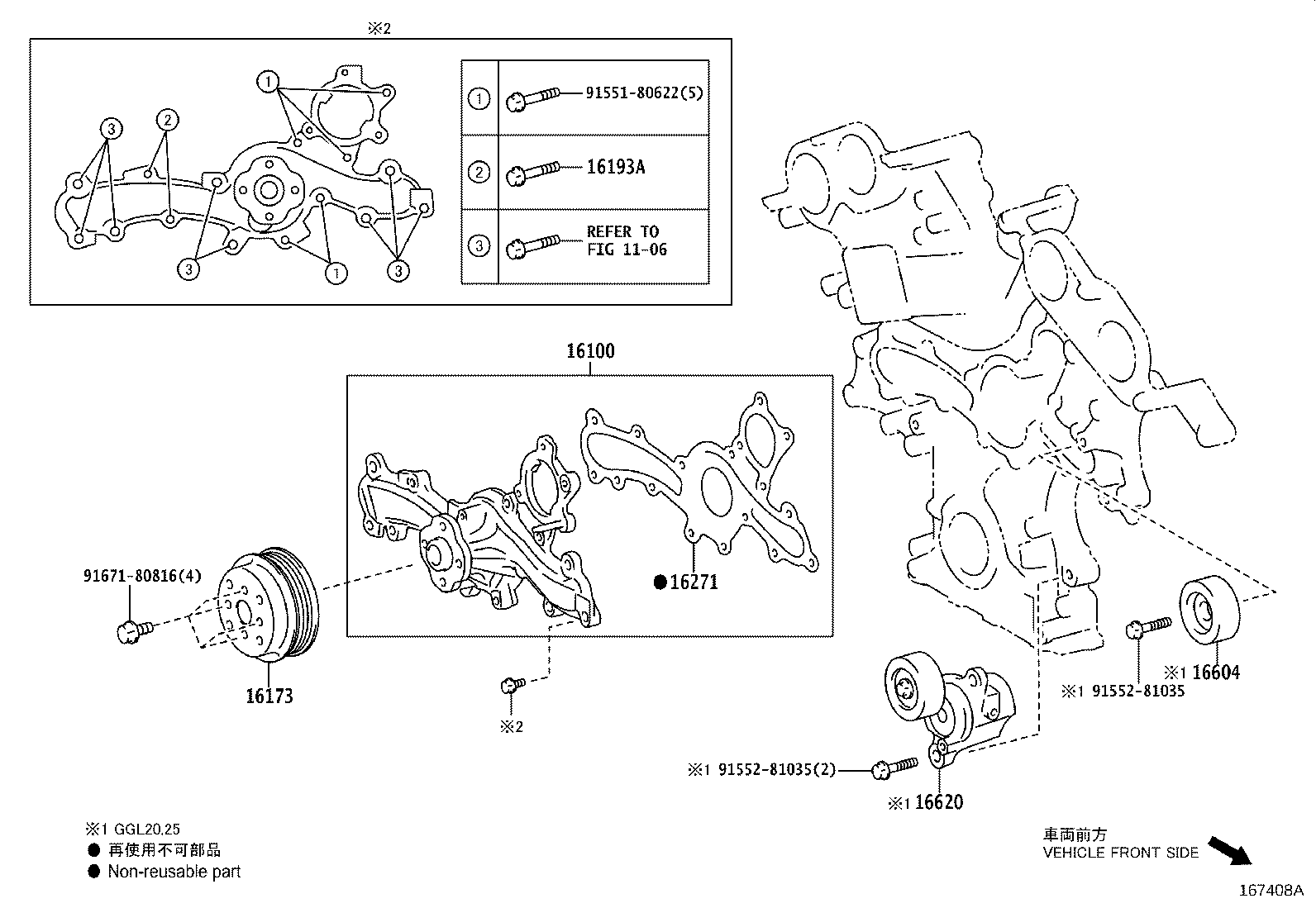

Figure 167408A

167408A 2015-09 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
