Toyota Lexus RX Series
2015-09 → 2022-09 · chassis AGL2#,GGL2#,GYL25 · catalogue 521350 · General
Supported model
Data version 2023-09

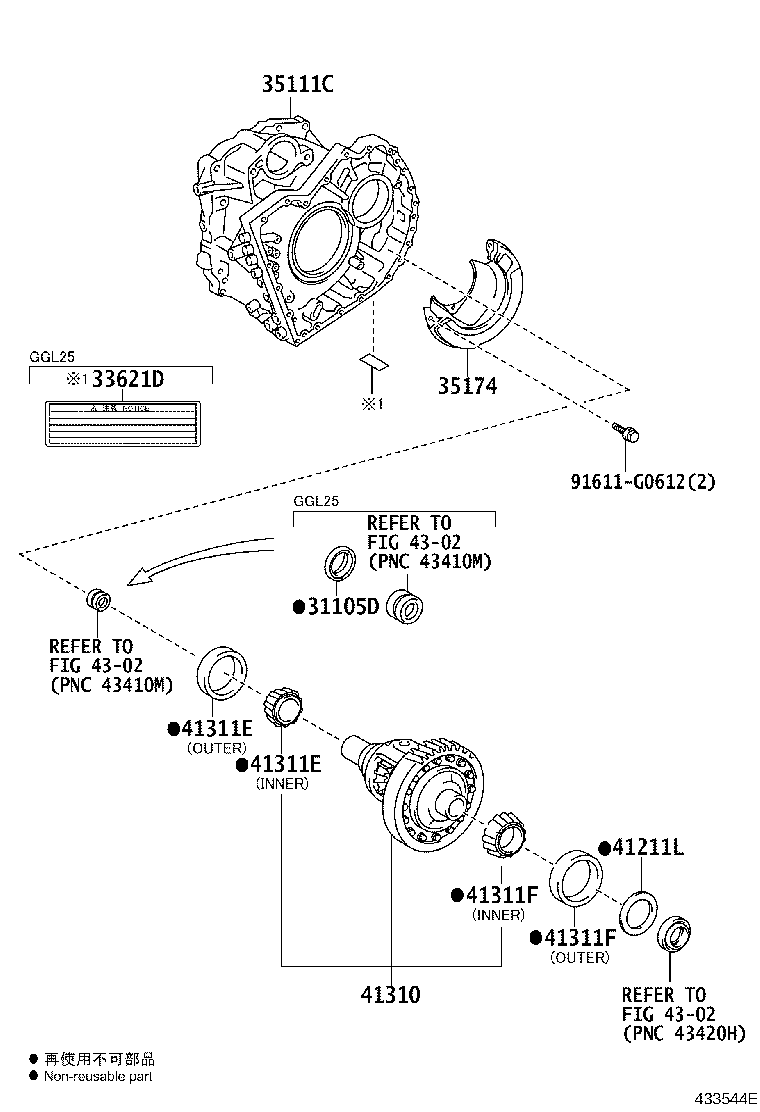

Front Axle Housing & Differential
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105D | Seal, Oil, NO.1(FOR FRONT TRANSAXLE CASE) |
| 33621D | Label, Transaxle Oil Information |
| 33621K | Label, Transaxle Oil Notice |
| 35111C | Housing, Transaxle |
| 35174 | Separator, Transaxle Housing Oil |
| 35783R | Gear, Counter Driven |
| 41039A | Gear Kit, Differential |
| 41211J | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION RH) |
| 41211K | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION LH) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41221 | Gear, Front Differential Ring |
| 41222B | Bolt (FOR FRONT DIFFERENTIAL RING GEAR SET) |
| 41310 | Case Assy, Differential |
| 41311 | Case, Front Differential |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41361G | Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
