Toyota Lexus RX Series

2015-09 → 2022-09 · chassis AGL2#,GGL2#,GYL25 · catalogue 521350 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 2 illustrations

Illustrations

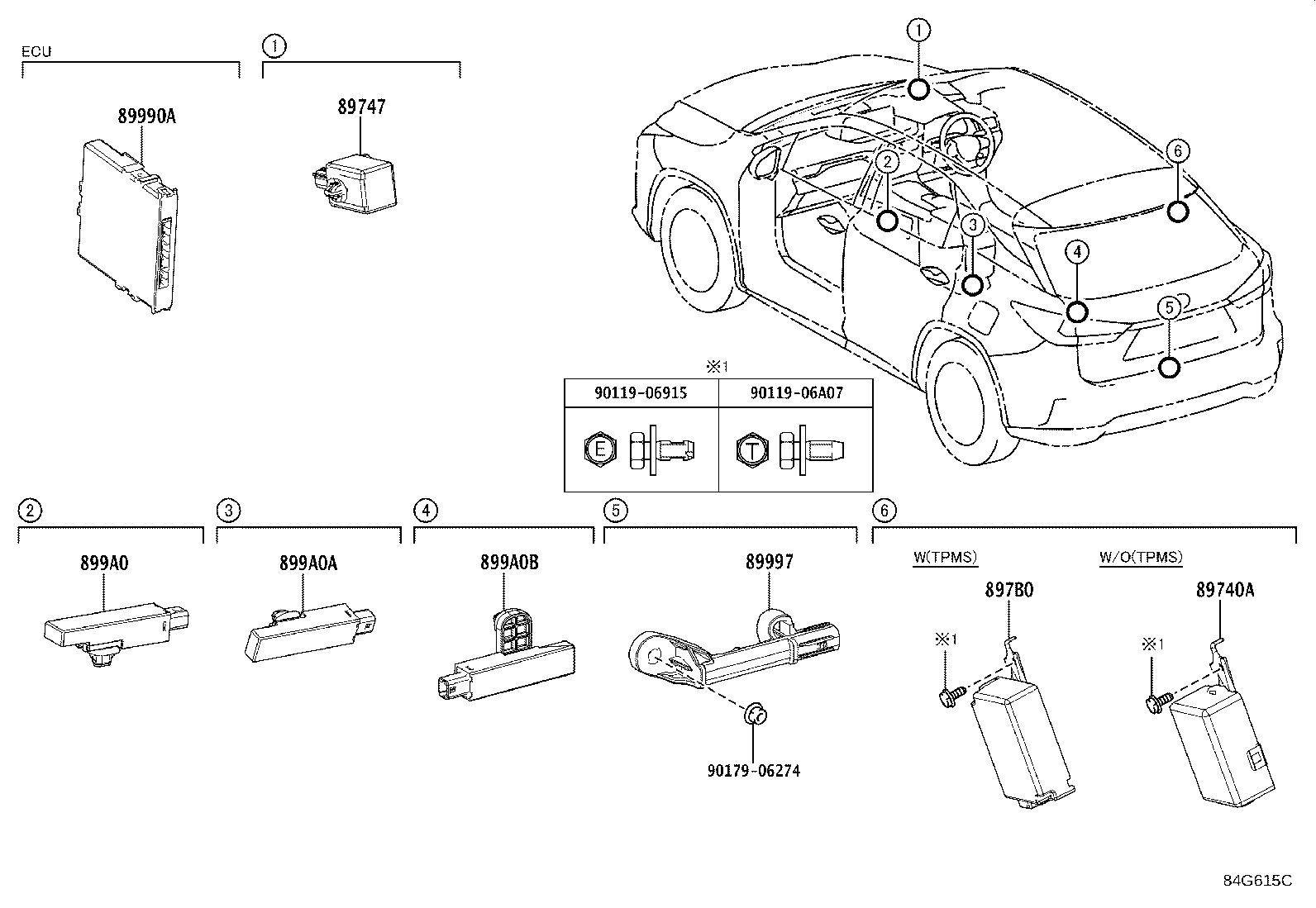

Figure 84G614D 84G614D 2015-09 → — Figure 84G615C 84G615C 2015-09 → —

Part groups

PNCDescription
65358 Tape, Floor Board Cover
89740A Receiver Assy, Smart Door Control
89747 Buzzer, Wireless Door Lock
897B0 Receiver Assy, Electrical Key & Tpms
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
